LR3 (LA) V8-4394cc 4.4L (2005)

Page 1
background image

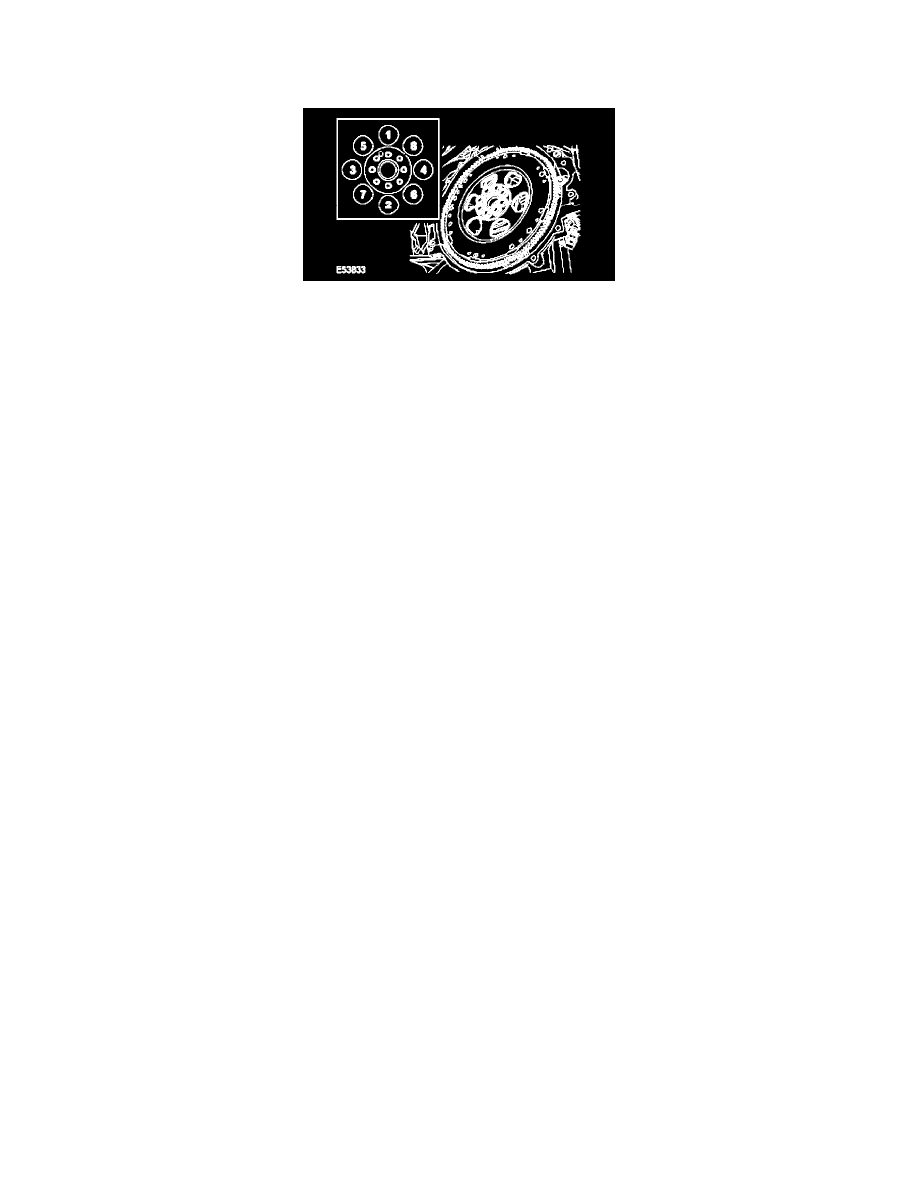

Flex Plate: Specifications

Torque Specifications

Tighten the bolts to ................................................................................................................................................................................... 15 Nm (11 ft. lbs.).
Tighten the bolts to ................................................................................................................................................................................. 110 Nm (81 ft. lbs.).
