TRANSFER BOX

2

OVERHAUL

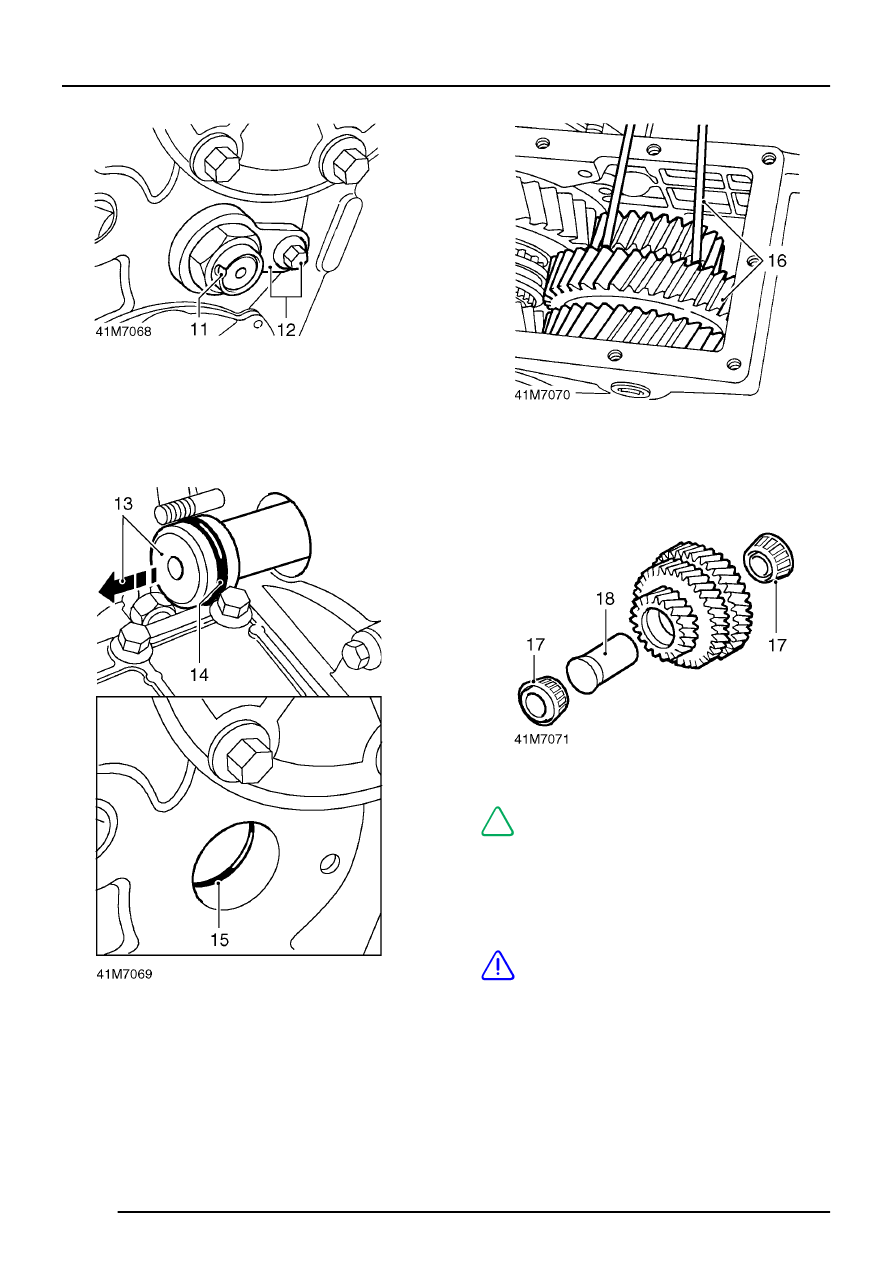

11. Release staking from intermediate shaft nut,

remove and discard nut.

12. Remove bolt securing anti-rotation plate,

remove plate.

13. Using a soft metal drift on threaded end of

intermediate shaft, drive shaft out of main
casing.

14. Remove and discard ’O’ ring from intermediate

shaft.

15. Remove and discard ’O’ ring from main casing.

16. Wrap a suitable length of wire around

intermediate gears and using assistance, lift
gears out of main casing.

NOTE: Collapsible spacer illustrated.

17. Remove and discard 2 taper roller bearings

from intermediate gears.

18. Remove and discard spacer from intermediate

gears.

CAUTION: Identify type of spacer fitted i.e.
collapsible or selective length
non-collapsible. Collapsible spacers can

be identified by deformation of the spacer having
occurred during setting of intermediate bearing
pre-load. Collapsible spacers must be replaced
by selective length non-collapsible spacers. Do
not fit collapsible spacers, in place of selective
length spacers. Do not remove bearing tracks at
this stage.
