Automatic gearbox – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Automatic gearbox – circuit diagram
Automatic gearboxAutomatic gearbox – circuit diagram

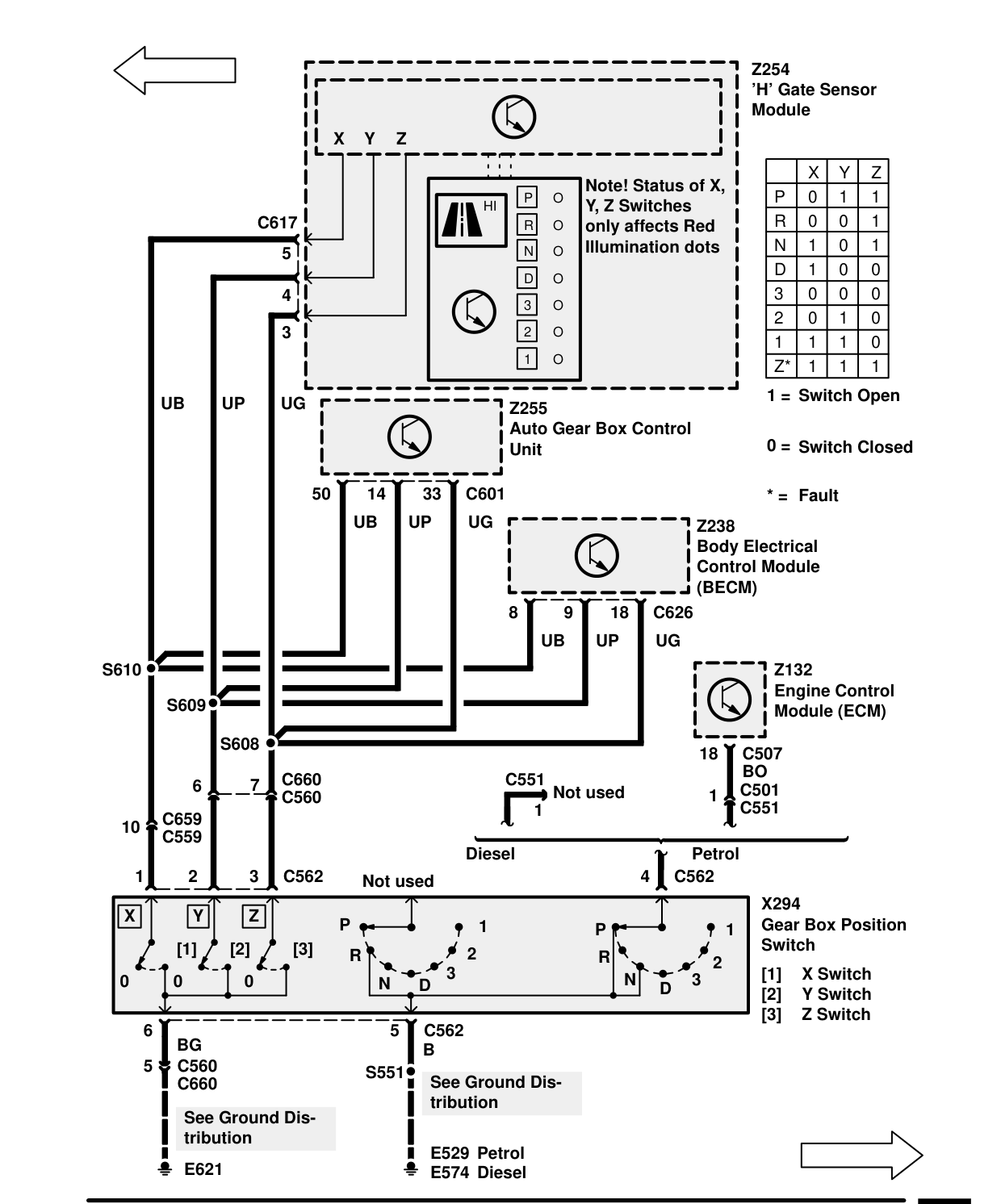

AUTOMATIC GEARBOX – CIRCUIT DIAGRAM
Components on this page
- X294 Gear Box Position Switch
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM)
- Z255 Auto Gear Box Control Unit
