Ground distributionGround distribution – circuit diagram

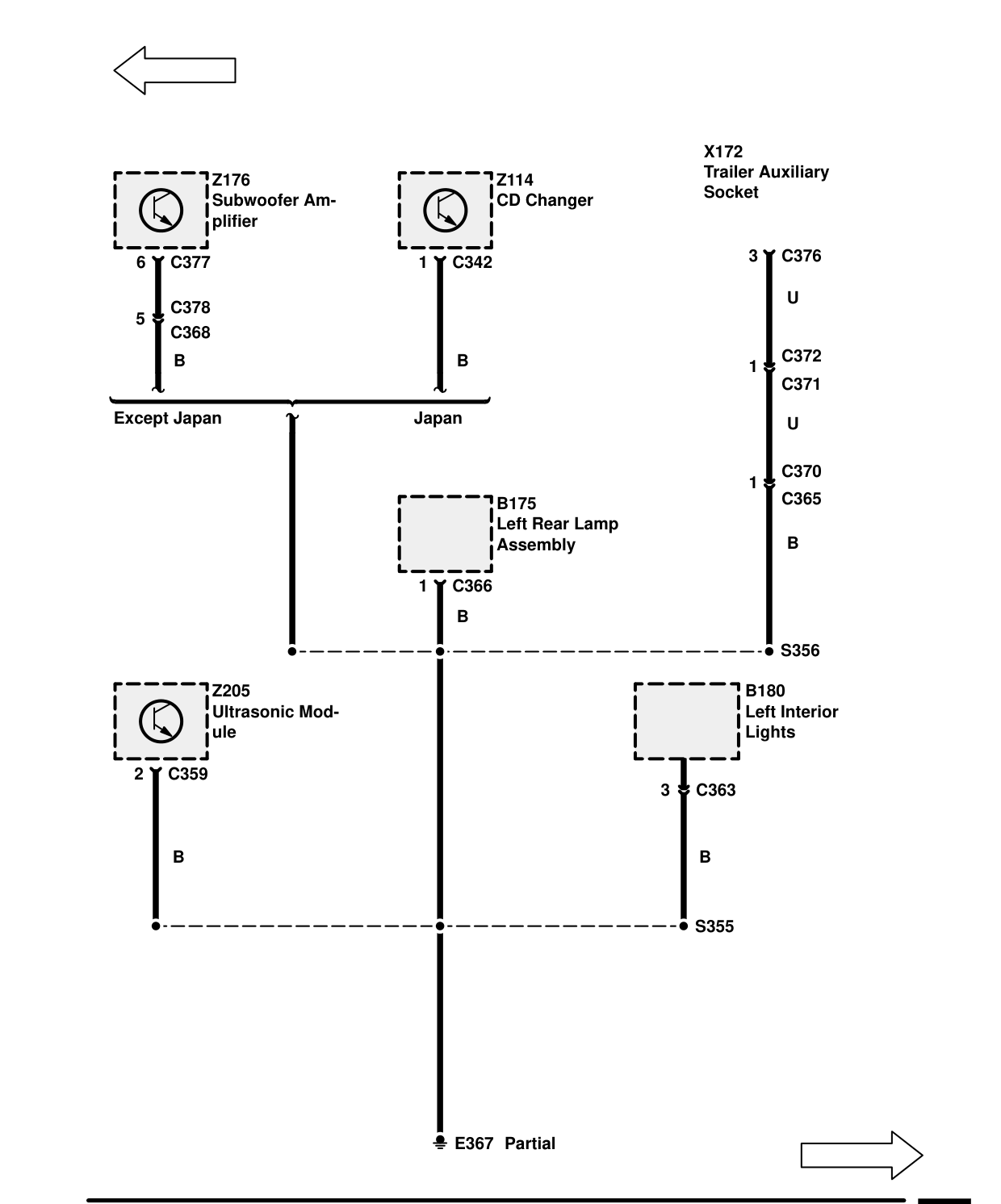

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B175 Left Rear Lamp Assembly
- B180 Left Interior Lights
- E367 Partial
- X172 Trailer Auxiliary Socket
- Z114 CD Changer
- Z176 Subwoofer Amplifier
- Z205 Ultrasonic Module
