Ground distribution – circuit diagram

Make

Land Rover

Model

Range Rover P38 Electrical Troubleshooting Manual

Year

1996

Section

Circuit diagram › Ground distribution – circuit diagram

Ground distributionGround distribution – circuit diagram

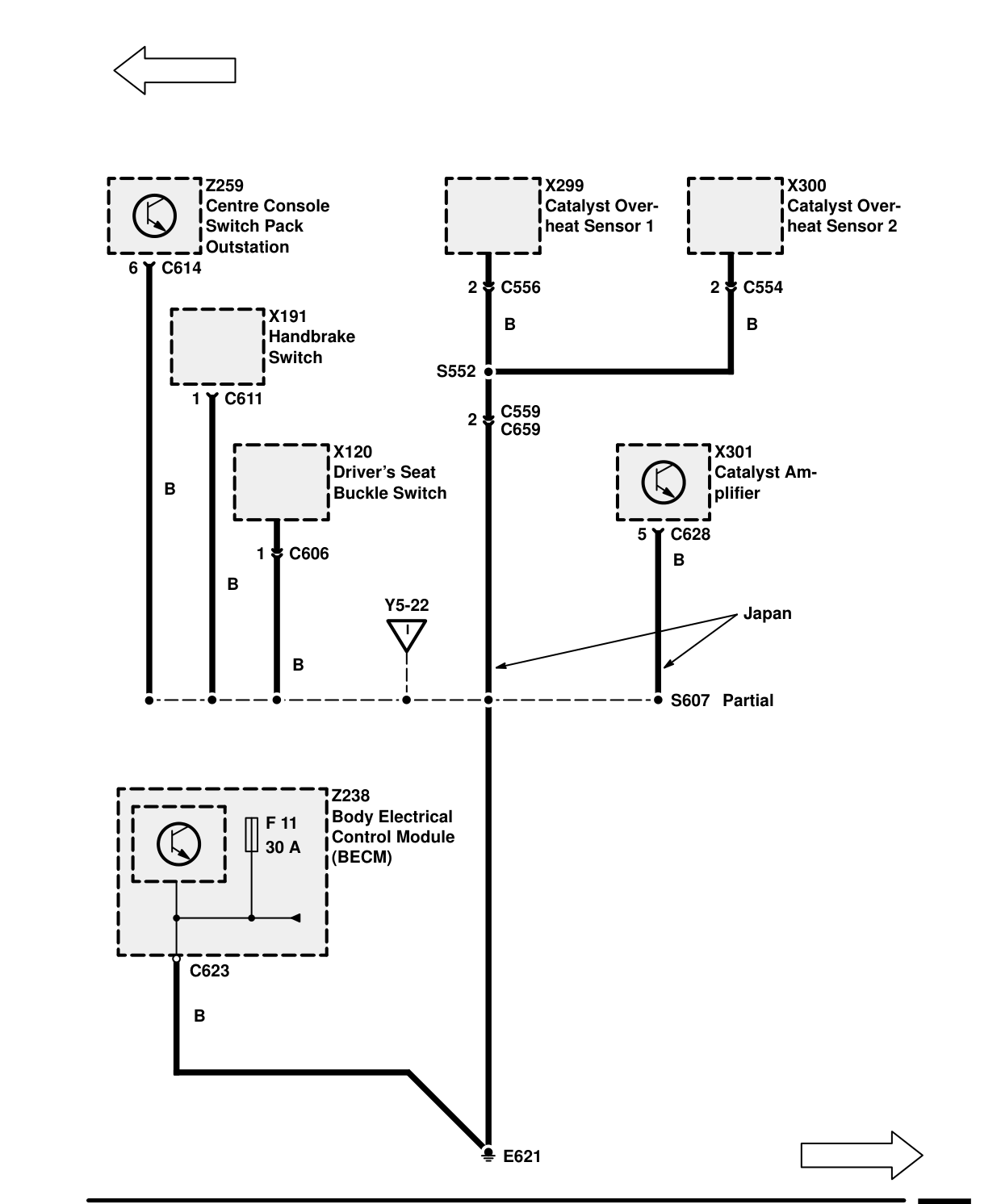

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Components on this page

• X120 Driver’s Seat Buckle Switch
• X191 Handbrake Switch
• X299 Catalyst Overheat Sensor 1
• X300 Catalyst Overheat Sensor 2
• X301 Catalyst Amplifier
• Z238 Body Electrical Control Module (BECM)
• Z259 Centre Console Switch Pack Outstation C614 6

41 General
