Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Ground distribution – circuit diagram
Ground distributionGround distribution – circuit diagram

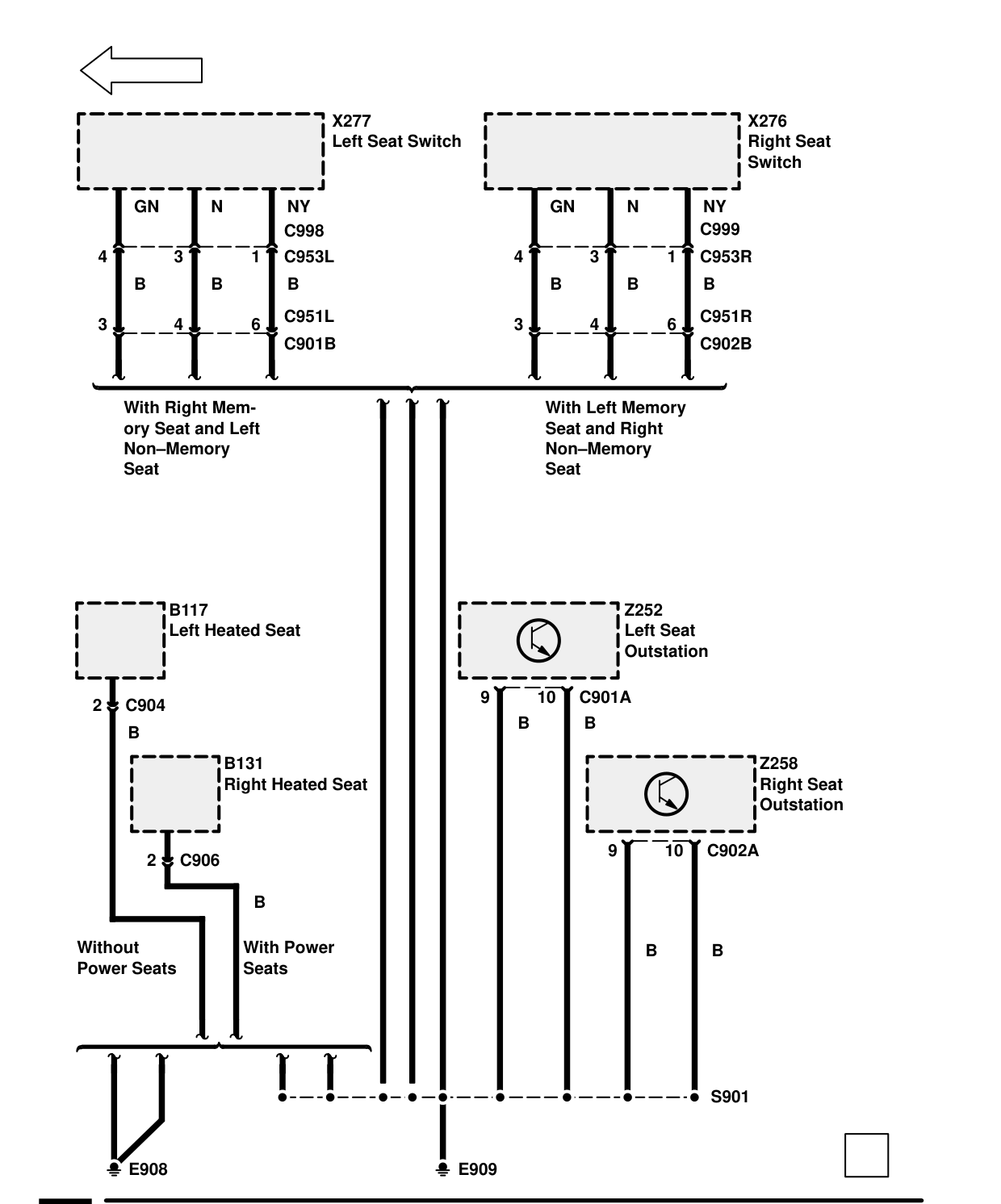

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B117 Left Heated Seat
- B131 Right Heated Seat
- X276 Right Seat Switch
- X277 Left Seat Switch
- Z252 Left Seat Outstation
- Z258 Right Seat Outstation
