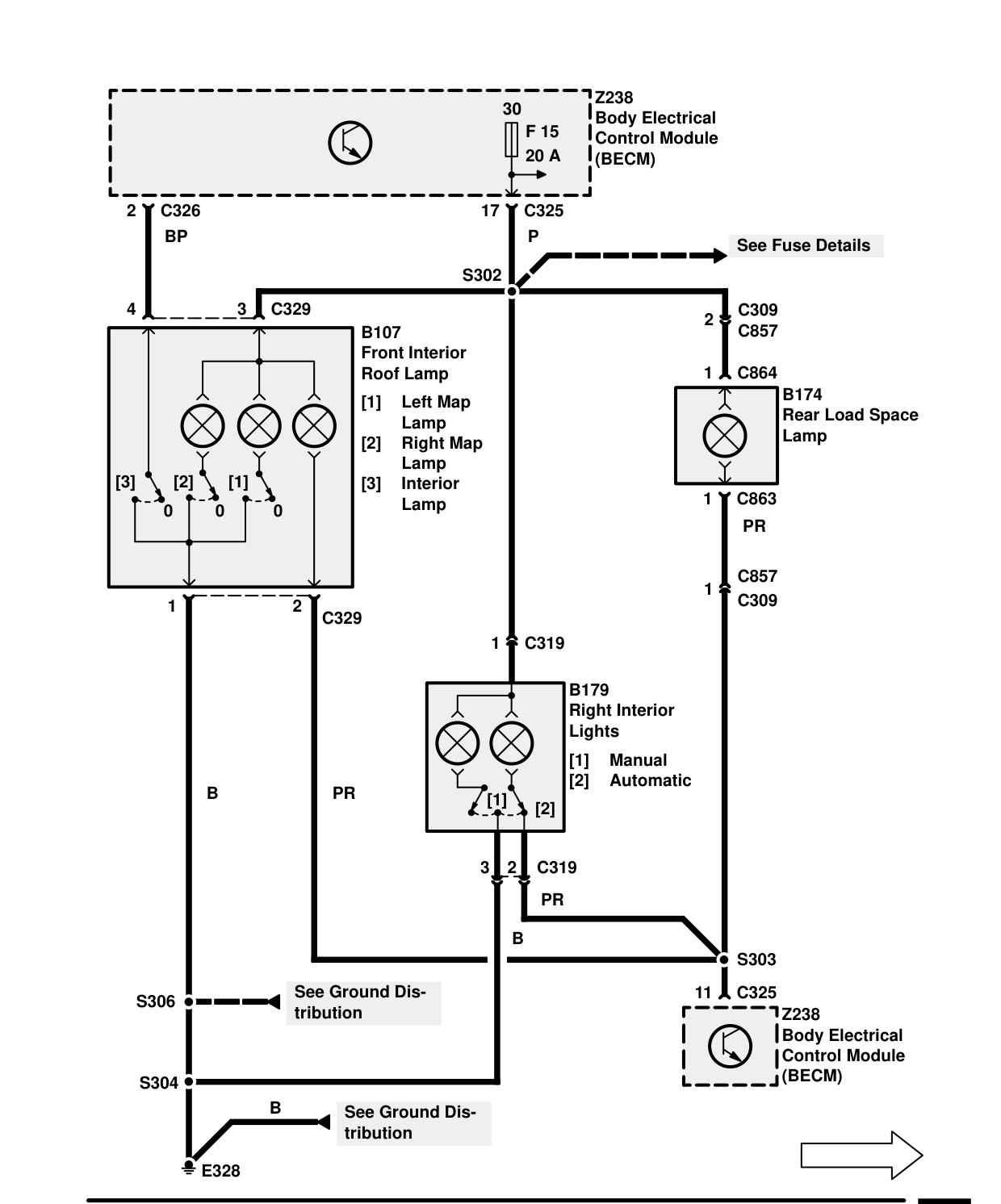

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • B107 Front Interior Roof Lamp
  • B174 Rear Load Space Lamp
  • B179 Right Interior Lights
  • Z238 Body Electrical Control Module (BECM)
