Land Rover Range Rover P38 Electrical Troubleshooting Manual (1996)25 · Interior lamps
25 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1996
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

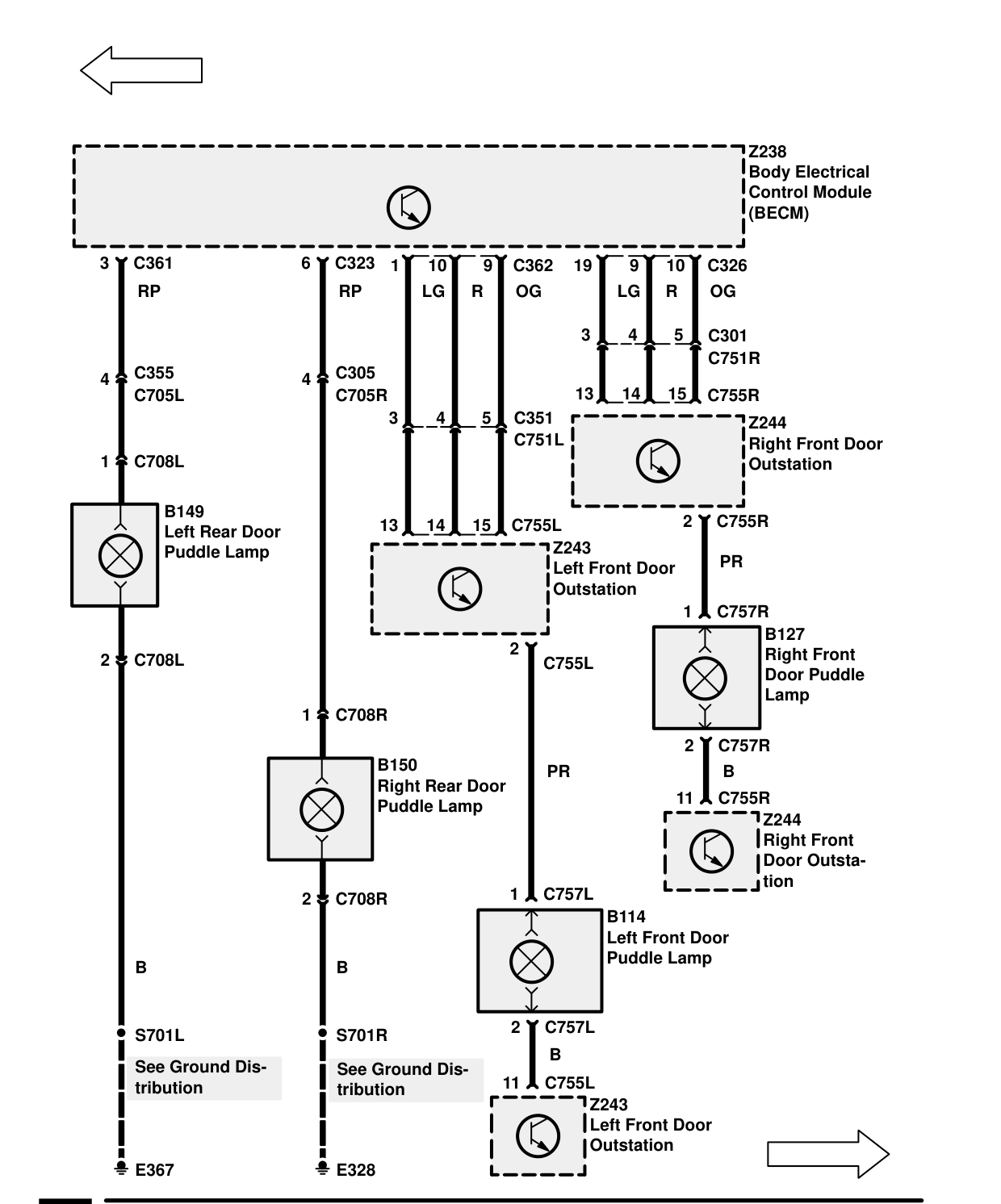

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • B114 Left Front Door Puddle Lamp
  • B127 Right Front Door Puddle Lamp
  • B149 Left Rear Door Puddle Lamp
  • B150 Right Rear Door Puddle Lamp
  • Z238 Body Electrical Control Module (BECM)
  • Z243 Left Front Door Outstation
  • Z244 Right Front Door Outstation
