Land Rover Range Rover P38 Electrical Troubleshooting Manual (1996)25 · Interior lamps
25 · Body & interior

Interior lamps – circuit diagram

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1996
Section
Circuit diagram › Interior lamps – circuit diagram
Interior lampsInterior lamps – circuit diagram

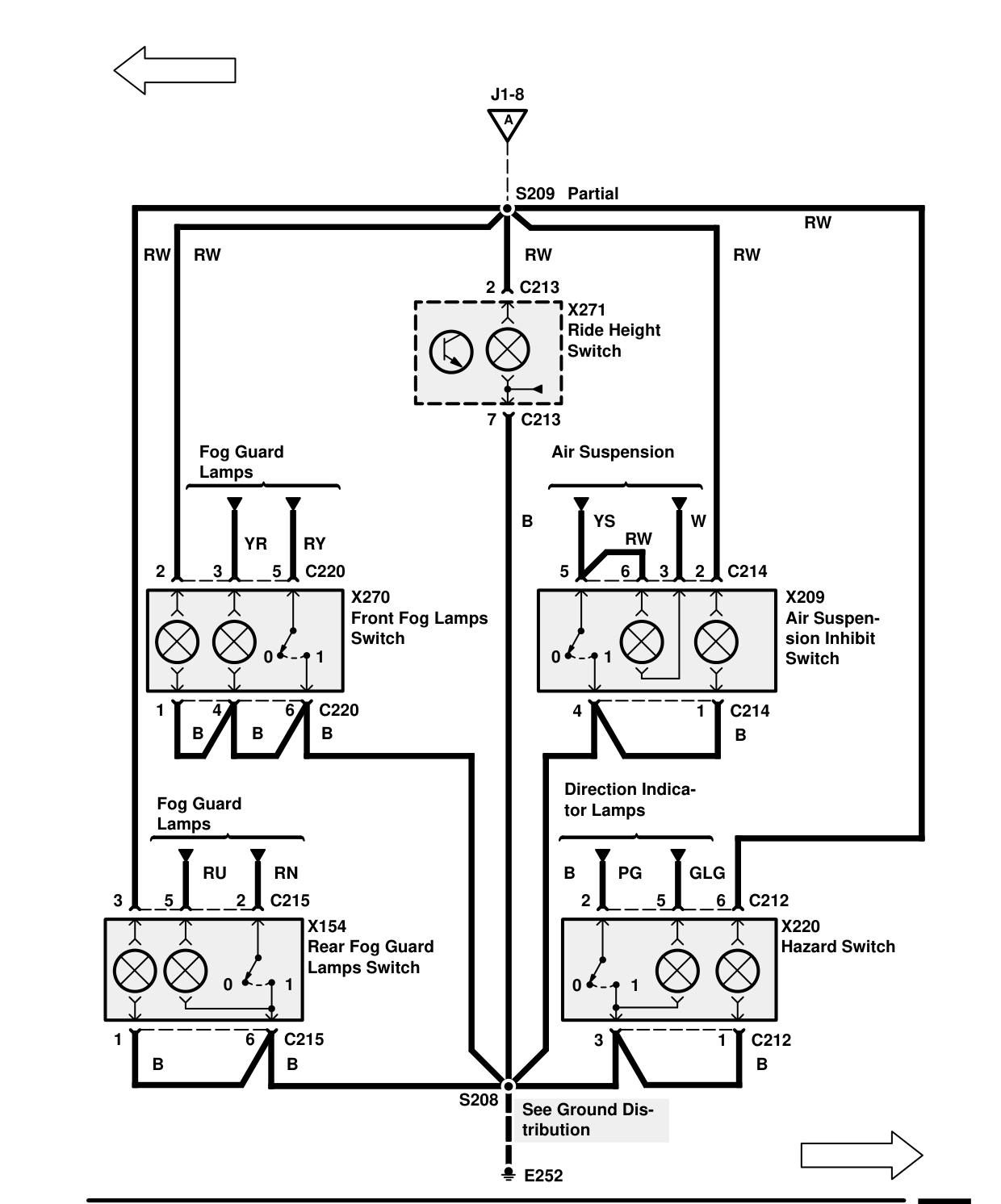

INTERIOR LAMPS – CIRCUIT DIAGRAM

Interior Lamps – Circuit Diagram

Components on this page

  • S209 Partial
  • X154 Rear Fog Guard Lamps Switch
  • X209 Air Suspension Inhibit Switch
  • X220 Hazard Switch
  • X270 Front Fog Lamps Switch
  • X271 Ride Height Switch
