Memory mirrors – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Memory mirrors – circuit diagram
Memory mirrorsMemory mirrors – circuit diagram

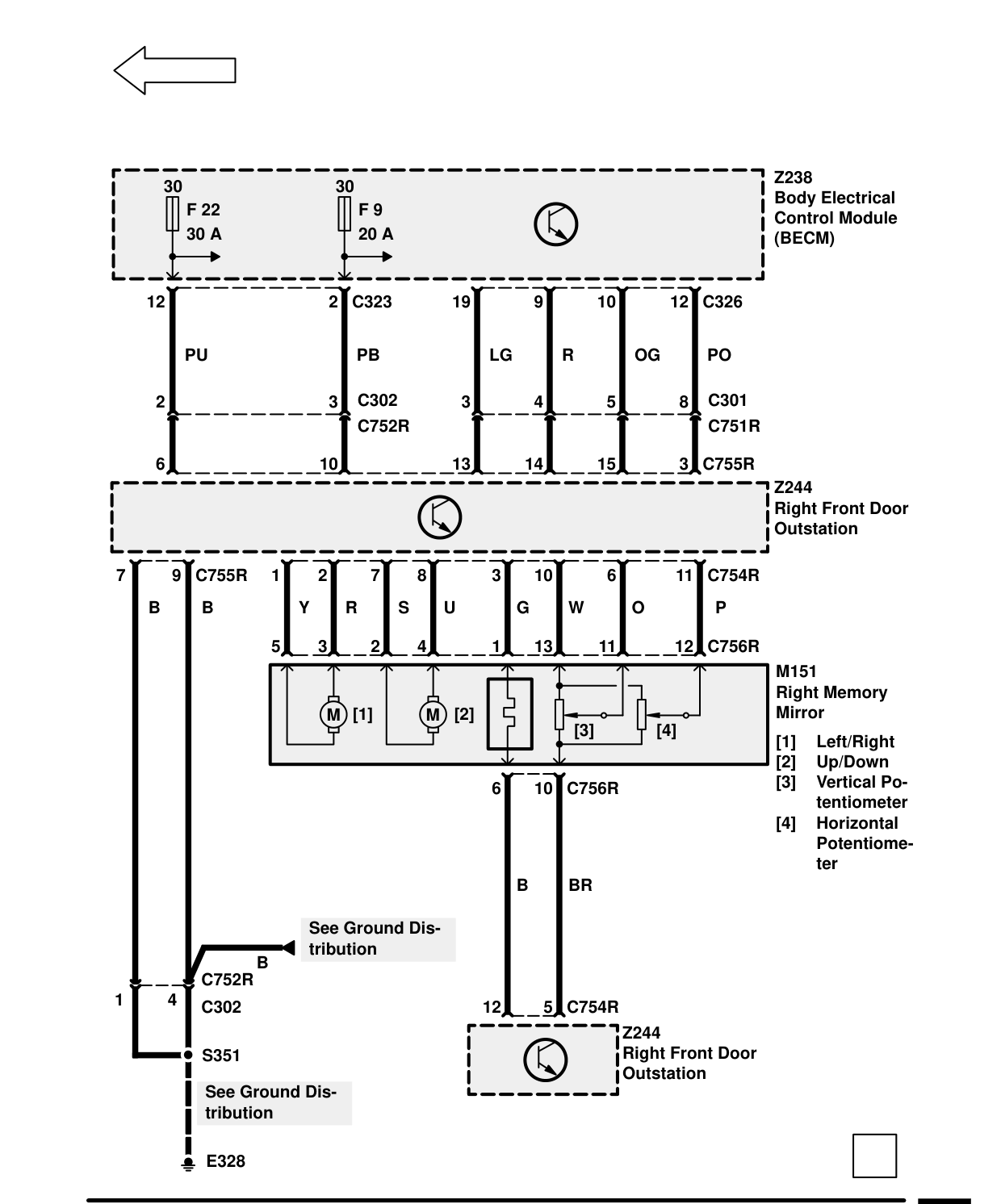

MEMORY MIRRORS – CIRCUIT DIAGRAM
Components on this page
- M151 Right Memory Mirror
- Z238 Body Electrical Control Module (BECM)
- Z244 Right Front Door Outstation
