Diesel – circuit diagram rev: 07/98

Make

Land Rover

Model

Range Rover P38 Electrical Troubleshooting Manual

Year

1997–1999

Section

Circuit diagram rev: 07/98 › Diesel – circuit diagram rev: 07/98

DieselDiesel – circuit diagram rev: 07/98

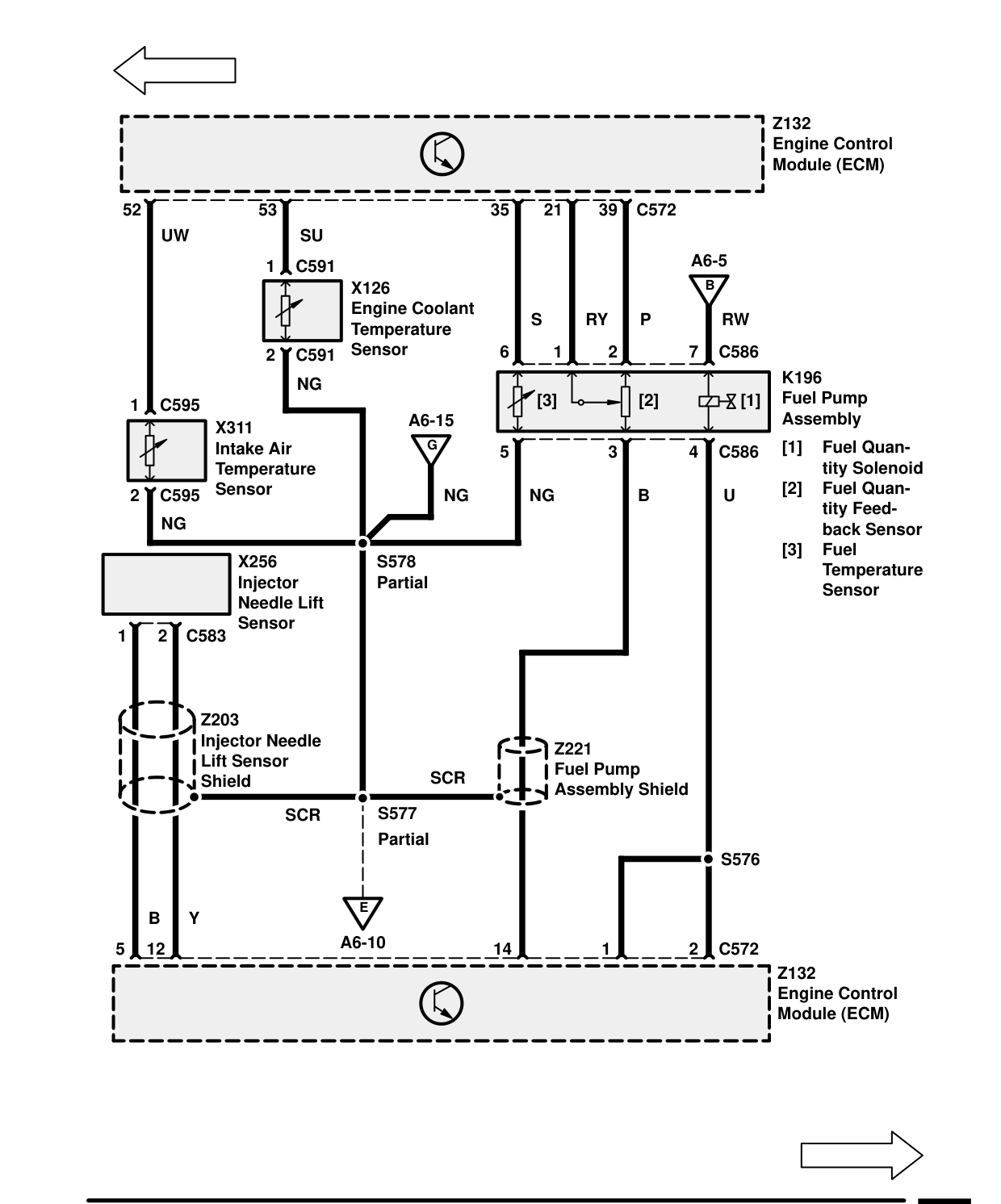

DIESEL – CIRCUIT DIAGRAM REV: 07/98

Components on this page

• K196 Fuel Pump Assembly
• X126 Engine Coolant Temperature Sensor
• X256 Injector Needle Lift Sensor
• X311 Intake Air Temperature Sensor
• Z132 Engine Control Module (ECM)
• Z203 Injector Needle Lift Sensor Shield
• Z221 Fuel Pump Assembly Shield
