Fuse details – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Circuit diagram › Fuse details – circuit diagram
Fuse detailsFuse details – circuit diagram

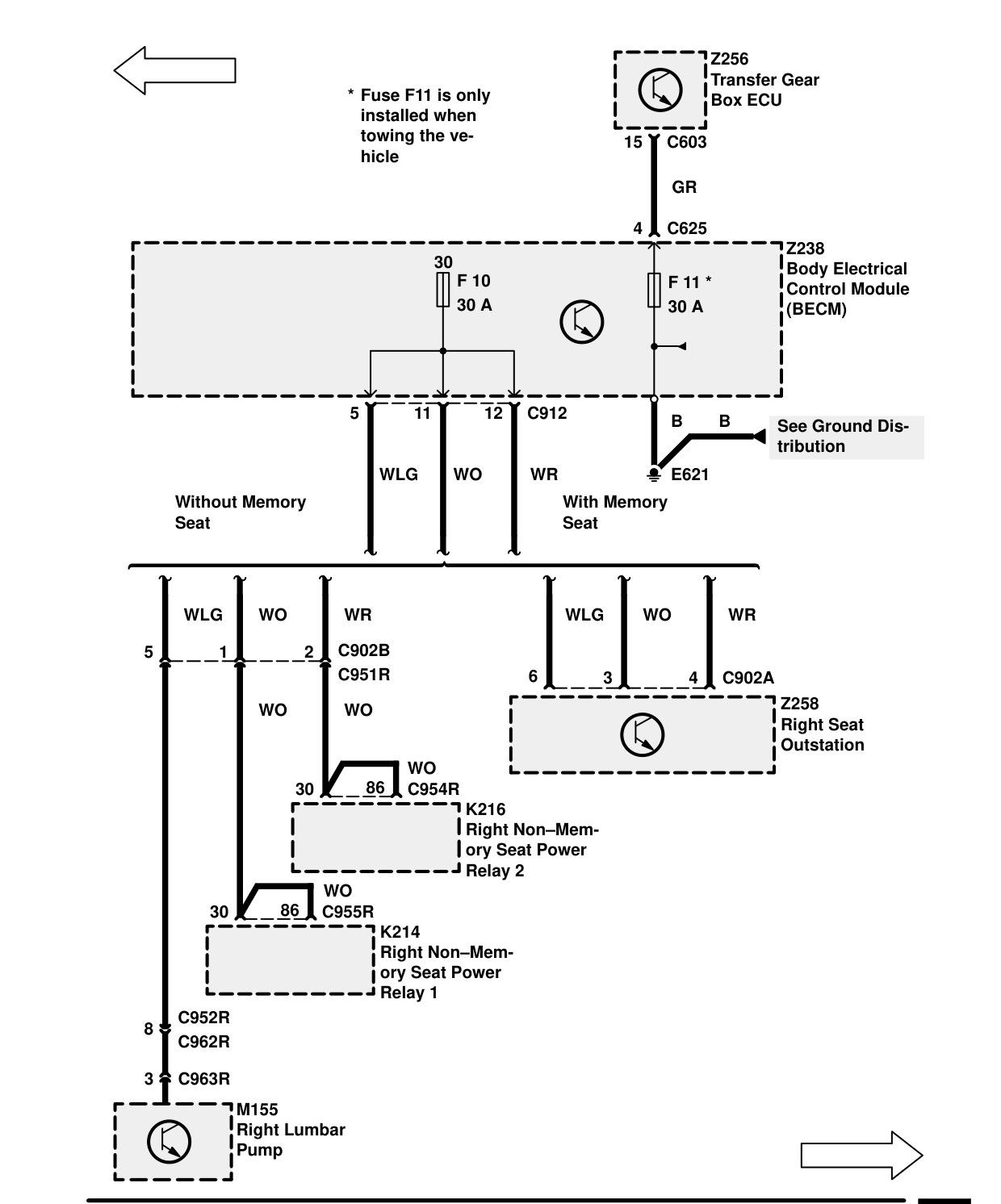

FUSE DETAILS – CIRCUIT DIAGRAM
Components on this page
- K214 Right Non-Memory Seat Power Relay 1
- K216 Right Non-Memory Seat Power Relay 2
- M155 Right Lumbar Pump
- Z238 Body Electrical Control Module (BECM)
- Z256 Transfer Gear Box ECU
- Z258 Right Seat Outstation
