Ground distribution – circuit diagram rev: 02/98
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Circuit diagram rev: 02/98 › Ground distribution – circuit diagram rev: 02/98

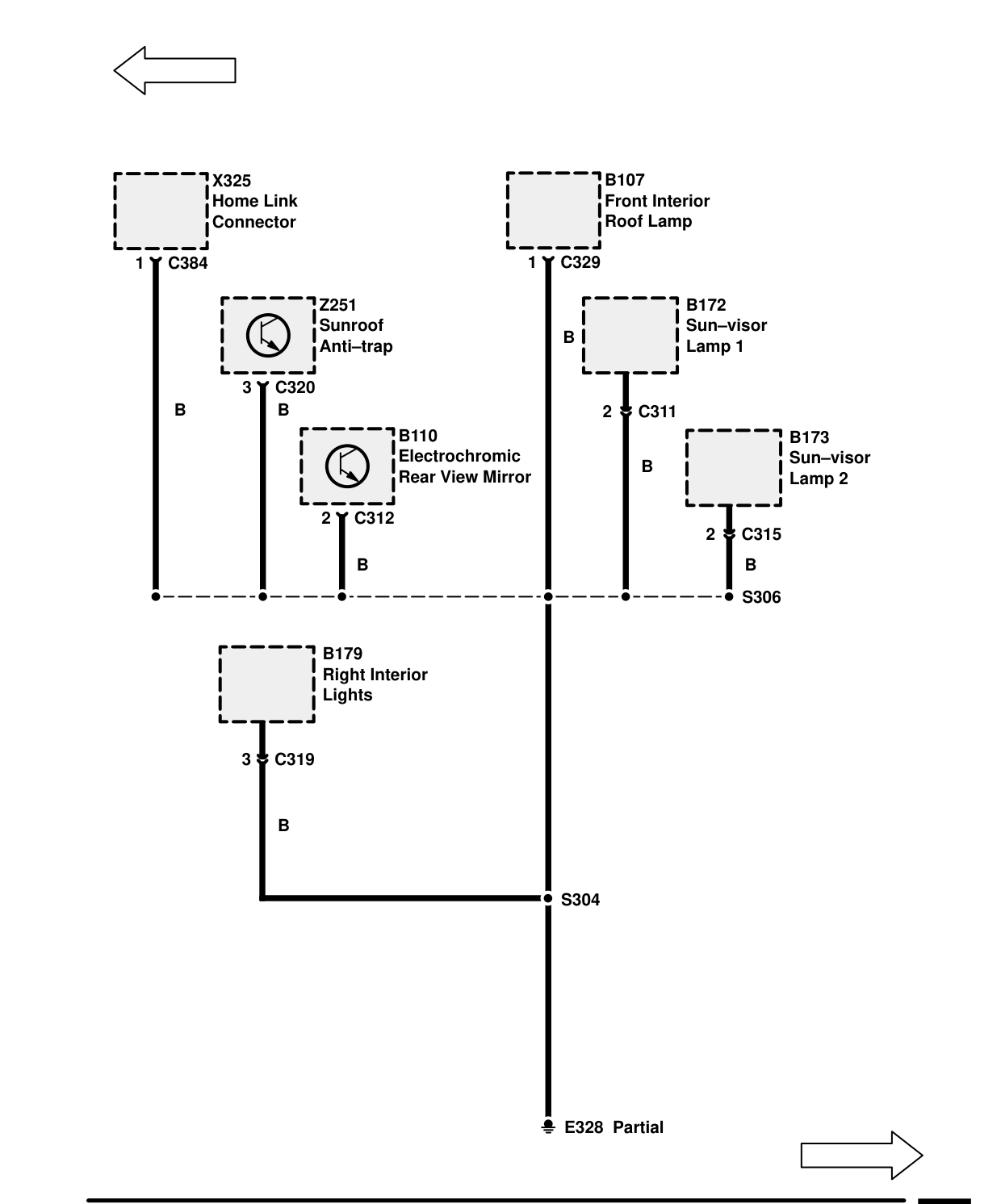

Ground distributionGround distribution – circuit diagram rev: 02/98
GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 02/98
Components on this page
- B107 Front Interior Roof Lamp
- B110 Electrochromic Rear View Mirror
- B172 Sun-visor Lamp 1
- B173 Sun-visor Lamp 2
- B179 Right Interior Lights
- X325 Home Link Connector
- Z251 Sunroof Anti-trap
