Ground distribution – circuit diagram rev: 07/98

Make

Land Rover

Model

Range Rover P38 Electrical Troubleshooting Manual

Year

1997–1999

Section

Circuit diagram rev: 07/98 › Ground distribution – circuit diagram rev: 07/98

Ground distributionGround distribution – circuit diagram rev: 07/98

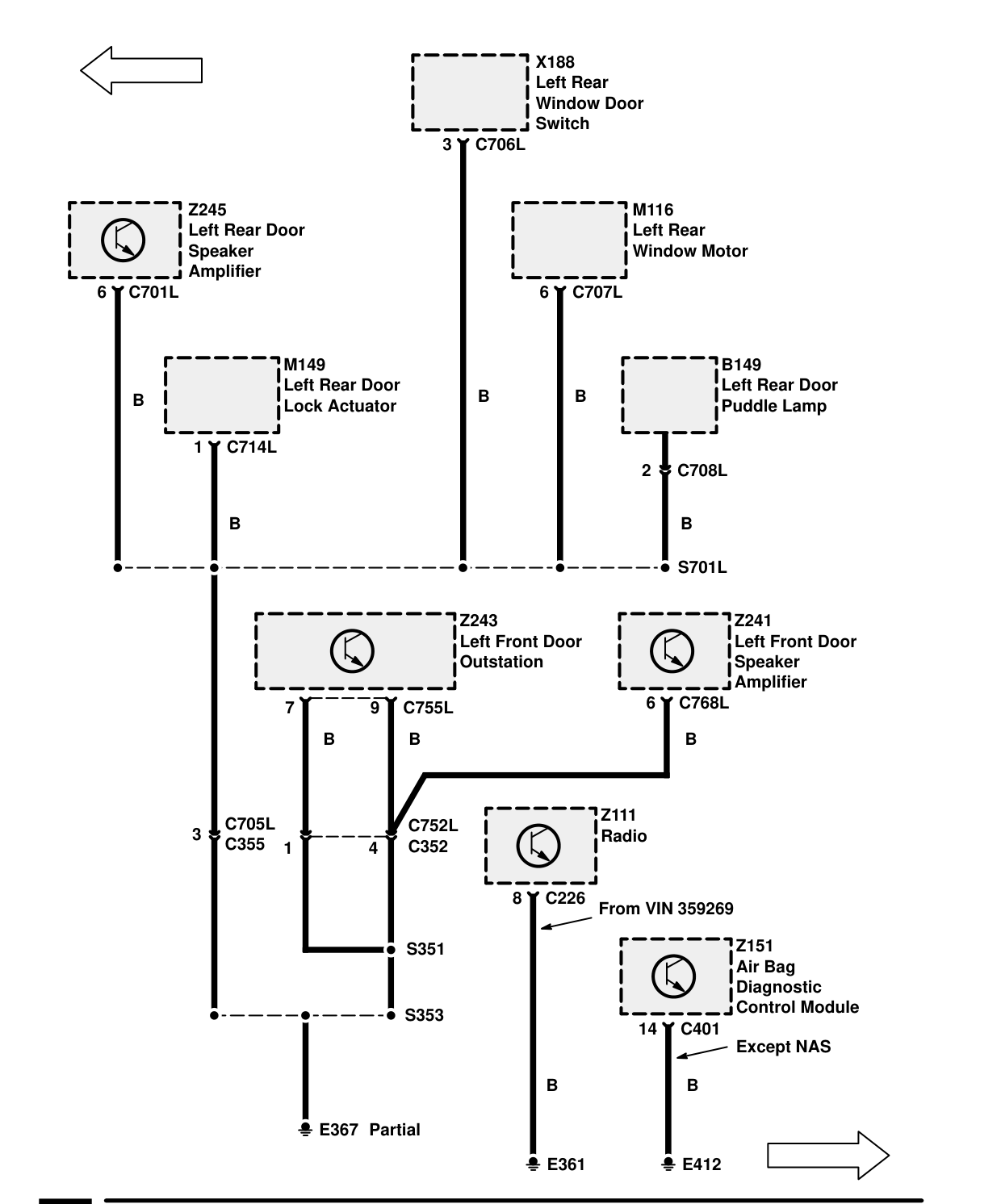

GROUND DISTRIBUTION – CIRCUIT DIAGRAM REV: 07/98

Components on this page

• B149 Left Rear Door Puddle Lamp
• E367 Partial
• M116 Left Rear Window Motor
• M149 Left Rear Door Lock Actuator
• S351 Z151 Air Bag Diagnostic Control Module C401 14
• X188 Left Rear Window Door Switch C706L 3
• Z111 Radio
• Z241 Left Front Door Speaker Amplifier C768L 6 C755L 9
• Z243 Left Front Door Outstation
• Z245 Left Rear Door Speaker Amplifier C701L 6
