Land Rover Range Rover P38 Electrical Troubleshooting Manual (1997-1999)21 · Side lamps
21 · General

Side lamps – circuit diagram

Make
Land Rover
Model
Range Rover P38 Electrical Troubleshooting Manual
Year
1997–1999
Section
Circuit diagram › Side lamps – circuit diagram
Side lampsSide lamps – circuit diagram

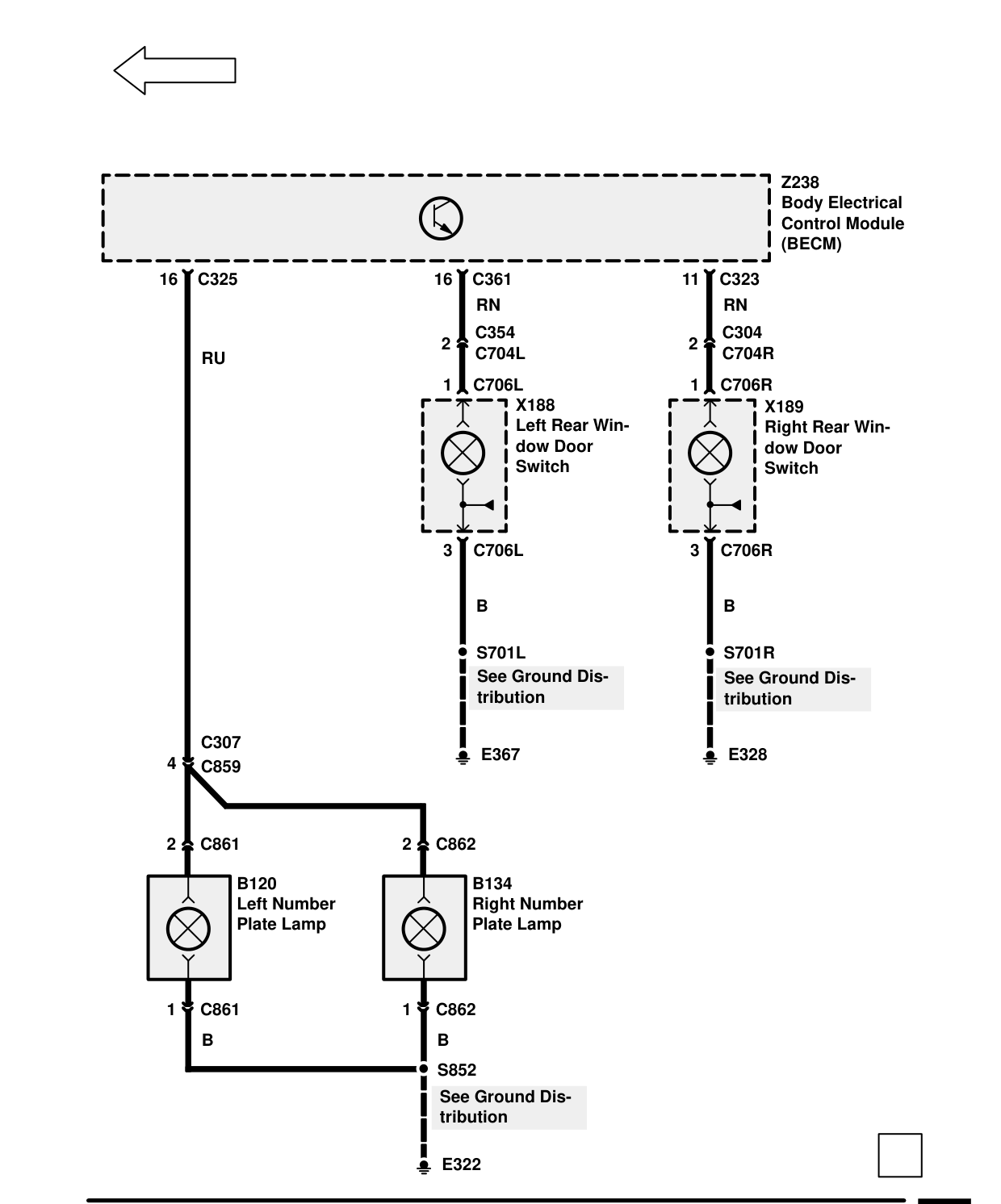

SIDE LAMPS – CIRCUIT DIAGRAM

Side Lamps – Circuit Diagram

Components on this page

  • B120 Left Number Plate Lamp
  • B134 Right Number Plate Lamp
  • X188 Left Rear Window Door Switch
  • X189 Right Rear Window Door Switch
  • Z238 Body Electrical Control Module (BECM)
