Transfer gearbox – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Circuit diagram › Transfer gearbox – circuit diagram
Transfer gearboxTransfer gearbox – circuit diagram

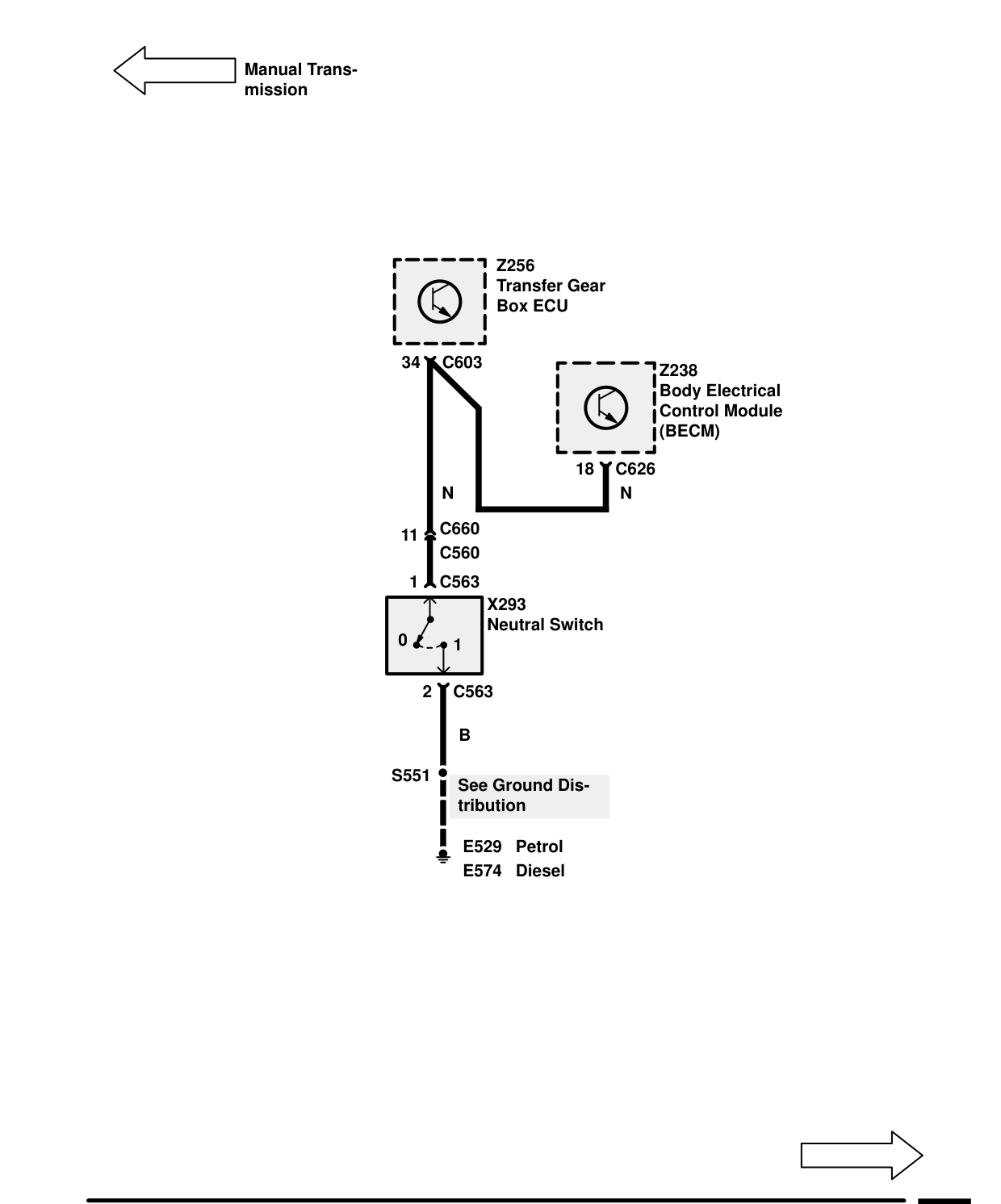

TRANSFER GEARBOX – CIRCUIT DIAGRAM
Components on this page
- X293 Neutral Switch
- Z238 Body Electrical Control Module (BECM)
- Z256 Transfer Gear Box ECU
