Warnings and indicatorsWarnings and indicators – circuit diagram

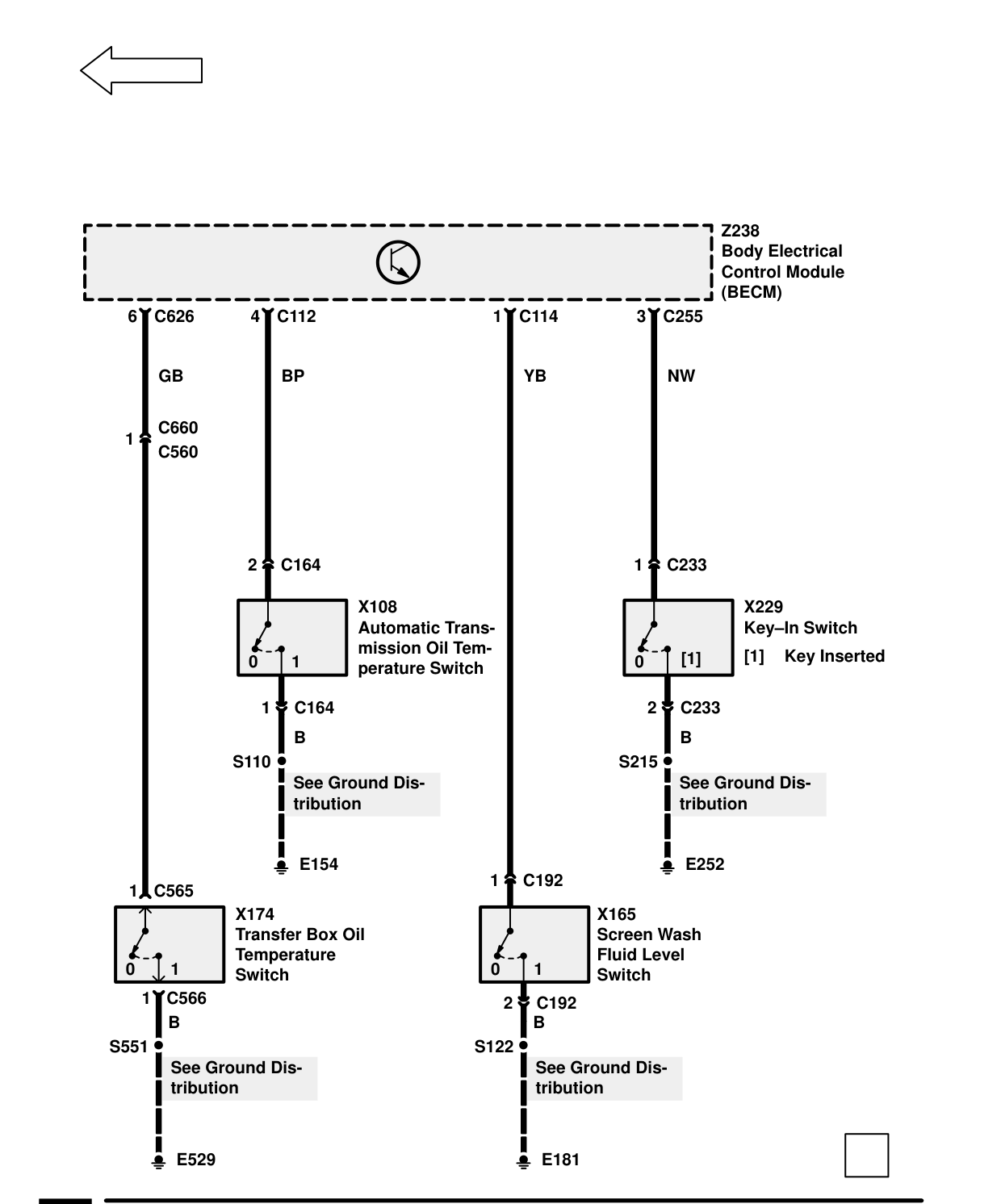

WARNINGS AND INDICATORS – CIRCUIT DIAGRAM
Components on this page
- X108 Automatic Transmission Oil Temperature Switch 0 1
- X165 Screen Wash Fluid Level Switch 0 1
- X174 Transfer Box Oil Temperature Switch 0 1
- X229 Key-In Switch
- Z238 Body Electrical Control Module (BECM)
