Range Rover P38
SEATS
15
REPAIR
Manual seat
Electric seat

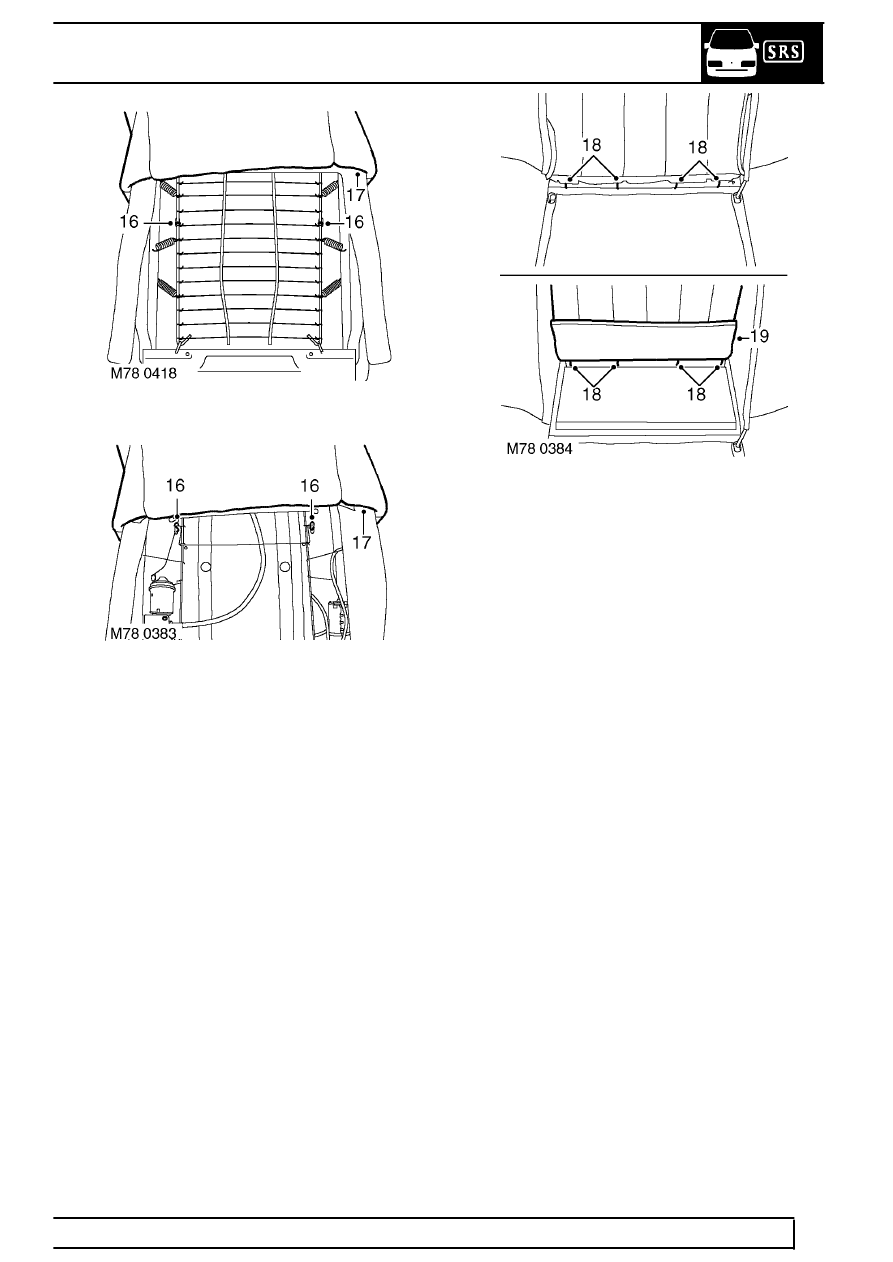

16. Release shock cords from retention wire.
17. Release and remove cover and foam assembly.
Do not carry out further dismantling if cover
and foam is removed for access only.
18. Remove 8 hog rings securing cover to foam.
19. Remove cover from foam.
20. Remove 3 retention wires and 2 shock cords
from cover.
Refit
21. Fit retention wires and shock cords to cover.
22. Fit cover to foam, align retainers and fit hog
rings.
23. Fit cover and foam assembly to frame.
24. Connect and secure shock cords to cross wire.
25. Align map pocket strap and fit studs.
26. Fit hog rings securing rear of cover for map
pocket.
27. Lower cover.
28. Secure shock cords to frame.
29. Pass harness through cover and connect
multiplug.
30. Align seat heating element harness and secure
harnesses with cable ties.
31. Secure SRS multiplug to bracket.
32. Secure front section cover retainer to frame and
fit clips.
33. Secure rear section cover retainer to frame and
fit clips.
34. Fit armrest escutcheon.
35. Fit armrest and position anti-rattle washer. Fit
and tighten bolt.
36. Fit headrest retainers and headrest.
37. Fit seat.
See this section.
