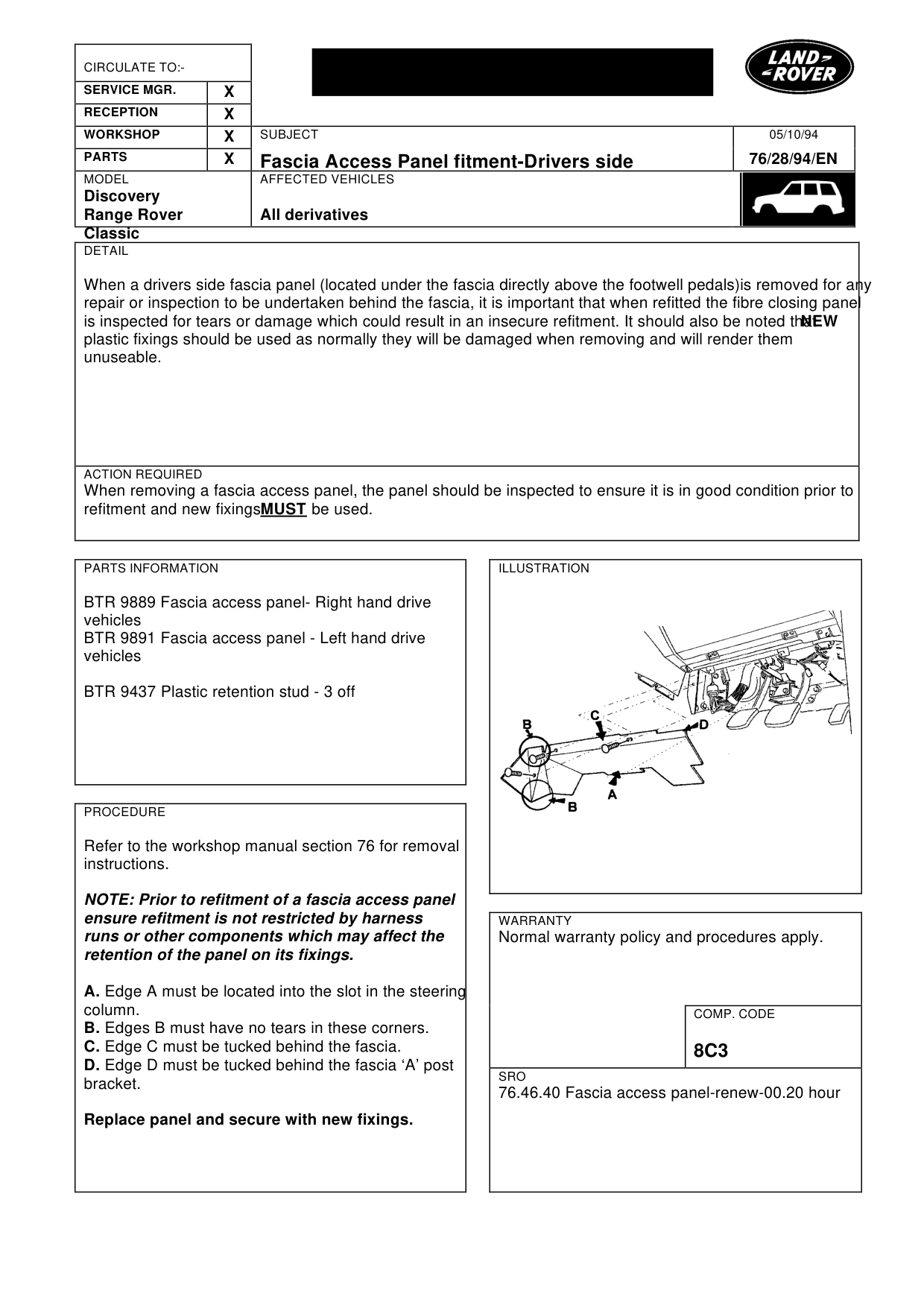

Fascia access panel fitment-drivers side

FASCIA ACCESS PANEL FITMENT-DRIVERS SIDE

Model

Discovery Range Rover Classic

Affected vehicles

All derivatives

Date

1994-10-05

Reference

05/10/94

Bulletin text

Fascia Access Panel fitment-Drivers side

MODEL AFFECTED VEHICLES

Discovery Range Rover All derivatives Classic

DETAIL

When a drivers side fascia panel (located under the fascia directly above the footwell pedals)is removed for any repair or inspection to be undertaken behind the fascia, it is important that when refitted the fibre closing panel is inspected for tears or damage which could result in an insecure refitment. It should also be noted that plastic fixings should be used as normally they will be damaged when removing and will render them unuseable.

ACTION REQUIRED

When removing a fascia access panel, the panel should be inspected to ensure it is in good condition prior to refitment and new fixings MUST be used.

PARTS INFORMATION

BTR 9889 Fascia access panel- Right hand drive vehicles BTR 9891 Fascia access panel - Left hand drive vehicles

BTR 9437 Plastic retention stud - 3 off

PROCEDURE

Refer to the workshop manual section 76 for removal instructions.

NOTE: Prior to refitment of a fascia access panel ensure refitment is not restricted by harness runs or other components which may affect the retention of the panel on its fixings.

A. Edge A must be located into the slot in the steering column. B. Edges B must have no tears in these corners. C. Edge C must be tucked behind the fascia. D. Edge D must be tucked behind the fascia ‘A’ post bracket.

Replace panel and secure with new fixings.

05/10/94

76/28/94/EN

NEW

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

8C3

SRO

76.46.40 Fascia access panel-renew-00.20 hour
