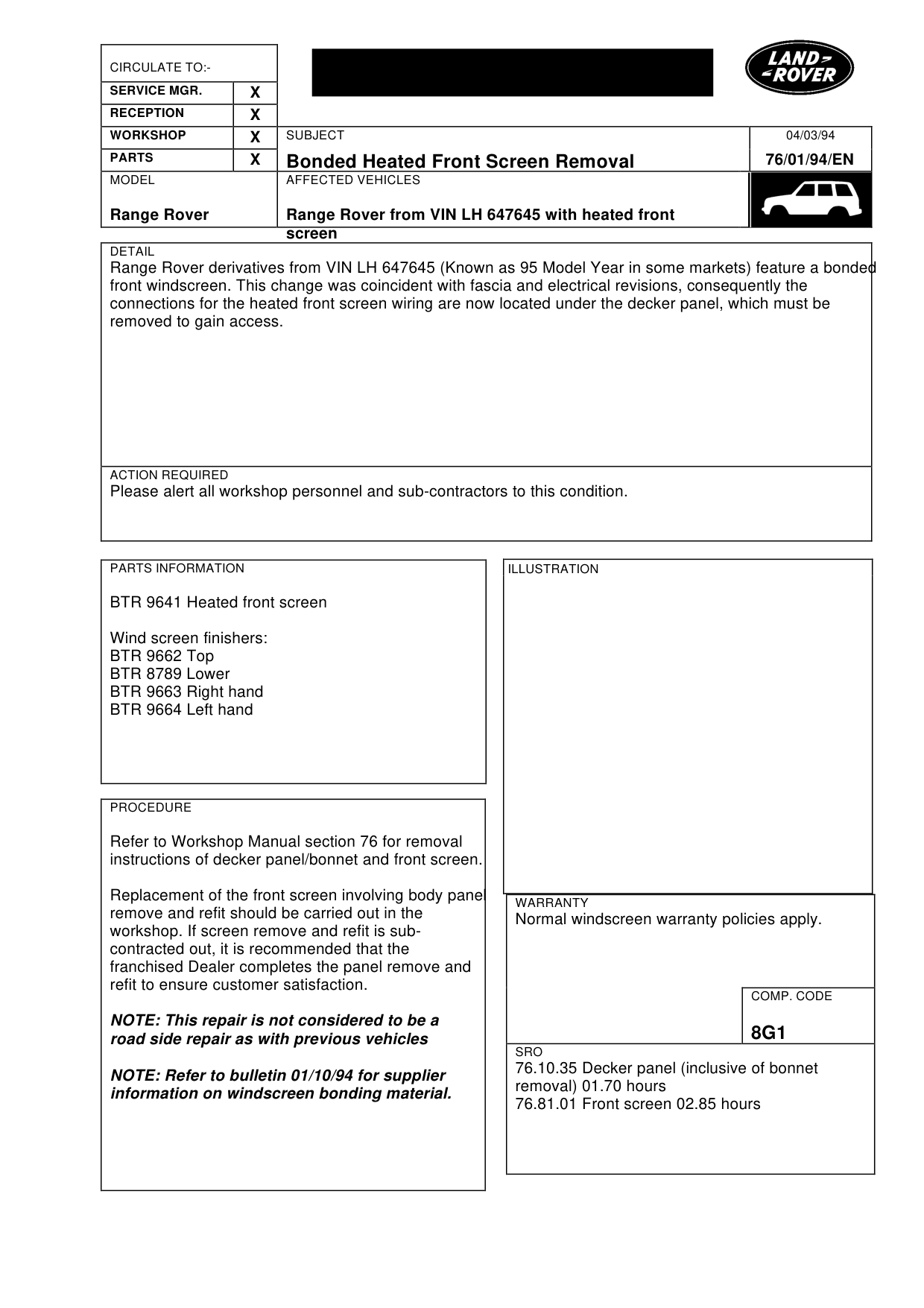

Bonded heated front screen removal

BONDED HEATED FRONT SCREEN REMOVAL

Model

Range Rover

Affected vehicles

Range Rover from VIN LH 647645 with heated front screen

Date

1994-03-04

Reference

04/03/94

Bulletin text

Bonded Heated Front Screen Removal

MODEL AFFECTED VEHICLES

Range Rover Range Rover from VIN LH 647645 with heated front screen

DETAIL

Range Rover derivatives from VIN LH 647645 (Known as 95 Model Year in some markets) feature a bonded front windscreen. This change was coincident with fascia and electrical revisions, consequently the connections for the heated front screen wiring are now located under the decker panel, which must be removed to gain access.

ACTION REQUIRED

Please alert all workshop personnel and sub-contractors to this condition.

PARTS INFORMATION

BTR 9641 Heated front screen

Wind screen finishers: BTR 9662 Top BTR 8789 Lower BTR 9663 Right hand BTR 9664 Left hand

PROCEDURE

Refer to Workshop Manual section 76 for removal instructions of decker panel/bonnet and front screen.

Replacement of the front screen involving body panel remove and refit should be carried out in the workshop. If screen remove and refit is subcontracted out, it is recommended that the franchised Dealer completes the panel remove and refit to ensure customer satisfaction.

NOTE: This repair is not considered to be a road side repair as with previous vehicles

NOTE: Refer to bulletin 01/10/94 for supplier information on windscreen bonding material.

04/03/94

76/01/94/EN

WARRANTY

Normal windscreen warranty policies apply.

COMP. CODE

8G1

SRO

76.10.35 Decker panel (inclusive of bonnet removal) 01.70 hours 76.81.01 Front screen 02.85 hours
