(SRS) supplementary restraint system warning light on

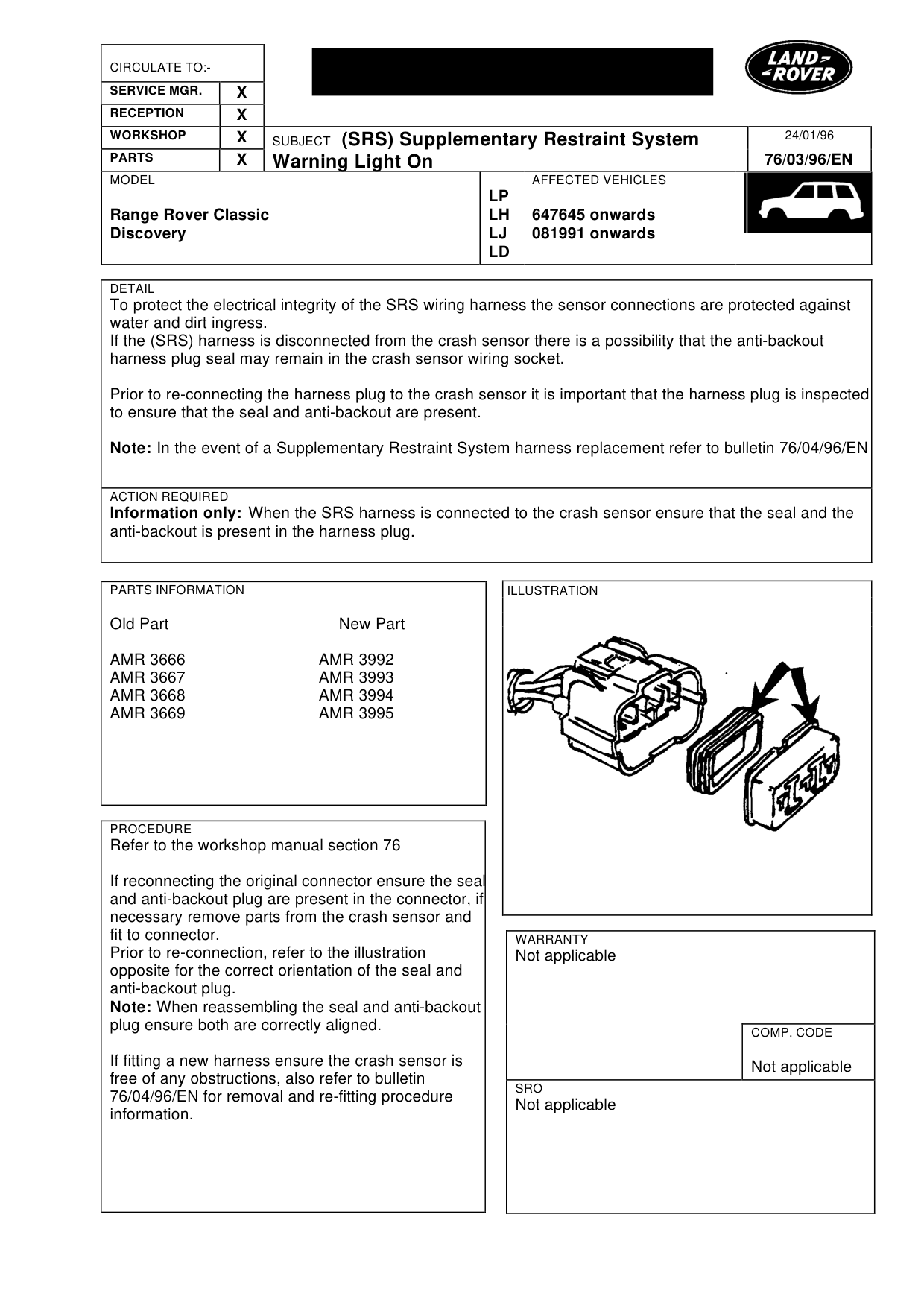

(SRS) SUPPLEMENTARY RESTRAINT SYSTEM WARNING LIGHT ON

Model

Range Rover Classic Discovery

Affected vehicles

647645 onwards 081991 onwards

Date

1996-01-24

Reference

24/01/96

Bulletin text

SUBJECT (SRS) Supplementary Restraint System Warning Light On

MODEL

Range Rover Classic Discovery

DETAIL

To protect the electrical integrity of the SRS wiring harness the sensor connections are protected against water and dirt ingress. If the (SRS) harness is disconnected from the crash sensor there is a possibility that the anti-backout harness plug seal may remain in the crash sensor wiring socket.

Prior to re-connecting the harness plug to the crash sensor it is important that the harness plug is inspected to ensure that the seal and anti-backout are present.

Note: In the event of a Supplementary Restraint System harness replacement refer to bulletin 76/04/96/EN

ACTION REQUIRED

Information only: When the SRS harness is connected to the crash sensor ensure that the seal and the anti-backout is present in the harness plug.

PARTS INFORMATION

Old Part New Part

AMR 3666 AMR 3992 AMR 3667 AMR 3993 AMR 3668 AMR 3994 AMR 3669 AMR 3995

PROCEDURE

Refer to the workshop manual section 76

If reconnecting the original connector ensure the seal and anti-backout plug are present in the connector, if necessary remove parts from the crash sensor and fit to connector. Prior to re-connection, refer to the illustration opposite for the correct orientation of the seal and anti-backout plug. Note: When reassembling the seal and anti-backout plug ensure both are correctly aligned.

If fitting a new harness ensure the crash sensor is free of any obstructions, also refer to bulletin 76/04/96/EN for removal and re-fitting procedure information.

24/01/96

76/03/96/EN

AFFECTED VEHICLES

LP LH 647645 onwards LJ 081991 onwards LD

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
