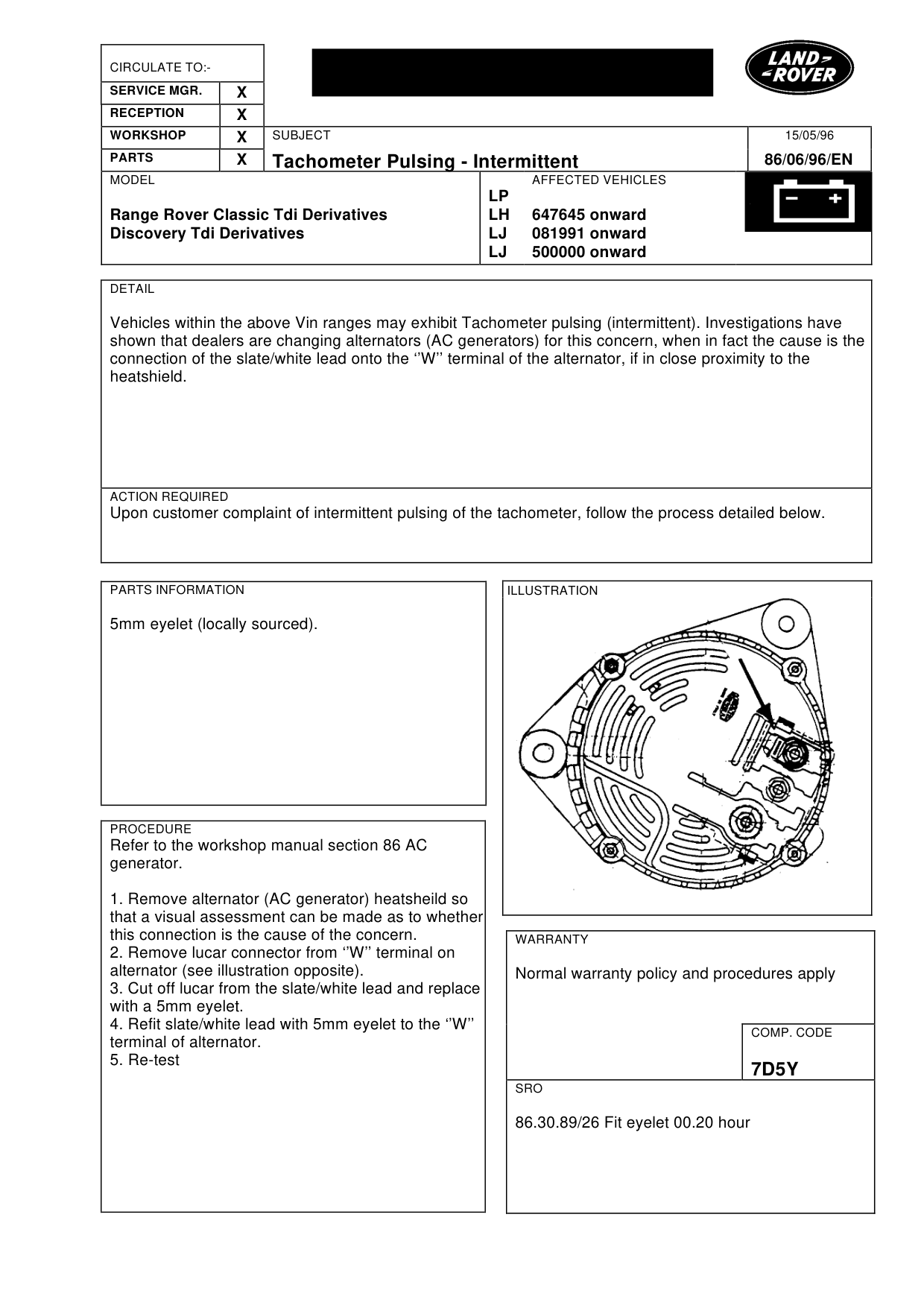

Tachometer pulsing-intermittent

TACHOMETER PULSING-INTERMITTENT

Model

Range Rover Classic Tdi Derivatives Discovery Tdi Derivatives

Affected vehicles

647645 onward 081991 onward 500000 onward

Date

1996-05-15

Reference

15/05/96

Bulletin text

Tachometer Pulsing - Intermittent

MODEL

Range Rover Classic Tdi Derivatives Discovery Tdi Derivatives

DETAIL

Vehicles within the above Vin ranges may exhibit Tachometer pulsing (intermittent). Investigations have shown that dealers are changing alternators (AC generators) for this concern, when in fact the cause is the connection of the slate/white lead onto the ‘’W’’ terminal of the alternator, if in close proximity to the heatshield.

ACTION REQUIRED

Upon customer complaint of intermittent pulsing of the tachometer, follow the process detailed below.

PARTS INFORMATION

5mm eyelet (locally sourced).

PROCEDURE

Refer to the workshop manual section 86 AC generator.

1. Remove alternator (AC generator) heatsheild so that a visual assessment can be made as to whether this connection is the cause of the concern. 2. Remove lucar connector from ‘’W’’ terminal on alternator (see illustration opposite). 3. Cut off lucar from the slate/white lead and replace with a 5mm eyelet. 4. Refit slate/white lead with 5mm eyelet to the ‘’W’’ terminal of alternator. 5. Re-test

15/05/96

86/06/96/EN

AFFECTED VEHICLES

LP LH 647645 onward LJ 081991 onward LJ 500000 onward

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

7D5Y

SRO

86.30.89/26 Fit eyelet 00.20 hour
