Engine oil leak - oil pressure switch

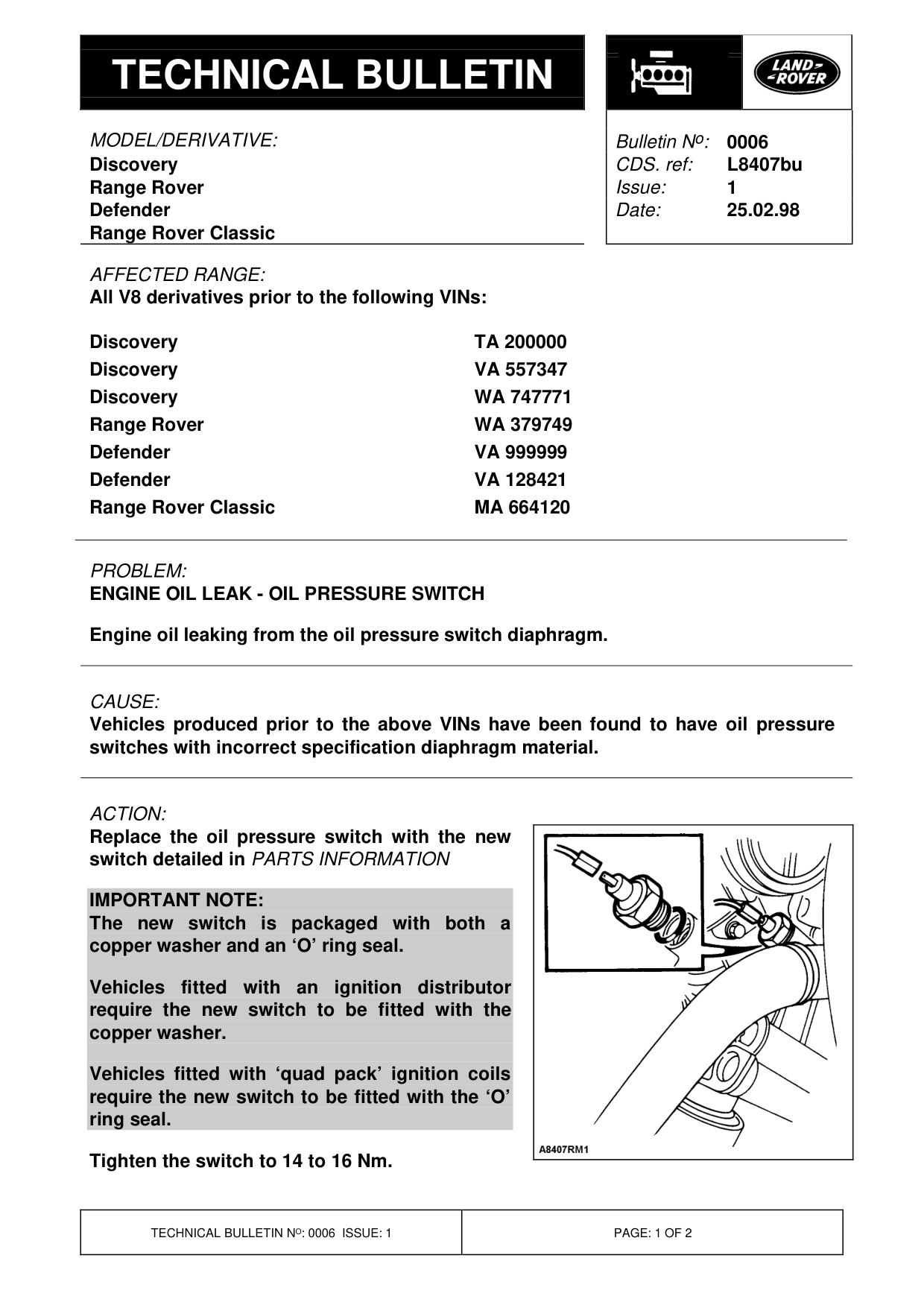

ENGINE OIL LEAK - OIL PRESSURE SWITCH

Model

Discovery Range Rover Defender Range Rover Classic

Affected vehicles

All V8 derivatives prior to the following VINs: Discovery Discovery Discovery Range Rover Defender Defender Range Rover Classic TA 200000 VA 557347 WA 747771 WA 379749 VA 999999 VA 128421 MA 664120

Date

1998-02-25

Reference

Bulletin 0006, CDS ref L8407bu

Bulletin text

Discovery Range Rover Defender Range Rover Classic

AFFECTED RANGE:

All V8 derivatives prior to the following VINs:

Discovery Discovery Discovery Range Rover Defender Defender Range Rover Classic

PROBLEM:

ENGINE OIL LEAK - OIL PRESSURE SWITCH

Engine oil leaking from the oil pressure switch diaphragm.

CAUSE:

Vehicles produced prior to the above VINs have been found to have oil pressure switches with incorrect specification diaphragm material.

ACTION:

Replace the oil pressure switch with the new switch detailed in PARTS INFORMATION

IMPORTANT NOTE: The new switch is packaged with both a copper washer and an ‘O’ ring seal.

Vehicles fitted with an ignition distributor require the new switch to be fitted with the copper washer.

Vehicles fitted with ‘quad pack’ ignition coils require the new switch to be fitted with the ‘O’ ring seal.

Tighten the switch to 14 to 16 Nm.

Bulletin N o : 0006 L8407bu 1 25.02.98

TA 200000 VA 557347 WA 747771 WA 379749 VA 999999 VA 128421 MA 664120

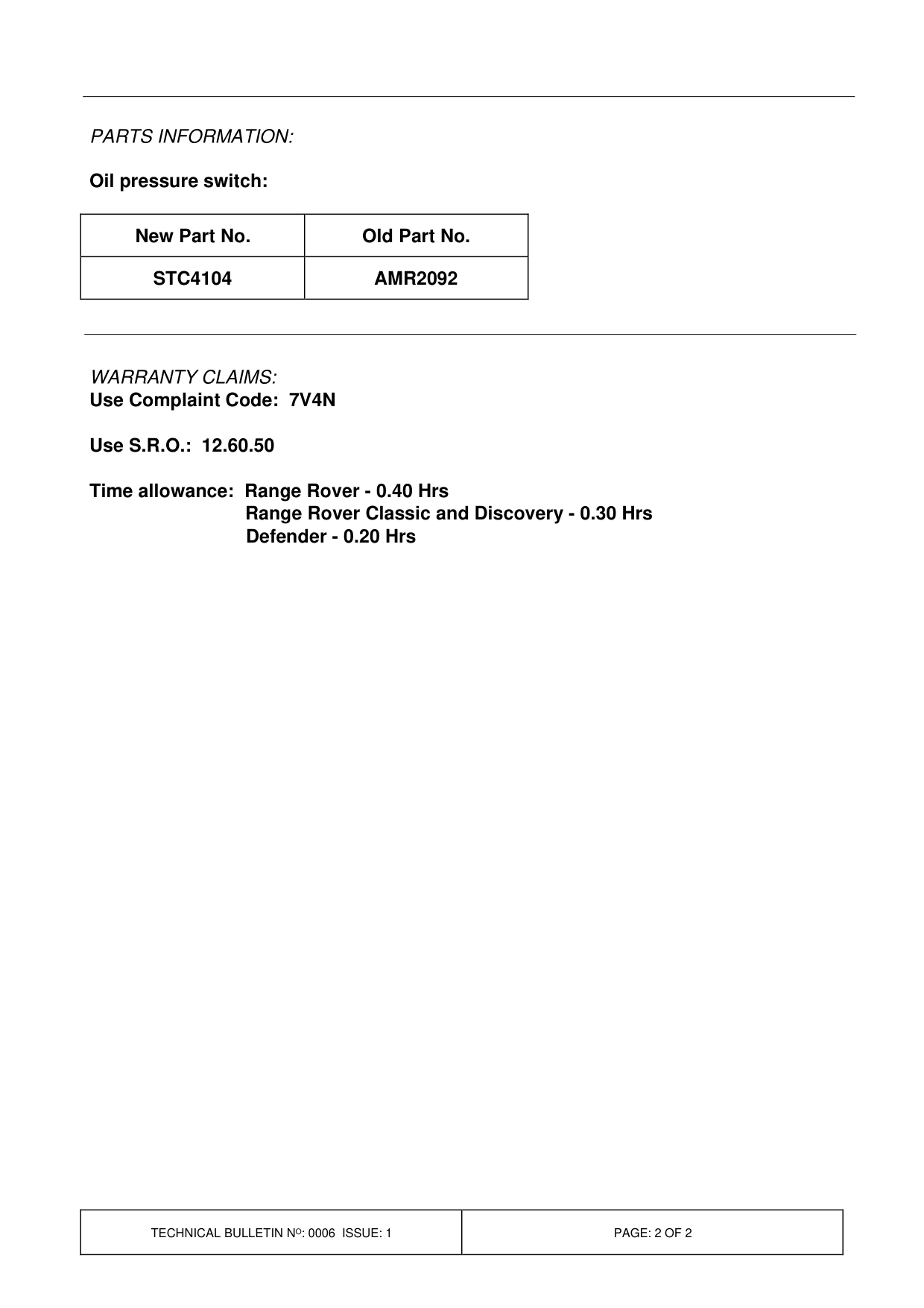

PARTS INFORMATION:

Oil pressure switch:

New Part No.

STC4104

WARRANTY CLAIMS: Use Complaint Code: 7V4N

Use S.R.O.: 12.60.50

Time allowance: Range Rover - 0.40 Hrs Range Rover Classic and Discovery - 0.30 Hrs Defender - 0.20 Hrs

Old Part No.

AMR2092
