Air flow meter connections

AIR FLOW METER CONNECTIONS

Model

Range Rover Classic Discovery

Affected vehicles

All V8i derivatives - Range Rover from LH 655827 Discovery from LJ 112195

Date

1994-12-07

Reference

07/12/94

Bulletin text

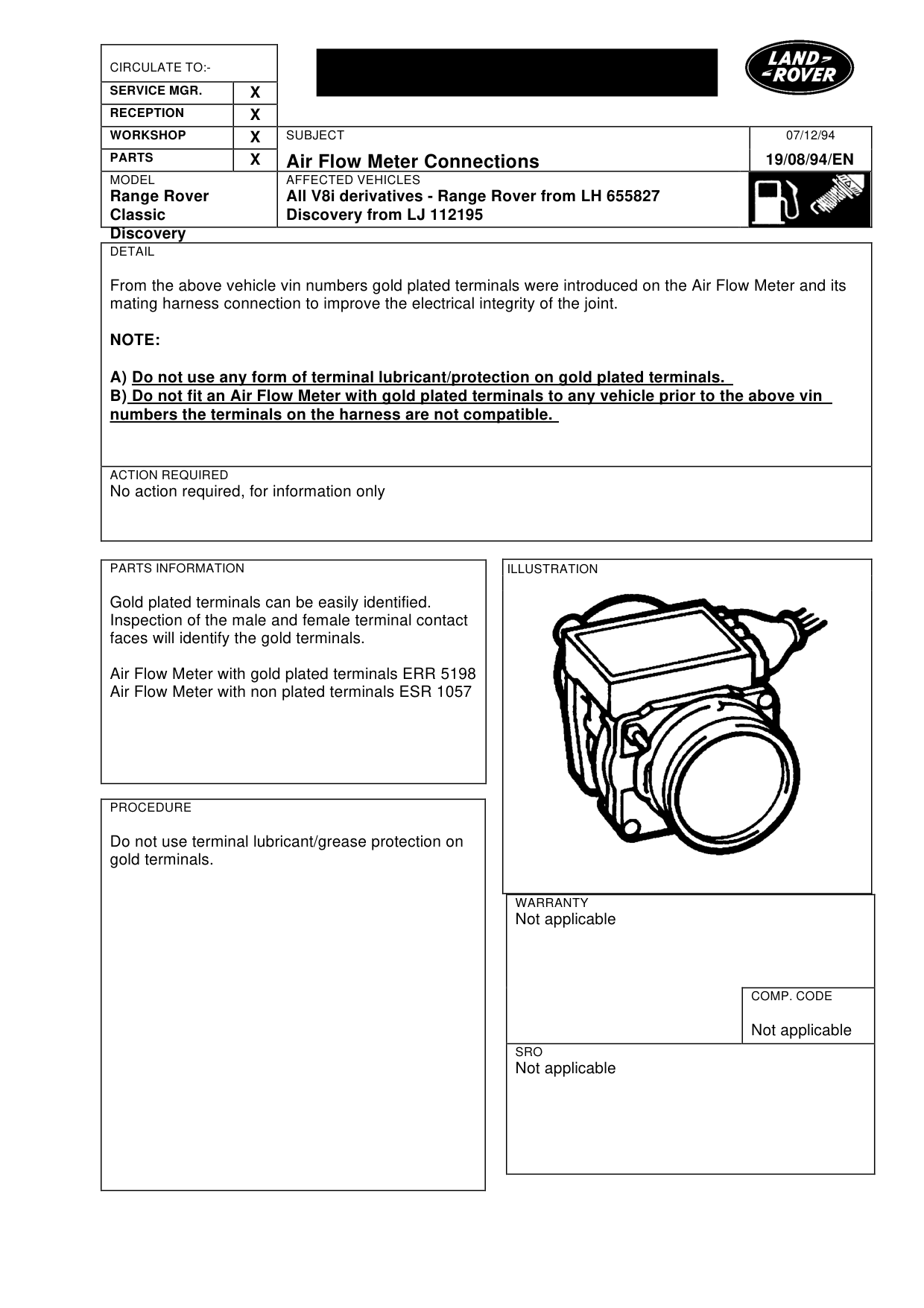

Air Flow Meter Connections

MODEL AFFECTED VEHICLES

Range Rover All V8i derivatives - Range Rover from LH 655827 Classic Discovery from LJ 112195 Discovery

DETAIL

From the above vehicle vin numbers gold plated terminals were introduced on the Air Flow Meter and its mating harness connection to improve the electrical integrity of the joint.

NOTE:

A) Do not use any form of terminal lubricant/protection on gold plated terminals. B) Do not fit an Air Flow Meter with gold plated terminals to any vehicle prior to the above vin numbers the terminals on the harness are not compatible.

ACTION REQUIRED

No action required, for information only

PARTS INFORMATION

Gold plated terminals can be easily identified. Inspection of the male and female terminal contact faces will identify the gold terminals.

Air Flow Meter with gold plated terminals ERR 5198 Air Flow Meter with non plated terminals ESR 1057

PROCEDURE

Do not use terminal lubricant/grease protection on gold terminals.

07/12/94

19/08/94/EN

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
