Clutch cover to flywheel fittting intructions

CLUTCH COVER TO FLYWHEEL FITTTING INTRUCTIONS

Model

Range Rover Classic Diesel Derivatives Discovery Diesel Derivatives Defender Diesel Derivatives

Affected vehicles

All All All

Date

1996-10-02

Reference

02/10/96

Bulletin text

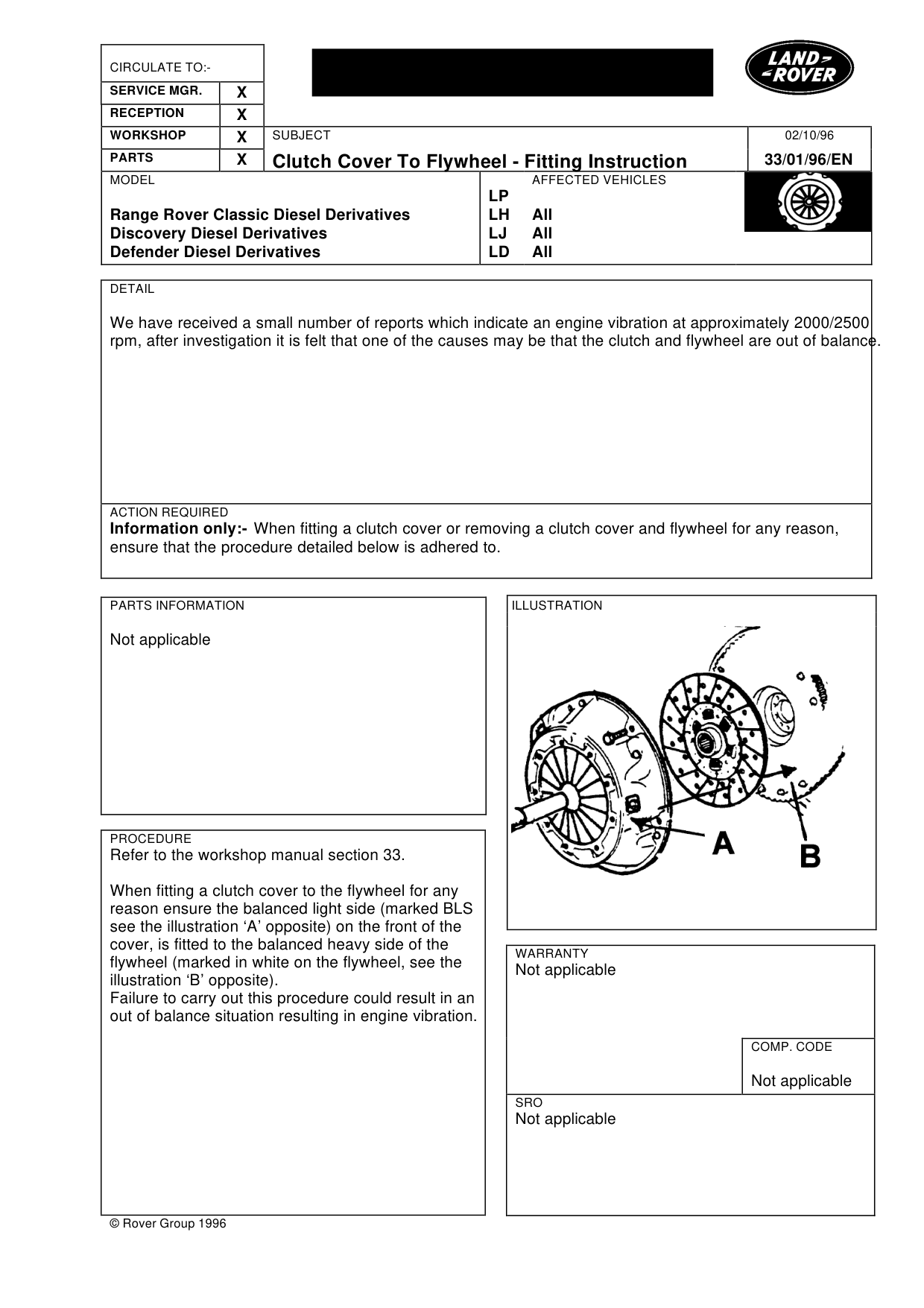

Clutch Cover To Flywheel - Fitting Instruction

MODEL

Range Rover Classic Diesel Derivatives Discovery Diesel Derivatives Defender Diesel Derivatives

DETAIL

We have received a small number of reports which indicate an engine vibration at approximately 2000/2500 rpm, after investigation it is felt that one of the causes may be that the clutch and flywheel are out of balance.

ACTION REQUIRED

Information only:- When fitting a clutch cover or removing a clutch cover and flywheel for any reason, ensure that the procedure detailed below is adhered to.

PARTS INFORMATION

Not applicable

PROCEDURE

Refer to the workshop manual section 33.

When fitting a clutch cover to the flywheel for any reason ensure the balanced light side (marked BLS see the illustration ‘A’ opposite) on the front of the cover, is fitted to the balanced heavy side of the flywheel (marked in white on the flywheel, see the illustration ‘B’ opposite). Failure to carry out this procedure could result in an out of balance situation resulting in engine vibration.

© Rover Group 1996

02/10/96

33/01/96/EN

AFFECTED VEHICLES

LP LH All LJ All LD All

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
