Transfer gearbox-borg warner-output seal

TRANSFER GEARBOX-BORG WARNER-OUTPUT SEAL

Model

Range Rover

Affected vehicles

All derivatives from LH 647645 to LH 650095

Date

1994-04-13

Reference

13/04/94

Bulletin text

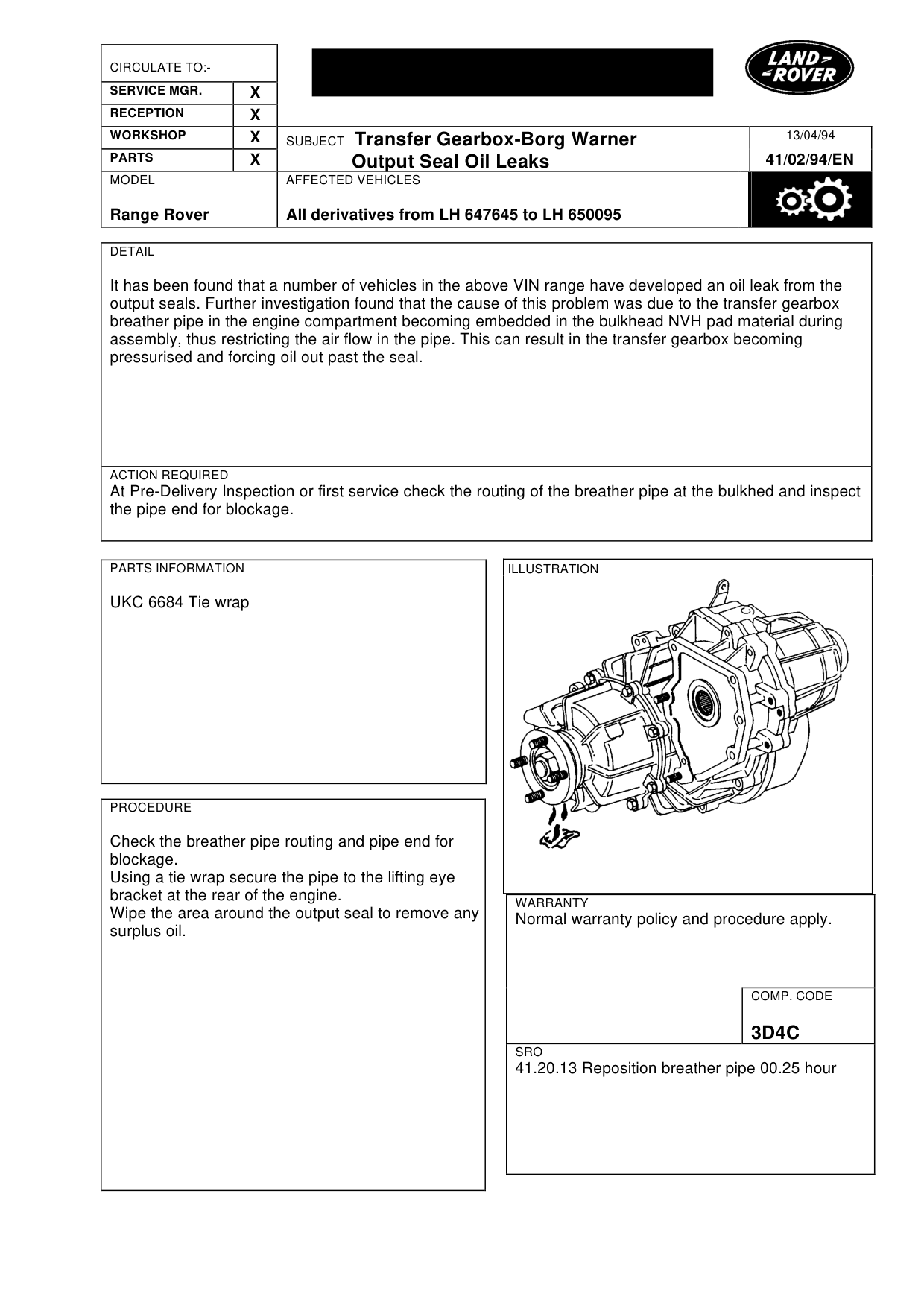

SUBJECT Transfer Gearbox-Borg Warner Output Seal Oil Leaks

MODEL AFFECTED VEHICLES

Range Rover All derivatives from LH 647645 to LH 650095

DETAIL

It has been found that a number of vehicles in the above VIN range have developed an oil leak from the output seals. Further investigation found that the cause of this problem was due to the transfer gearbox breather pipe in the engine compartment becoming embedded in the bulkhead NVH pad material during assembly, thus restricting the air flow in the pipe. This can result in the transfer gearbox becoming pressurised and forcing oil out past the seal.

ACTION REQUIRED

At Pre-Delivery Inspection or first service check the routing of the breather pipe at the bulkhed and inspect the pipe end for blockage.

PARTS INFORMATION

UKC 6684 Tie wrap

PROCEDURE

Check the breather pipe routing and pipe end for blockage. Using a tie wrap secure the pipe to the lifting eye bracket at the rear of the engine. Wipe the area around the output seal to remove any surplus oil.

13/04/94

41/02/94/EN

WARRANTY

Normal warranty policy and procedure apply.

COMP. CODE

3D4C

SRO

41.20.13 Reposition breather pipe 00.25 hour
