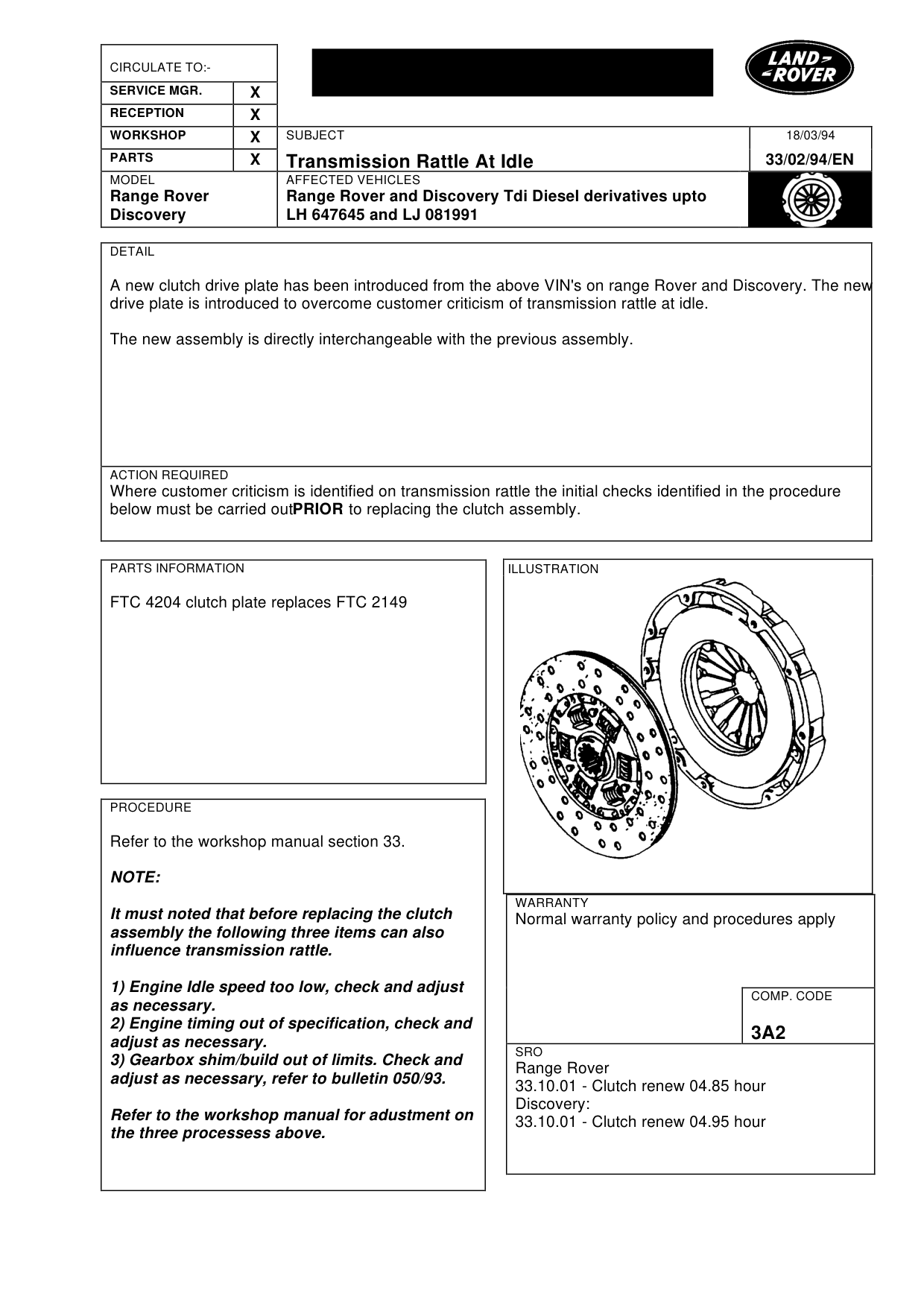

Transmission rattle at idle-Tdi diesel

TRANSMISSION RATTLE AT IDLE-TDI DIESEL

Model

Range Rover Discovery

Affected vehicles

Range Rover and Discovery Tdi Diesel derivatives upto LH 647645 and LJ 081991

Date

1994-03-18

Reference

18/03/94

Bulletin text

Transmission Rattle At Idle

MODEL AFFECTED VEHICLES

Range Rover Range Rover and Discovery Tdi Diesel derivatives upto Discovery LH 647645 and LJ 081991

DETAIL

A new clutch drive plate has been introduced from the above VIN's on range Rover and Discovery. The new drive plate is introduced to overcome customer criticism of transmission rattle at idle.

The new assembly is directly interchangeable with the previous assembly.

ACTION REQUIRED

Where customer criticism is identified on transmission rattle the initial checks identified in the procedure below must be carried out PRIOR to replacing the clutch assembly.

PARTS INFORMATION

FTC 4204 clutch plate replaces FTC 2149

PROCEDURE

Refer to the workshop manual section 33.

NOTE:

It must noted that before replacing the clutch assembly the following three items can also influence transmission rattle.

1) Engine Idle speed too low, check and adjust as necessary. 2) Engine timing out of specification, check and adjust as necessary. 3) Gearbox shim/build out of limits. Check and adjust as necessary, refer to bulletin 050/93.

Refer to the workshop manual for adustment on the three processess above.

18/03/94

33/02/94/EN

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

3A2

SRO

Range Rover 33.10.01 - Clutch renew 04.85 hour Discovery: 33.10.01 - Clutch renew 04.95 hour
