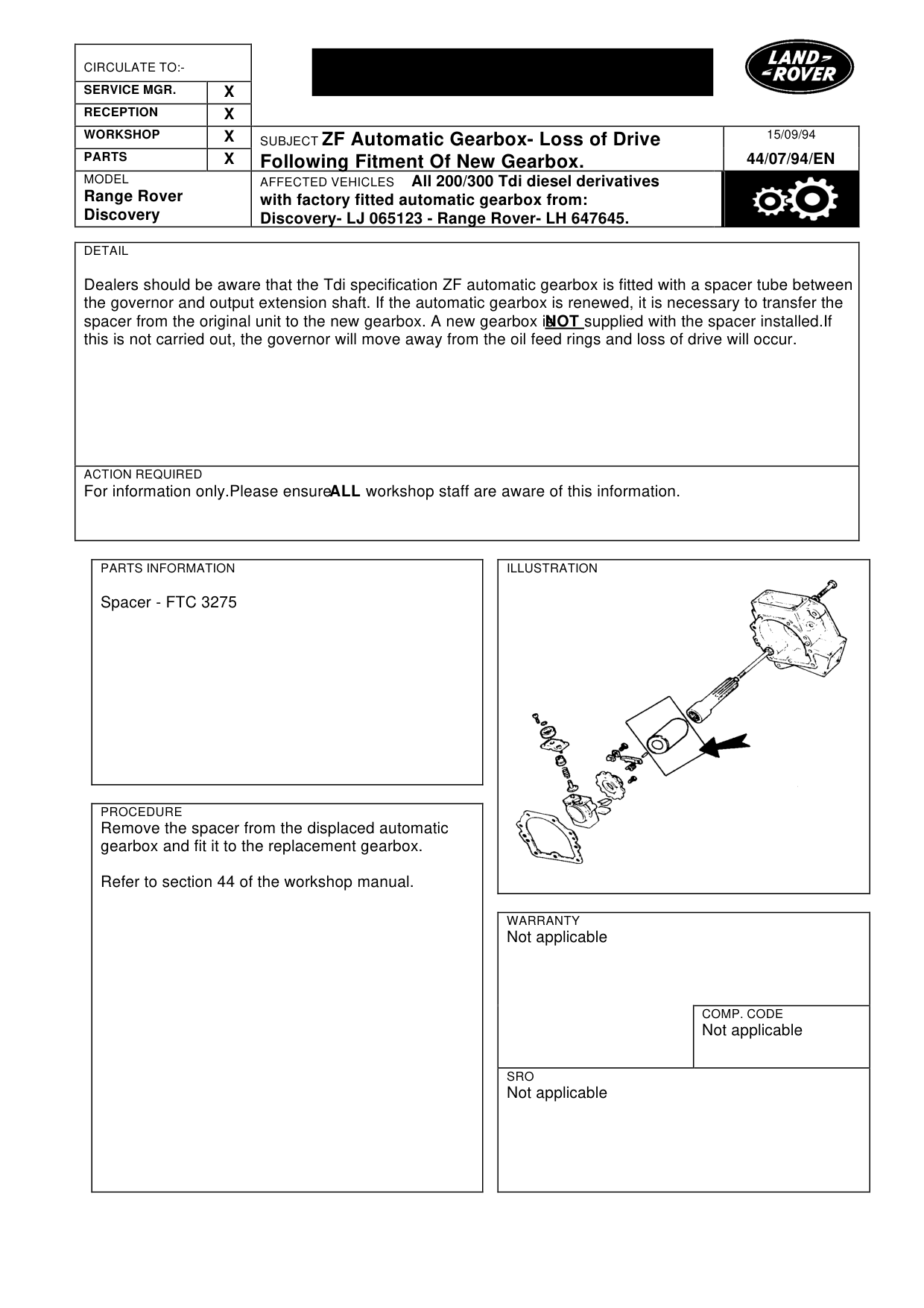

ZF automatic gearbox-loss of drive

ZF AUTOMATIC GEARBOX-LOSS OF DRIVE

Model

Range Rover Discovery

Date

1994-09-15

Reference

15/09/94

Bulletin text

SUBJECT ZF Automatic Gearbox- Loss of Drive Following Fitment Of New Gearbox. AFFECTED VEHICLES All 200/300 Tdi diesel derivatives

MODEL

Range Rover with factory fitted automatic gearbox from: Discovery Discovery- LJ 065123 - Range Rover- LH 647645.

DETAIL

Dealers should be aware that the Tdi specification ZF automatic gearbox is fitted with a spacer tube between the governor and output extension shaft. If the automatic gearbox is renewed, it is necessary to transfer the spacer from the original unit to the new gearbox. A new gearbox is this is not carried out, the governor will move away from the oil feed rings and loss of drive will occur.

ACTION REQUIRED

For information only.Please ensure ALL workshop staff are aware of this information.

PARTS INFORMATION

Spacer - FTC 3275

PROCEDURE

Remove the spacer from the displaced automatic gearbox and fit it to the replacement gearbox.

Refer to section 44 of the workshop manual.

15/09/94

44/07/94/EN

NOT supplied with the spacer installed.If

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
