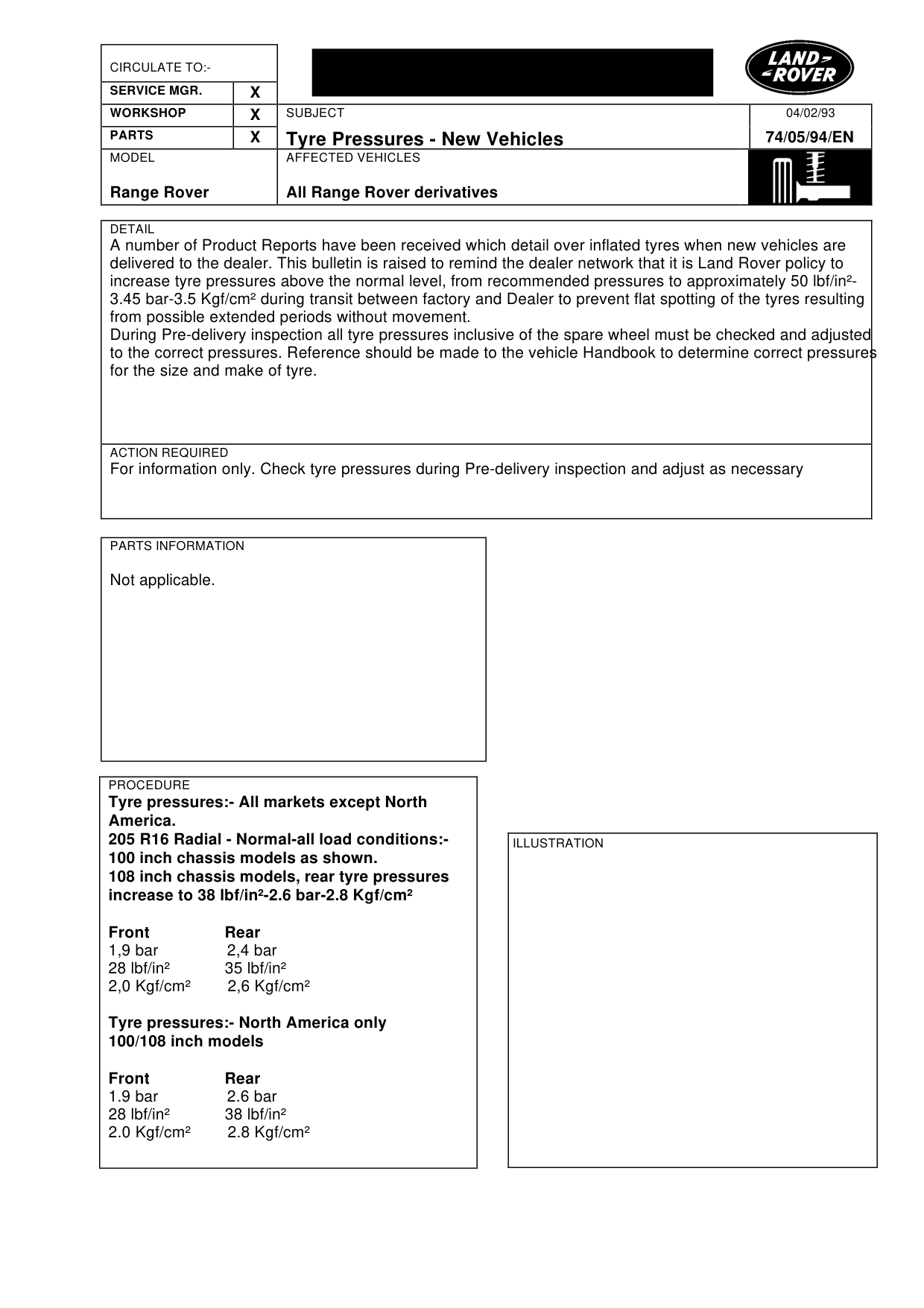

Tyre pressures-new vehicles

TYRE PRESSURES-NEW VEHICLES

Model

Range Rover

Affected vehicles

All Range Rover derivatives

Date

1993-02-04

Reference

04/02/93

Bulletin text

Tyre Pressures - New Vehicles

MODEL AFFECTED VEHICLES

Range Rover All Range Rover derivatives

DETAIL

A number of Product Reports have been received which detail over inflated tyres when new vehicles are delivered to the dealer. This bulletin is raised to remind the dealer network that it is Land Rover policy to increase tyre pressures above the normal level, from recommended pressures to approximately 50 lbf/in²3.45 bar-3.5 Kgf/cm² during transit between factory and Dealer to prevent flat spotting of the tyres resulting from possible extended periods without movement. During Pre-delivery inspection all tyre pressures inclusive of the spare wheel must be checked and adjusted to the correct pressures. Reference should be made to the vehicle Handbook to determine correct pressures for the size and make of tyre.

ACTION REQUIRED

For information only. Check tyre pressures during Pre-delivery inspection and adjust as necessary

PARTS INFORMATION

Not applicable.

PROCEDURE

Tyre pressures:- All markets except North America. 205 R16 Radial - Normal-all load conditions:100 inch chassis models as shown. 108 inch chassis models, rear tyre pressures increase to 38 lbf/in²-2.6 bar-2.8 Kgf/cm²

Front Rear 1,9 bar 2,4 bar 28 lbf/in² 35 lbf/in² 2,0 Kgf/cm² 2,6 Kgf/cm²

Tyre pressures:- North America only 100/108 inch models

Front Rear 1.9 bar 2.6 bar 28 lbf/in² 38 lbf/in² 2.0 Kgf/cm² 2.8 Kgf/cm²

04/02/93

74/05/94/EN
