Range Rover County LWB (LH) V8-4.2L (1993)
Door Sensor/Switch (For Alarm): Diagram Information and Instructions
Color Codes
Color Codes
B - black
G - green
K - pink
L - light
N - brown
O - orange
P - purple
R - red
S - slate (grey)
U - blue
W- white
Y - yellow
The first letter of the code identifies the wire main color; the second identifies the tracer.
Connector, Ground, and Splice ID

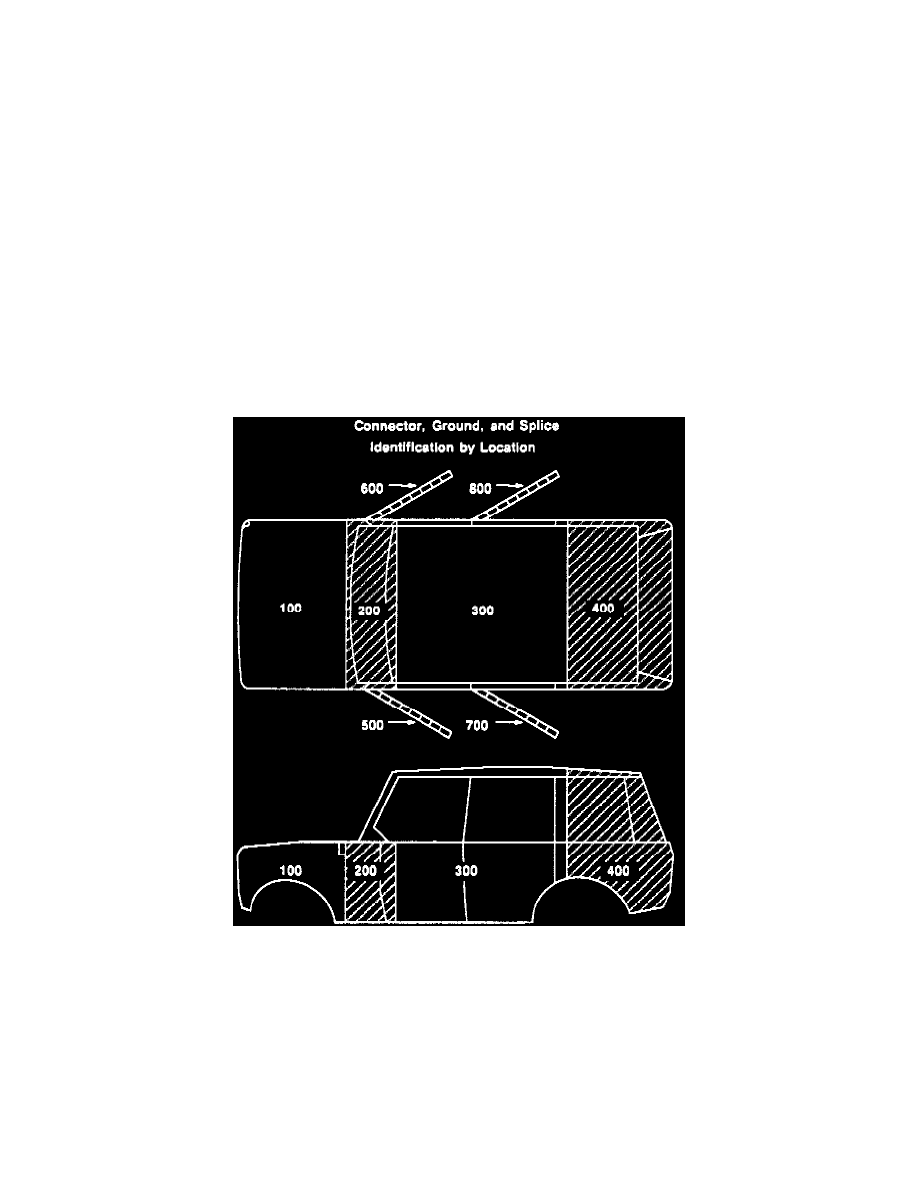

Connector, Ground, And Splice ID By Location
Connectors, Grounds, and Splices are identified by a letter followed by a number. Connectors are identified by C, grounds by E, and splices by S.
Some splices are contained In junction connectors. These splices are identified by the prefix "HJ" below the splice's reference number. The
number assigned to the connector. ground, or splice corresponds to its location in the vehicle.
