Page 44
background image

ENGINE

OVERHAUL

15

TIMING CHAIN AND GEARS

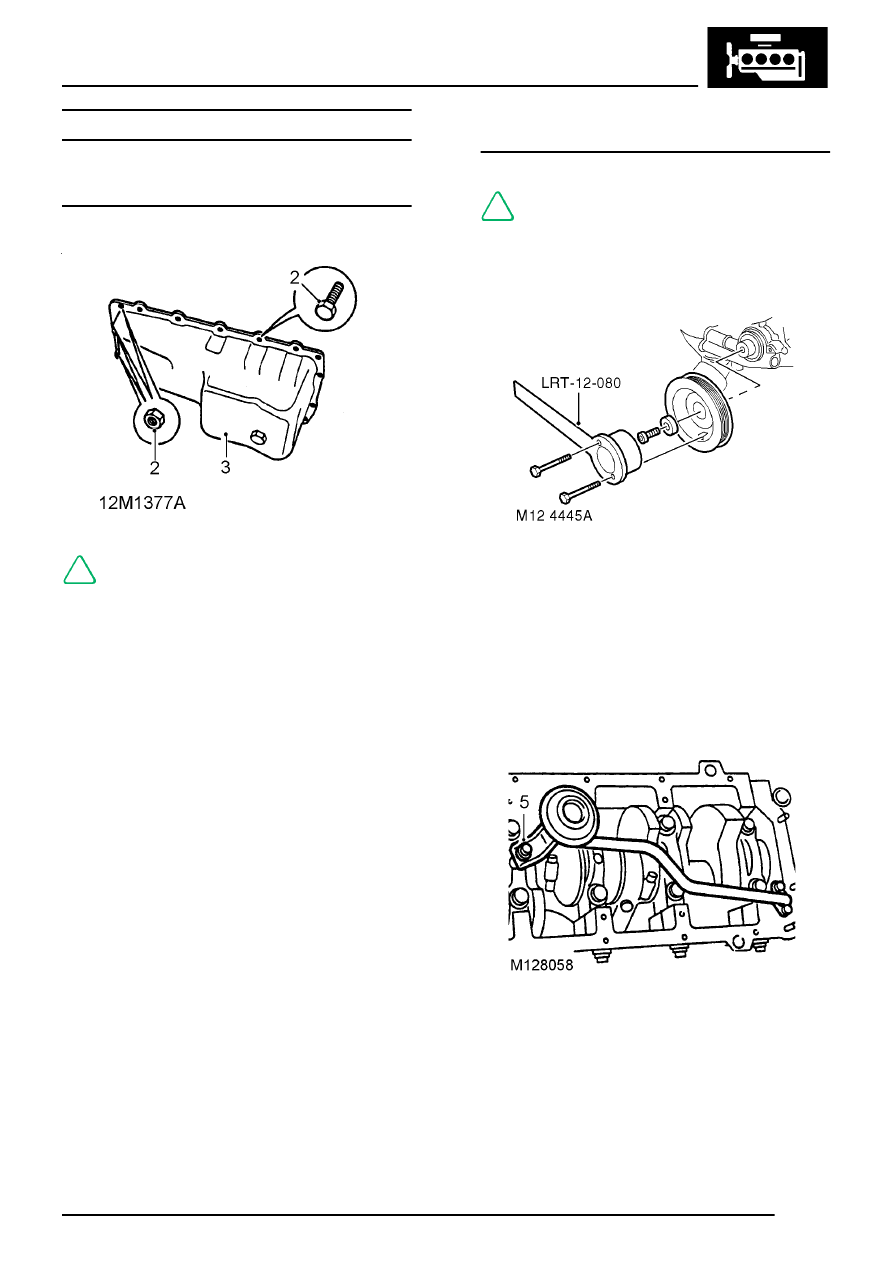

Sump - remove

1. Remove dipstick.

NOTE: Sump fitted to early engines
illustrated

2. Remove 14 bolts and 3 nuts securing sump to

cylinder block and timing cover.

3. Taking care not to damage sealing faces,

carefully release sump from timing cover and
cylinder block.

4. Remove sump, remove and discard gasket - if

fitted.

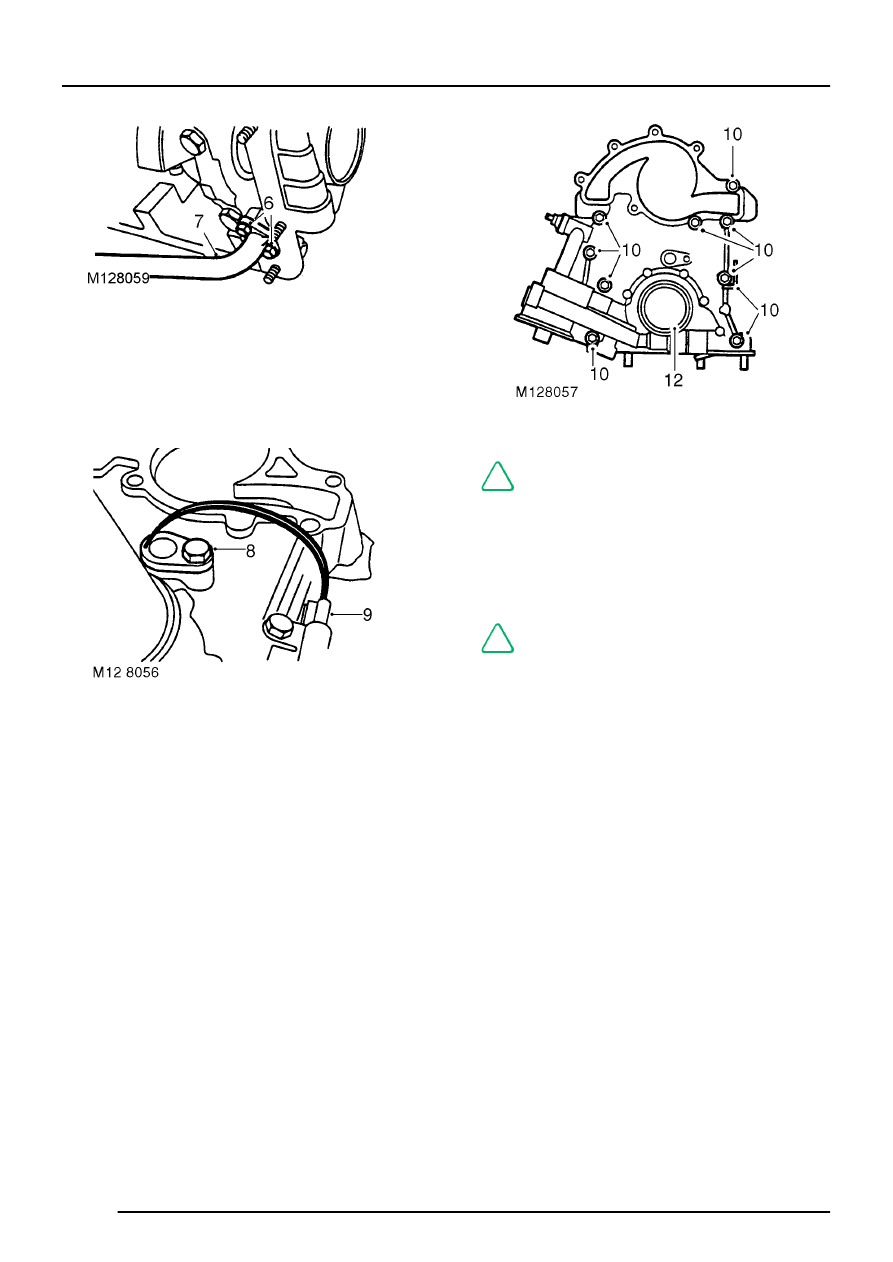

Timing cover - remove

NOTE: Timing cover, oil pump, oil
pressure by-pass valve and oil pressure
relief valve are only supplied as an

assembly.

1. Secure tool LRT-12-080 to crankshaft pulley

with 2 bolts.

2. Restrain crankshaft pulley using LRT-12-080 ,

remove crankshaft pulley retaining bolt, collect
spacer washer - if fitted.

3. Remove crankshaft pulley.
4. Remove sump.

5. Remove nut and washers securing oil pick-up

pipe to stud.
