ENGINE
22
OVERHAUL

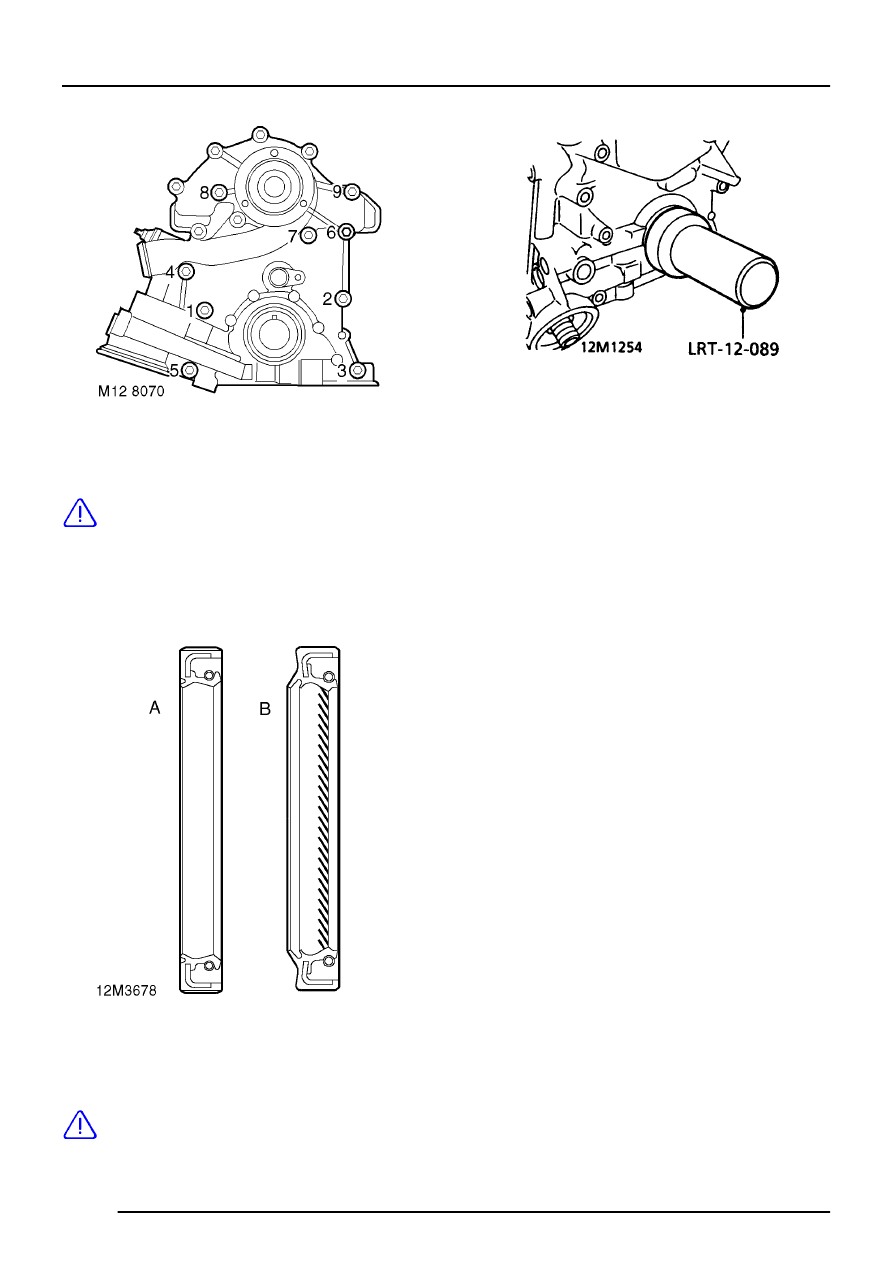

11. Fit timing cover bolts and using sequence
shown,tighten to 22 Nm (16 lbf.ft).
CAUTION: Ensure CMP sensor multiplug
bracket - if fitted is secured by bolt. Do not
fit coolant pump bolts at this stage.
12. Remove tool LRT-12-090.
13. Fit oil pick-up pipe bolts and tighten to 10 Nm
(8 lbf.ft).
A- Early type seal
B- Later type seal - use as replacement for all
engines
CAUTION: Replacement oil seal is
pre-greased, DO NOT use any additional
lubricant.
14. Fit timing cover oil seal using tool LRT-12-089.
15. Fit sump.
16. Fit crankshaft pulley, fit bolt and spacer
washer.
17. Using tool LRT-12-080 to restrain crankshaft,
tighten bolt to 270 Nm (200 lbf.ft).
18. Remove tool LRT-12-080.
