Power Seat Switch: Service and Repair
Lumbar Seat Control Switch

REMOVAL

1. Disconnect the battery ground cable.

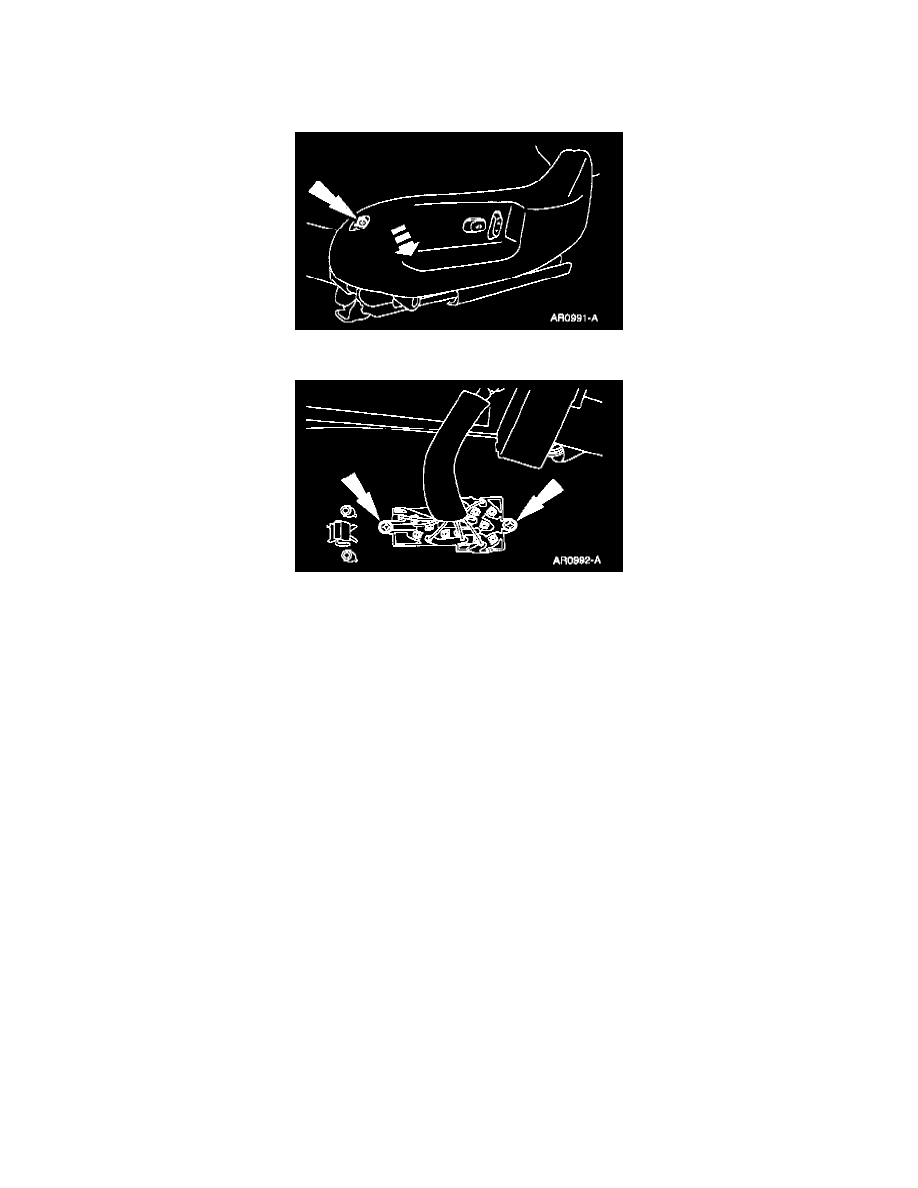

2. Remove the screw and pull the front seat cushion side shield away from the seat.

3. Remove the screws.

INSTALLATION

1. Follow the removal procedure in reverse order.
