Continental V8-4.6L DOHC VIN V (1998)
Air Duct: Service and Repair
Disassembly and Assembly (Air Distribution Ducts)
DISASSEMBLY

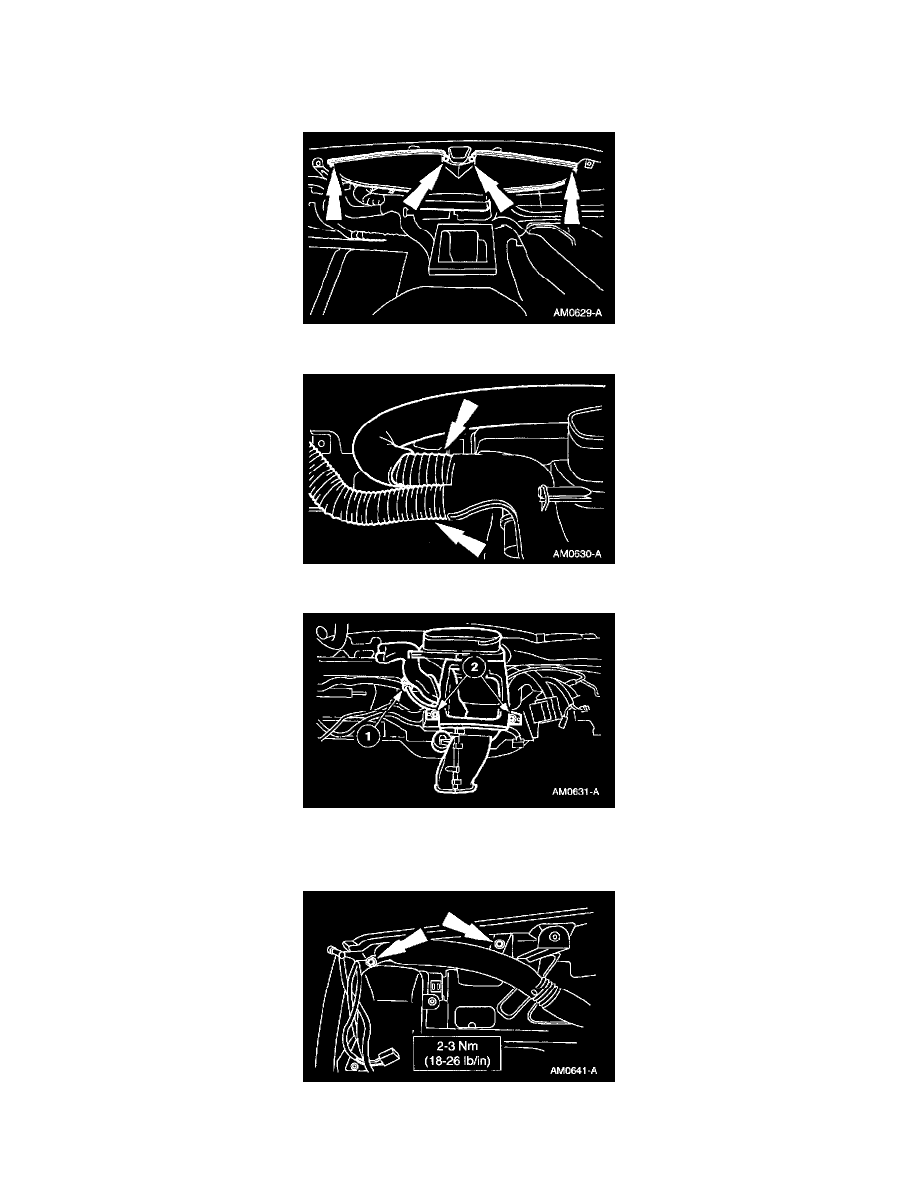

1. Remove the instrument panel.
2. Remove the screws and the windshield defroster hose nozzle.
3. Disconnect the RH and the LH A/C side window demister and hose from the A/C plenum demister adapter.
4. Remove the heater air plenum chamber.
1. Disconnect the vacuum hose.
2. Remove the screws and remove the heater air plenum chamber.
5. Remove the screws and the RH A/C side window demister and hose.
