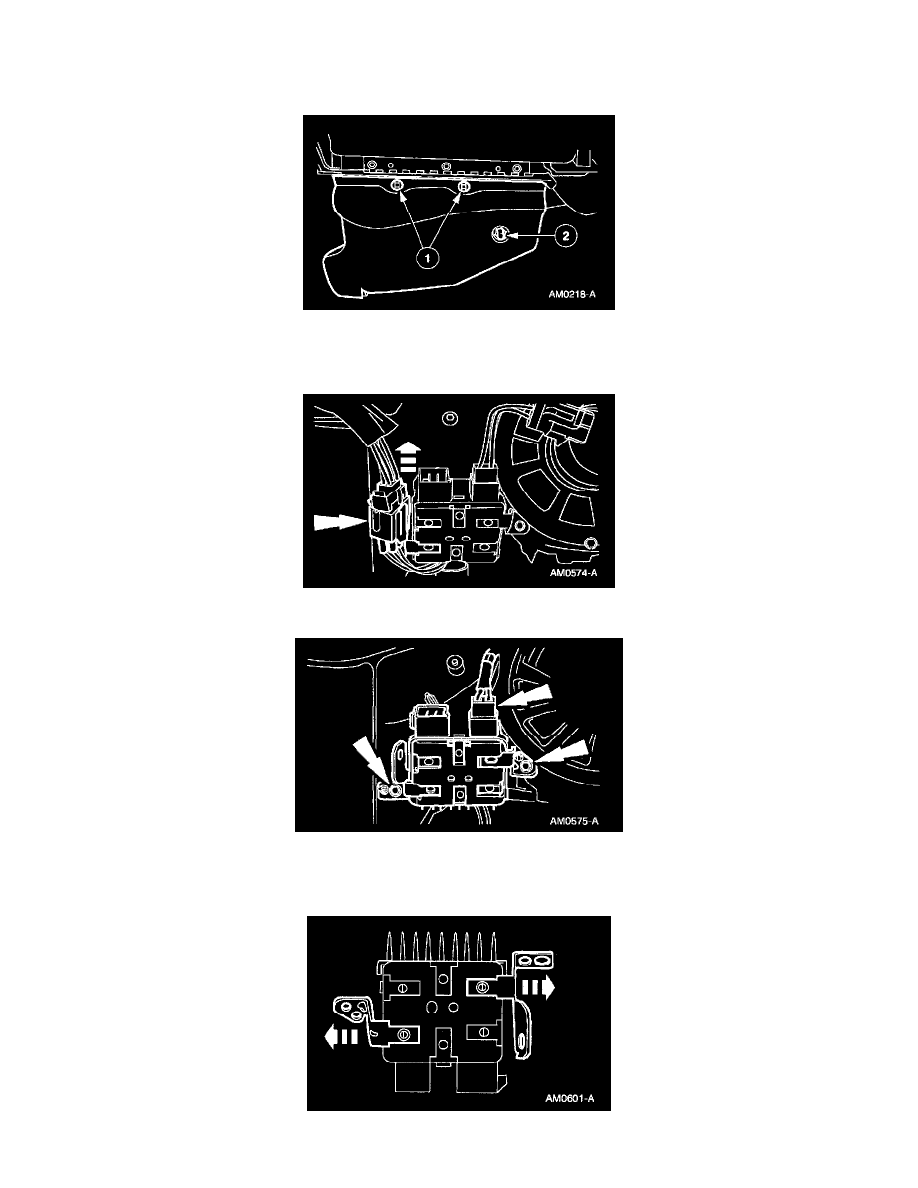

5. Remove the screws and pull the electronic automatic temperature control module from the instrument panel.

6. Remove the electronic automatic temperature control module.

^

Remove the nuts and the vacuum harness connector.

^

Remove the electrical connectors and remove the electronic automatic temperature control module.

INSTALLATION

1. Follow the removal procedure in reverse order.
