Power Steering Pump: Service and Repair
Power Steering Pump

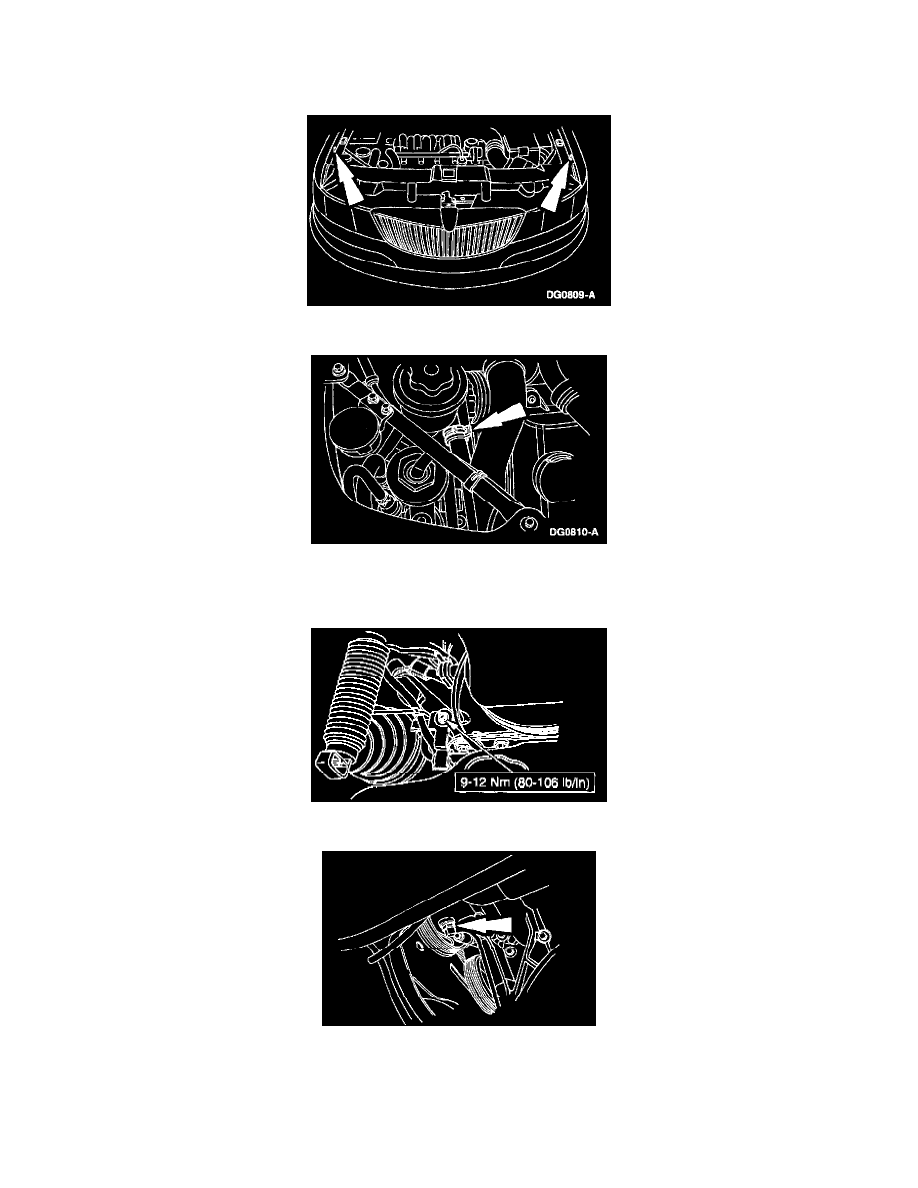

REMOVAL

1. Remove the radiator upper sight shield.

2. Disconnect the power steering reservoir pump hose.
3. Raise the vehicle.
4. Remove the air conditioning compressor.

5. Remove the nut and the routing bracket.

6. Disconnect the power steering pressure hose.
