Continental V8-4.6L DOHC VIN V (1998)

Page 1
background image

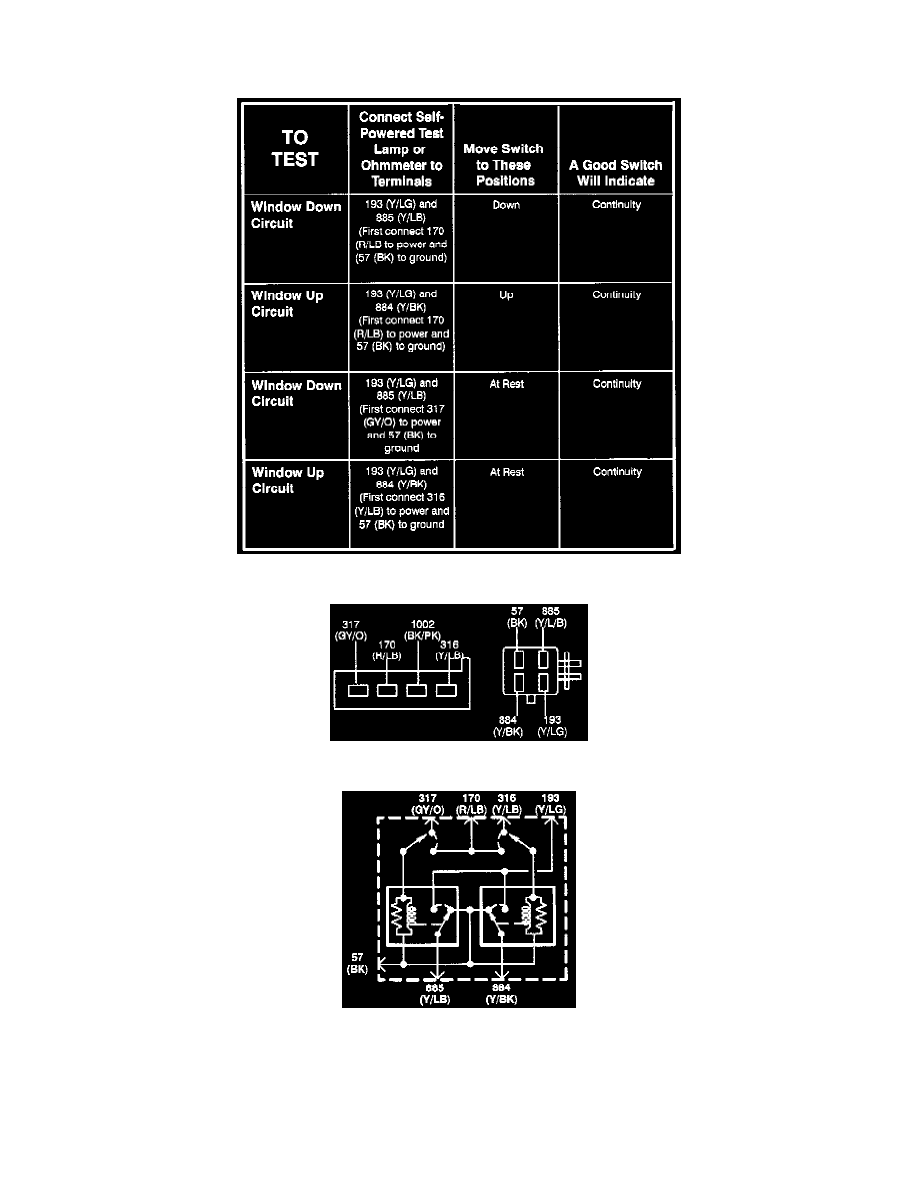

Power Window Switch: Testing and Inspection
LR Window Control Switch

LR Power Window Switch - Component Testing Procedure

LR Power Window Switch - Terminal Locations

LR Power Window Switch - Schematic
