Navigator 2WD V8-5.4L SOHC VIN L (1999)
Air Cleaner Fresh Air Duct/Hose: Service and Repair

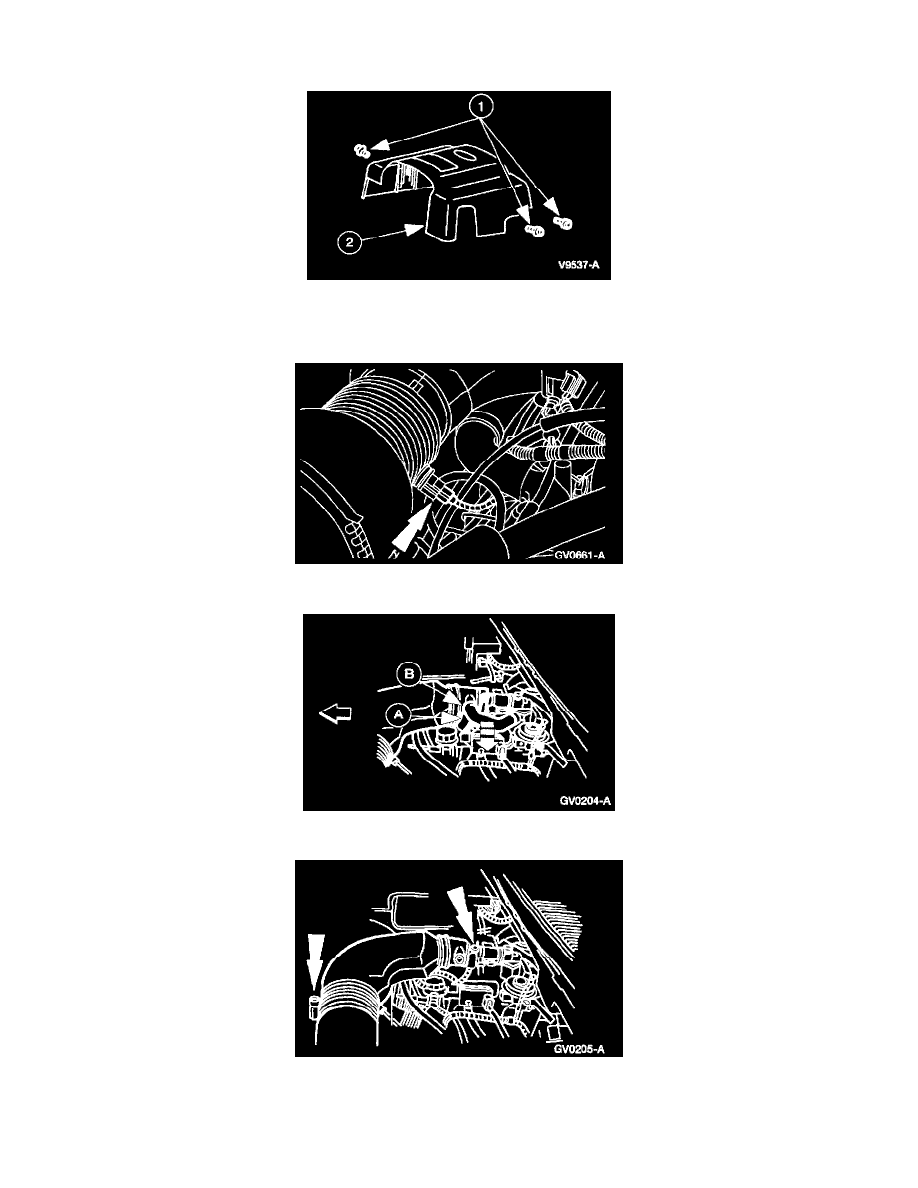

REMOVAL
1. Remove the accelerator control splash shield.
1
Remove the bolts.
2
Remove the accelerator control splash shield.
2. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.
3. Disconnect the (A) Positive Crankcase Ventilation hose and the (B) idle air control valve inlet tube.
4. Loosen the clamps and remove the air cleaner outlet tube and resonator.
INSTALLATION
1. To install, reverse the removal procedure.
