Navigator 2WD V8-5.4L SOHC VIN L (1999)
Liftgate Window Glass: Service and Repair

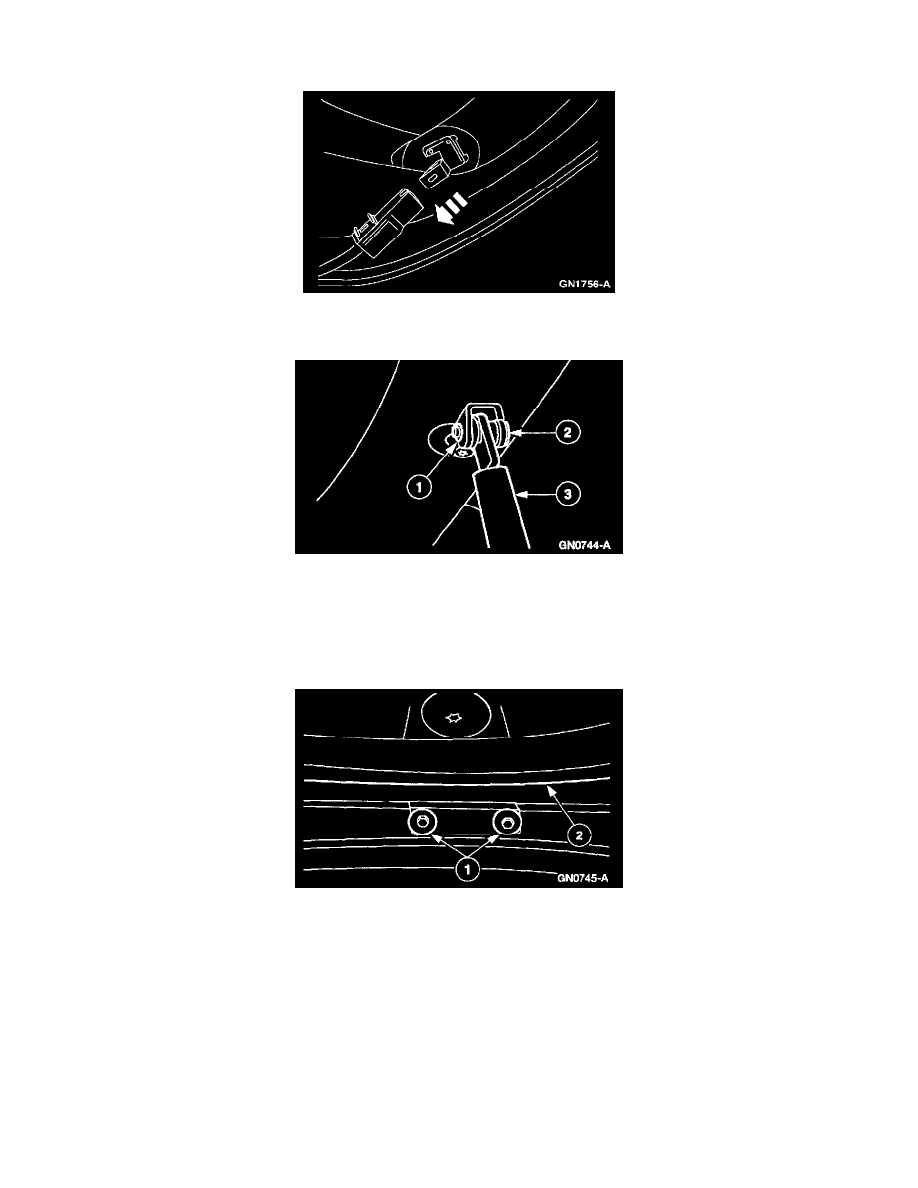

REMOVAL
1. Disconnect the rear window defrost grid electrical connector.
2. Remove the liftgate trim panels.
3. Disconnect the liftgate window glass support.
1. Remove the E-clip.
2. Remove the pin.
3. Disconnect the support.
NOTE: Have an assistant hold the liftgate window glass.
4. Remove the liftgate window glass.
1. Remove the four bolts (two each side)
2. Remove the liftgate window glass.
INSTALLATION
