Town Car V8-4.6L VIN V Flex Fuel (2006)

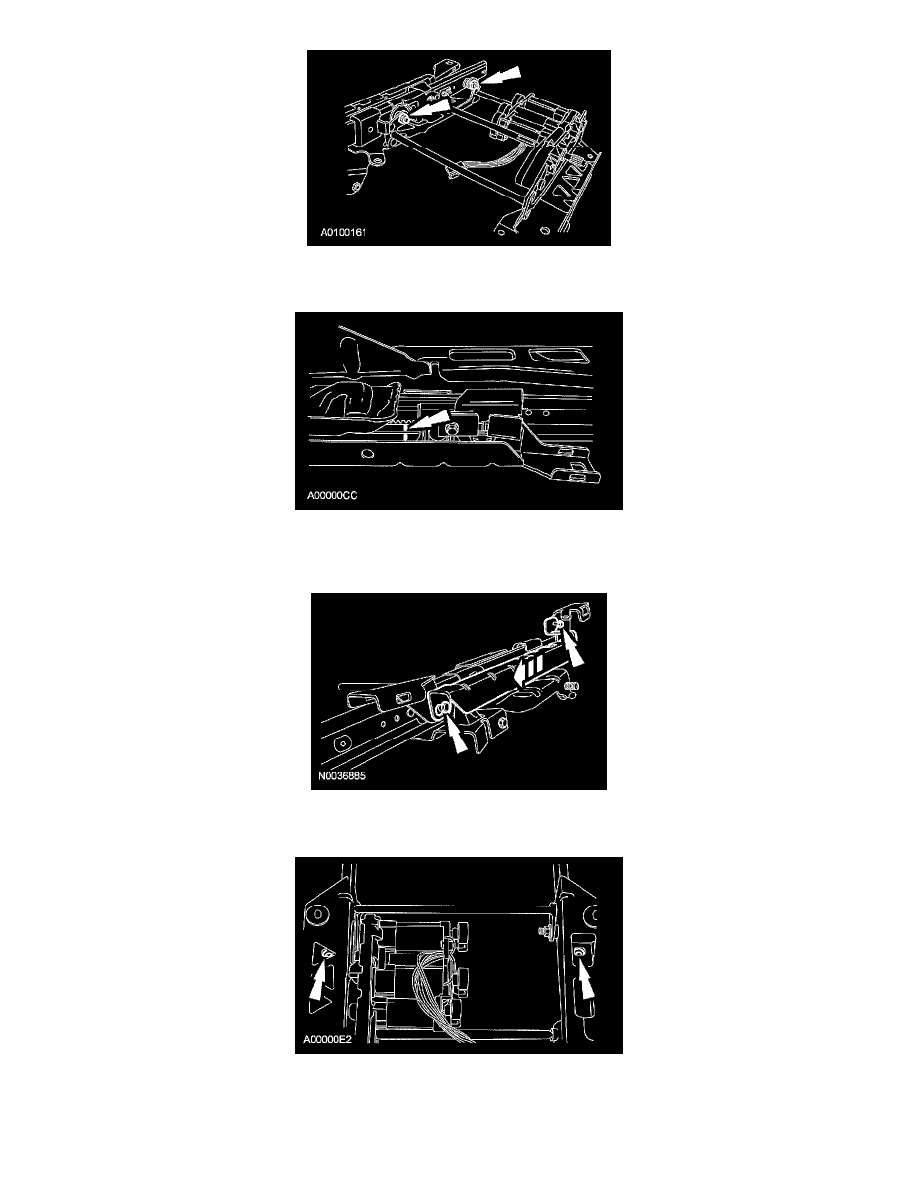

16. Install the 2 inboard seat track-to-upper support assembly lift link nuts.
-
Tighten to 27 Nm (20 lb-ft).
17. Check to make sure the index marks on the inboard track C-channel and plastic-coated slide are still in alignment.
-
The index marks on the inboard track C-channel and plastic-coated slide must align at this step. If the index marks do not match up, repeat
Steps 13 through 16.
18. Position the SRS seat position sensor magnet assembly onto the pivot, slide it back and install the bolt.
-
Tighten to 9 Nm (80 lb-in).
19. Position the seat track in the vehicle.
-
The left and right front mounting feet holes should align with the floor pan mounting holes, without pushing or pulling the seat track to force
alignment. Check the witness marks (indentations) in the carpet. The tracks should line up closely with them.
-
If the seat track does not align to the vehicle, check to make sure the index marks on the inboard and outboard track rails and guides are still in
