Town Car V8-4.6L VIN V Flex Fuel (2006)
Seat Track: Service and Repair
SEAT TRACK
Removal and Installation
WARNING:
-
Always wear safety glasses when repairing a supplemental restraint system (SRS) vehicle and when handling an air bag module. This will
reduce the risk of injury in the event of an accidental deployment.
-
After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is
irritating to the skin. Wash your hands with soap and water afterwards.
-
Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
-
To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
-
If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
-
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate
a supplemental restraint system (SRS) fault.
-
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All seat tracks
1. Position the seat to gain access to the fasteners.
2. Depower the SRS.
3. Remove the affected seat.
Driver seat track only

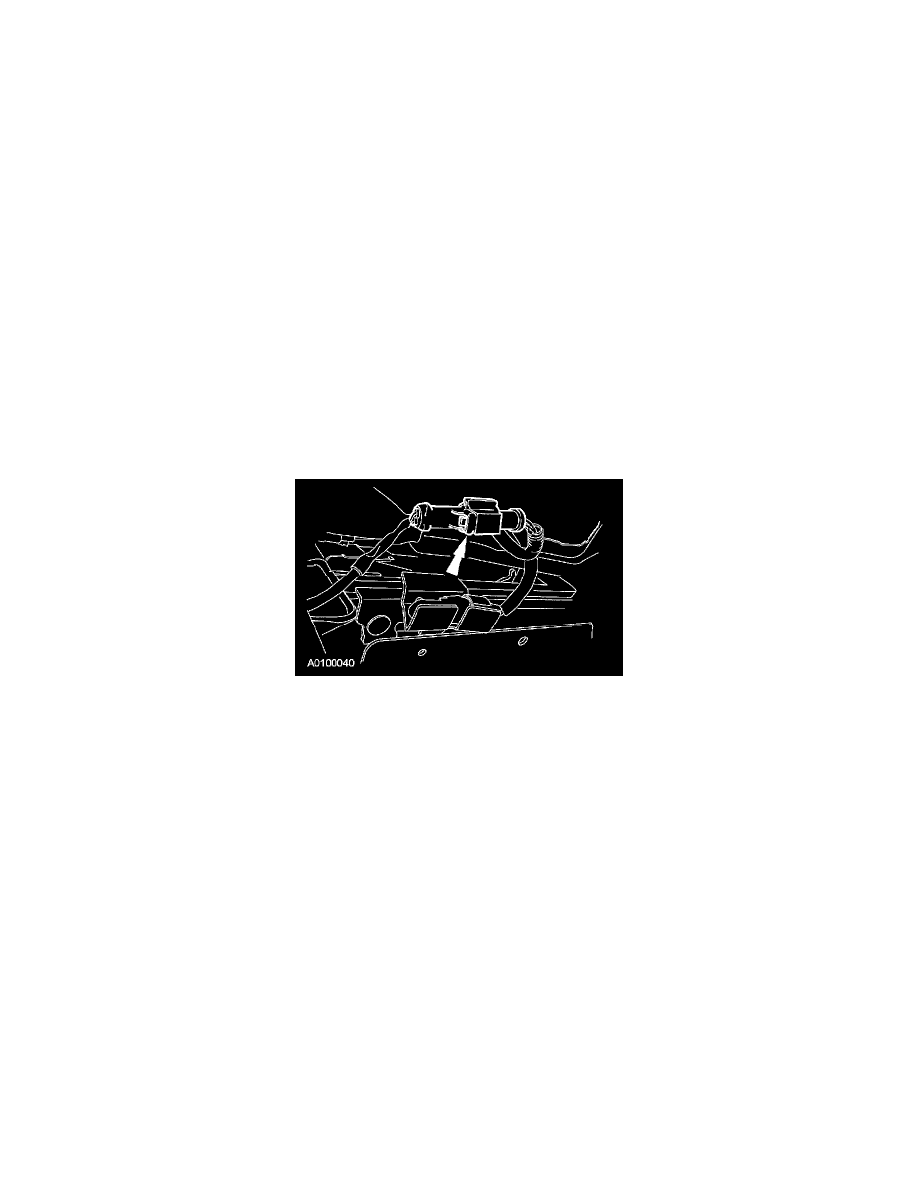

4. Disconnect the safety belt buckle switch electrical connector.
5. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.
Remove the nut and the safety belt buckle.
-
To install, tighten to 40 Nm (30 lb-ft).
Passenger seat track only
6. NOTE: At installation, make sure the safety belt buckle is accessible to the occupant.
Remove the safety belt buckle with belt tension sensor.
-
Disconnect the electrical connector.
-
Remove the nut and safety belt buckle with belt tension sensor.
-
To install, tighten to 40 Nm (30 lb-ft).
All seat tracks
