Town Car V8-4.6L VIN V Flex Fuel (2006)

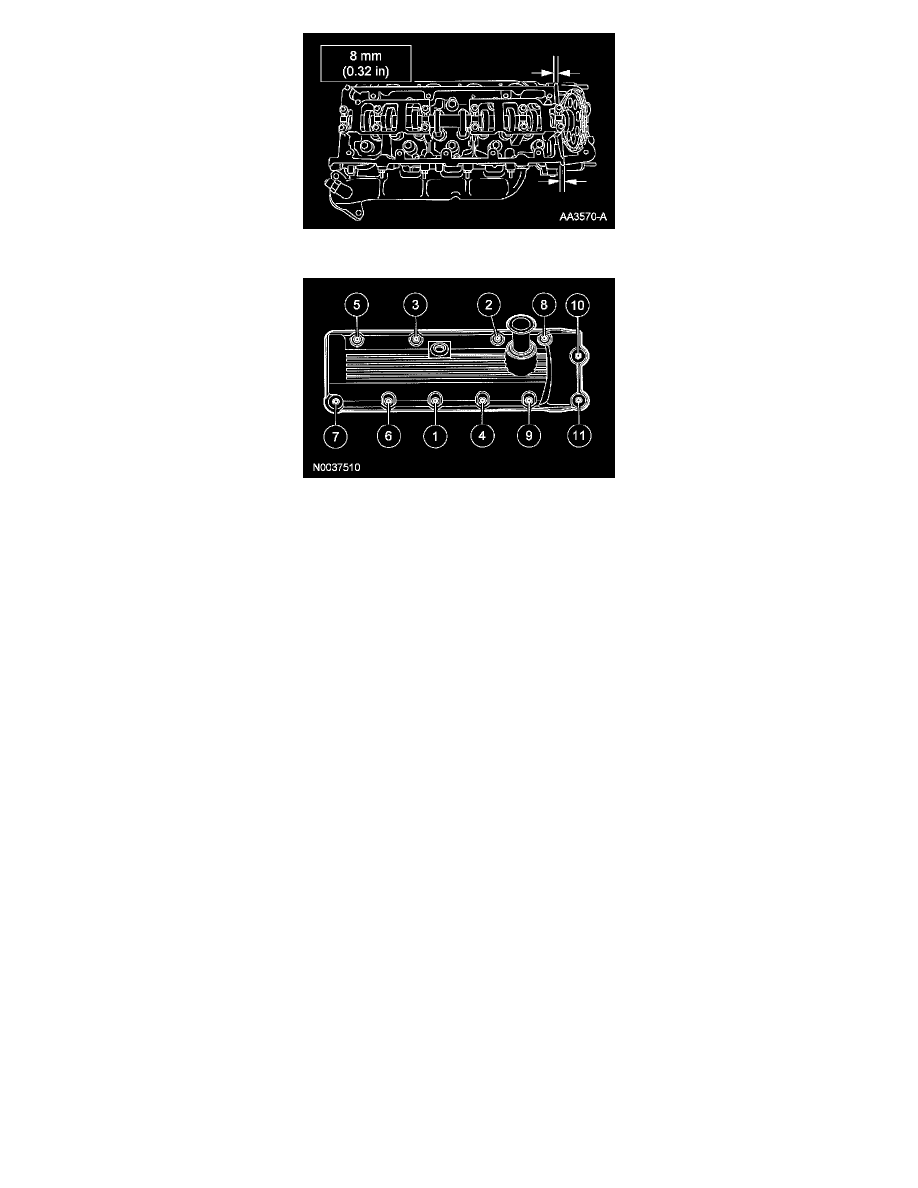

Apply sealant in the location shown.
2. Install a new valve cover gasket and the valve cover. Tighten the 7 studs and 3 bolts in the sequence shown to 10 Nm (89 inch lbs.).
3. Raise the engine.
4. Position wire harness and connect the 3 wire harness retainers to the valve cover.
5. Connect the 4 RH ignition coil electrical connectors.
6. Connect the PCV tube quick connect coupling to the PCV valve. For additional information, refer to Fuel Delivery and Air Induction.
7. Connect the A/C accumulator switch electrical connector.
8. Connect the 3 electronic engine control electrical connectors.
9. Connect the A/C pressure sensor electrical connector.
10. Connect the PCV valve electrical connector.
11. Connect the A/C compressor electrical connector.
12. Connect the CKP sensor electrical connector.
13. Install the EVAP canister purge valve. For additional information, refer to Evaporative Emissions System.
14. Install the LH engine mount.
15. Connect the fuel tube spring lock coupling. For additional information, refer to Fuel Delivery and Air Induction.
