Town Car V8-4.6L VIN V Flex Fuel (2006)
Canister Purge Control Valve: Service and Repair

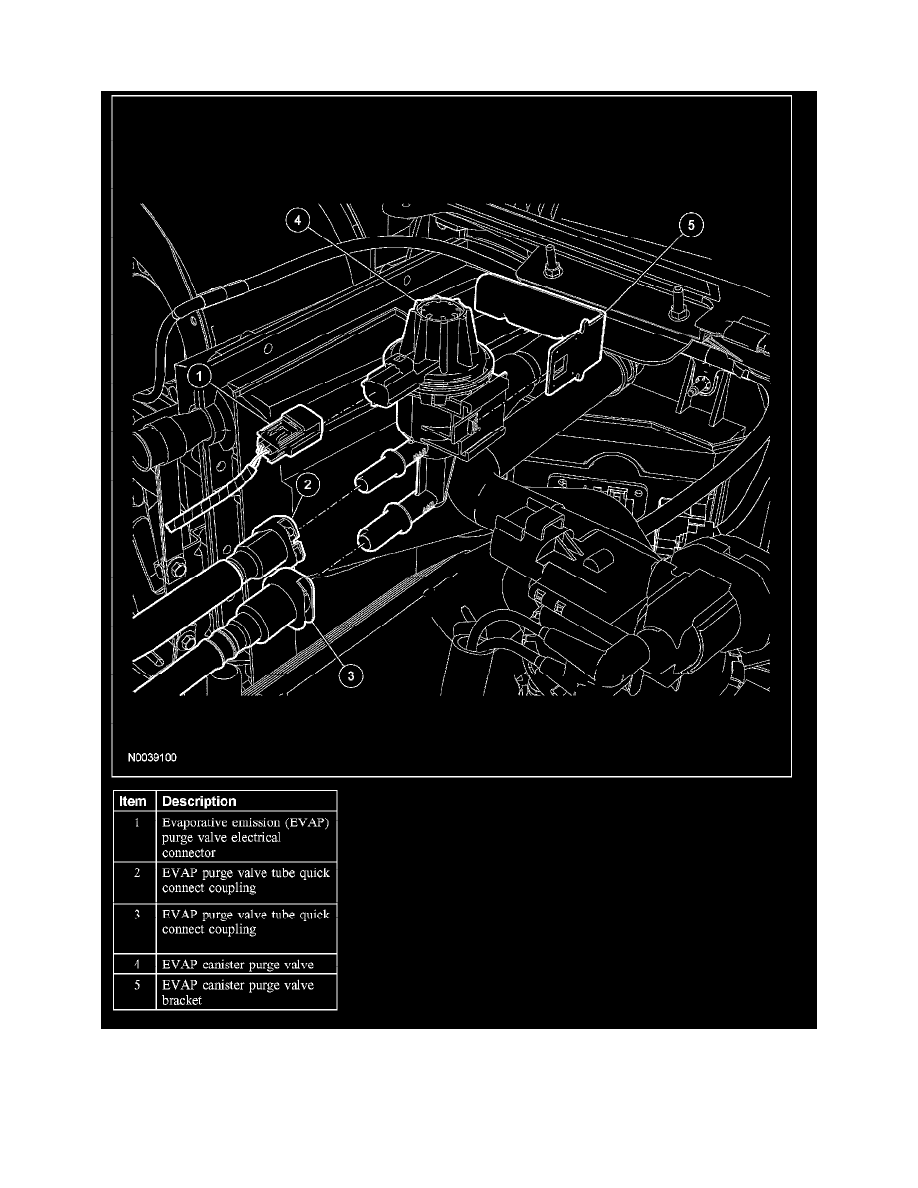

EVAPORATIVE EMISSION CANISTER PURGE VALVE
Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the evaporative emission (EVAP) purge valve electrical connector.
3. Disconnect the 2 EVAP tube quick connect couplings.
4. Remove the EVAP canister purge valve.
-
Depress the lock tab on the EVAP canister purge valve and release it from the bracket.
