Town Car V8-4.6L VIN V Flex Fuel (2006)
Suspension Spring ( Coil / Leaf ): Service and Repair
Removal and Installation

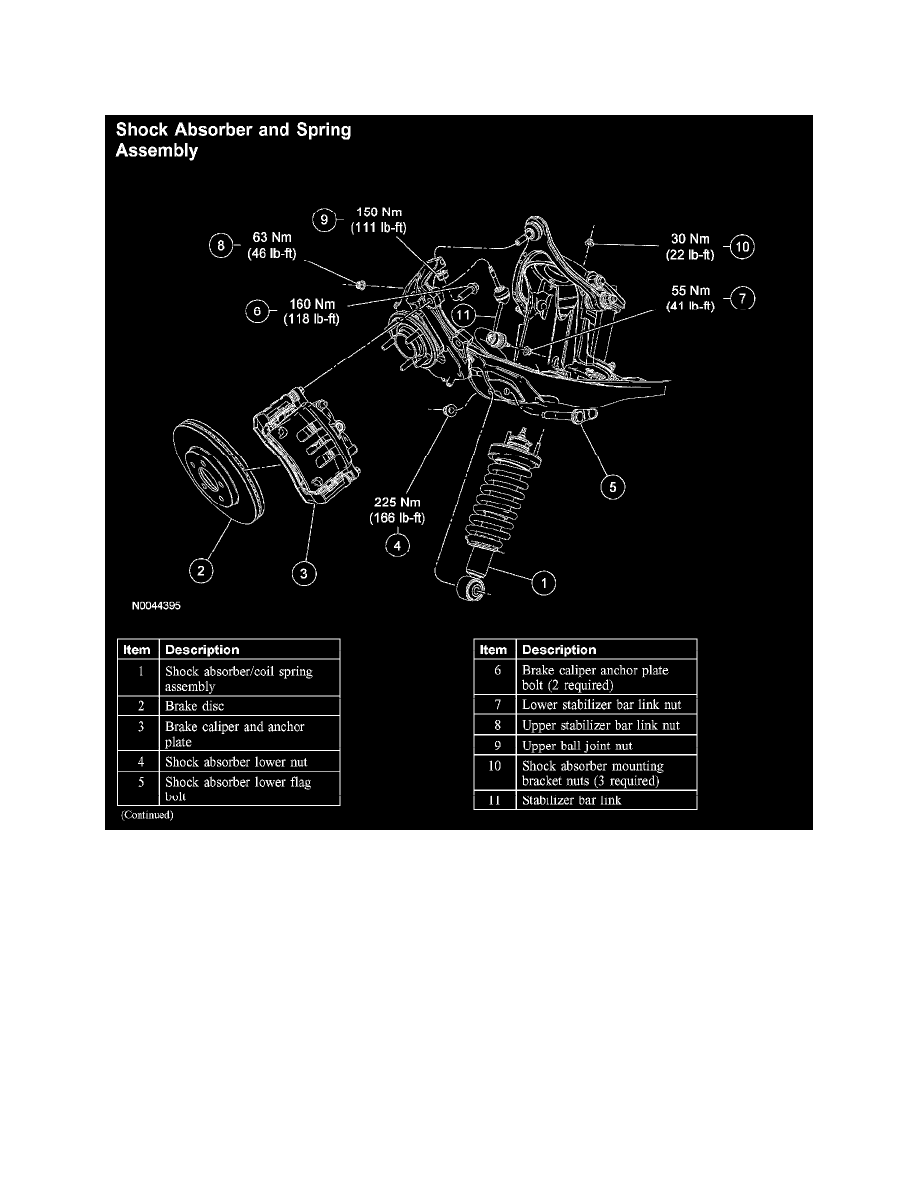

Shock Absorber and Spring Assembly
Shock Absorber and Spring Assembly
Removal and Installation
CAUTION: Suspension fasteners are critical parts because they effect performance of vital components and systems and their failure can result in
major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of
lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
1. WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension
vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during
these operations. Failure to follow these instructions may result in personal injury.
Turn the air suspension service switch to the OFF position.
2. With the vehicle in NEUTRAL, position it on a hoist.
3. WARNING: Do not remove the center nut. This nut holds the upper spring mount in place, if this nut is removed the spring tension will
be released. Failure to follow these instructions may result in personal injury.
