Page 4
background image

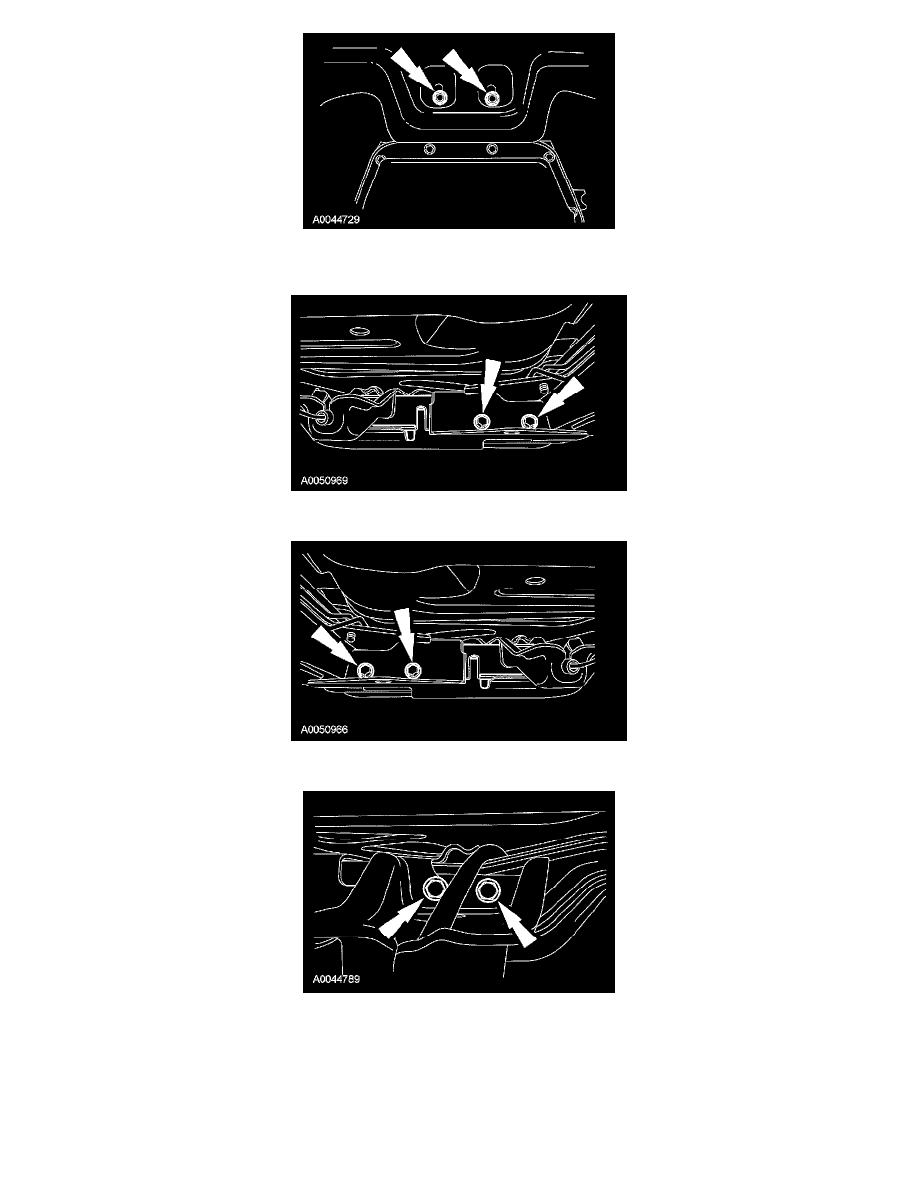

10. Remove the rear transmission insulator nuts.
11. Install a suitable transmission Jack.

12. Remove the RH side crossmember bolts.

13. Remove the LH side crossmember bolts.

14. Remove the bolts and remove the parking brake cable bracket and position aside.

15. NOTE:  The crossmember is a press fit in the crossmember pocket, it may be necessary to pry the crossmember out of the crossmember pocket.

Be careful not to damage the crossmember.
