Town Car V8-4.6L VIN V Flex Fuel (2006)
Front Door Window Motor: Service and Repair
Front Door Window Regulator and Motor
FRONT DOOR WINDOW REGULATOR AND MOTOR

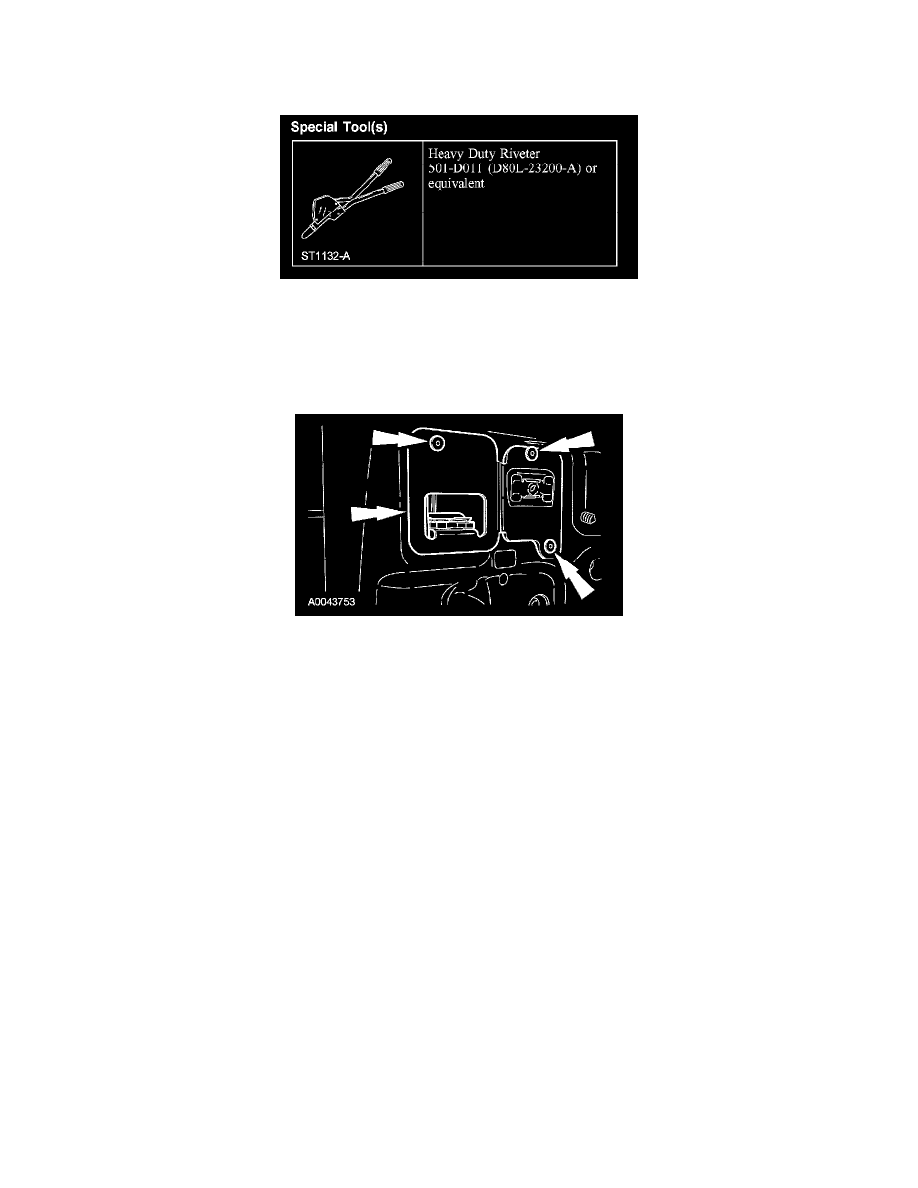

Special Tool(s)
Special Tool(s)
Removal and Installation
1. Remove the front door window glass.
2. Remove the rivets and the front door latch remote control.
-
Disconnect the actuator rod.
3. Disconnect the front door window regulator motor electrical connector.
4. Remove the 2 front door window regulator nuts.
-
To install, tighten to 12 Nm (9 lb-in).
5. Remove the 5 front door window regulator and motor rivets.
6. Remove the front door window regulator and motor.
7. To install, reverse the removal procedure.
-
sing the special tool, install the rivets.
