190E 2.3 (201.028) L4-2.3L (102.985) (1987)
/l4-2.3l_(102.985)/Page-1714007.png)
Note: Flexible coupling remains on propeller shaft.
Installation note: Renew self-locking hex. nuts, tightening torque 45 Nm.

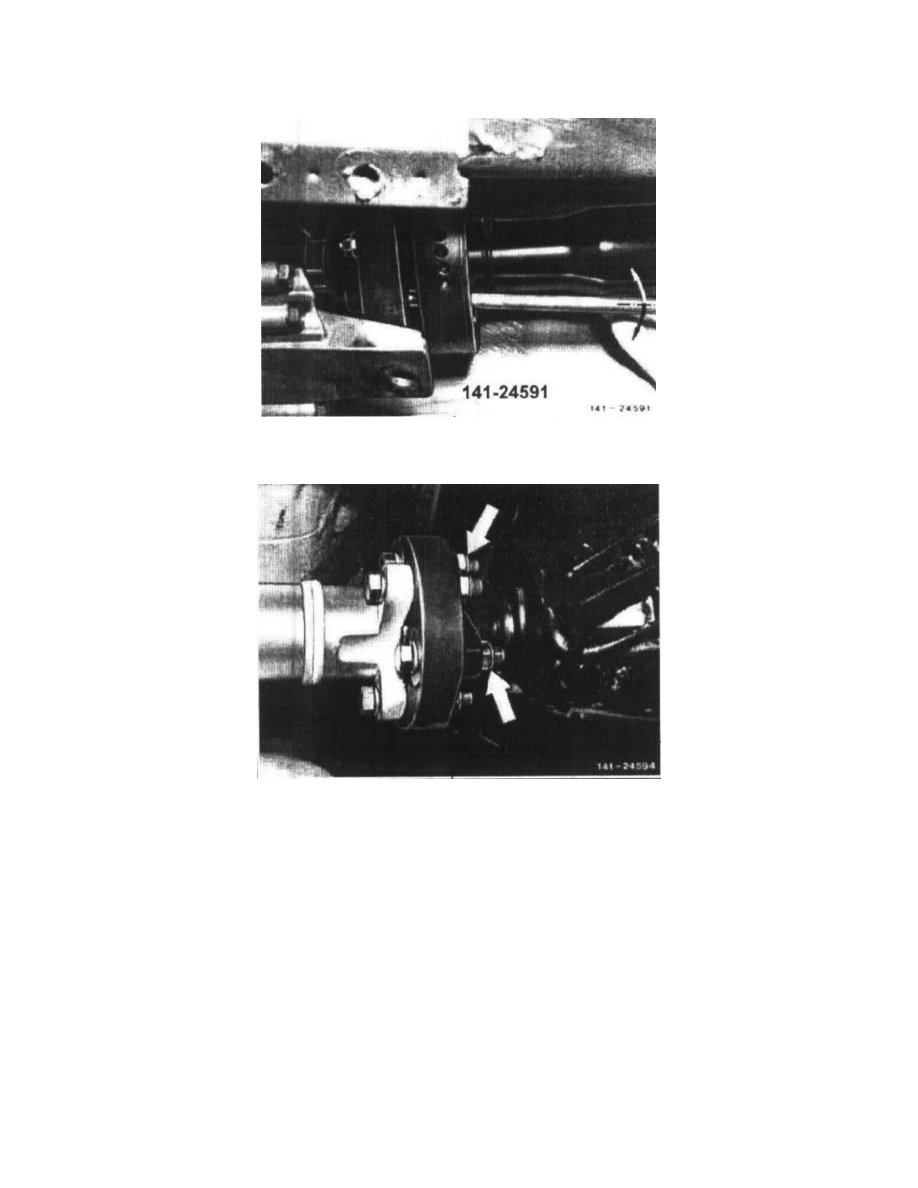

8 Prior to sliding back propeller shaft, loosen fitted sleeves of soft pull-push flexible coupling installed on transmission end by means of a mandrel
in the joint flange. For this purpose, use a cylindrical mandrel of 10 mm dia. and approx. 8150 mm in length.
9 Remove propeller shaft from rear axle.
Note: Flexible coupling remains on propeller shaft.
Installation note: Renew self-locking hex. nuts (arrows), tightening torque 45 Nm.
