190E 2.3 (201.028) L4-2.3L (102.985) (1987)
/l4-2.3l_(102.985)/Page-1714011.png)

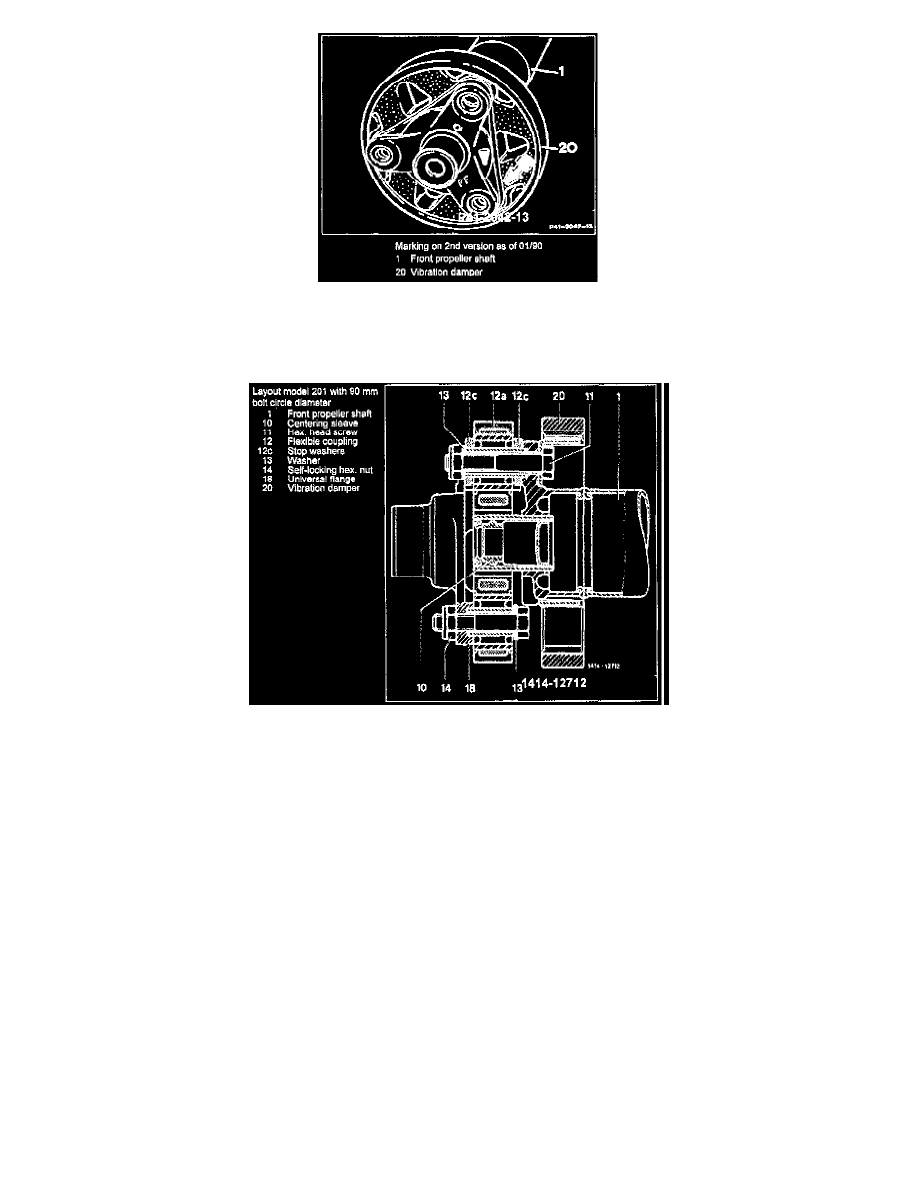

14 Model 201 with a bolt circle diameter of 90 mm.
The installation position is correct when the arrow of vibration damper (20) is pointing toward hump on three-legged flange.
15 With bronze bushing, grease cavities of both centering sleeves with Molykote grease and use multi-purpose grease with multi-component bearing
bushings (filling capacity per sleeve approx. 6 g).
16 For installation proceed vice versa.
