300CD (123.153) L5-3.0L DSL Turbo (617.952) (1982)
23

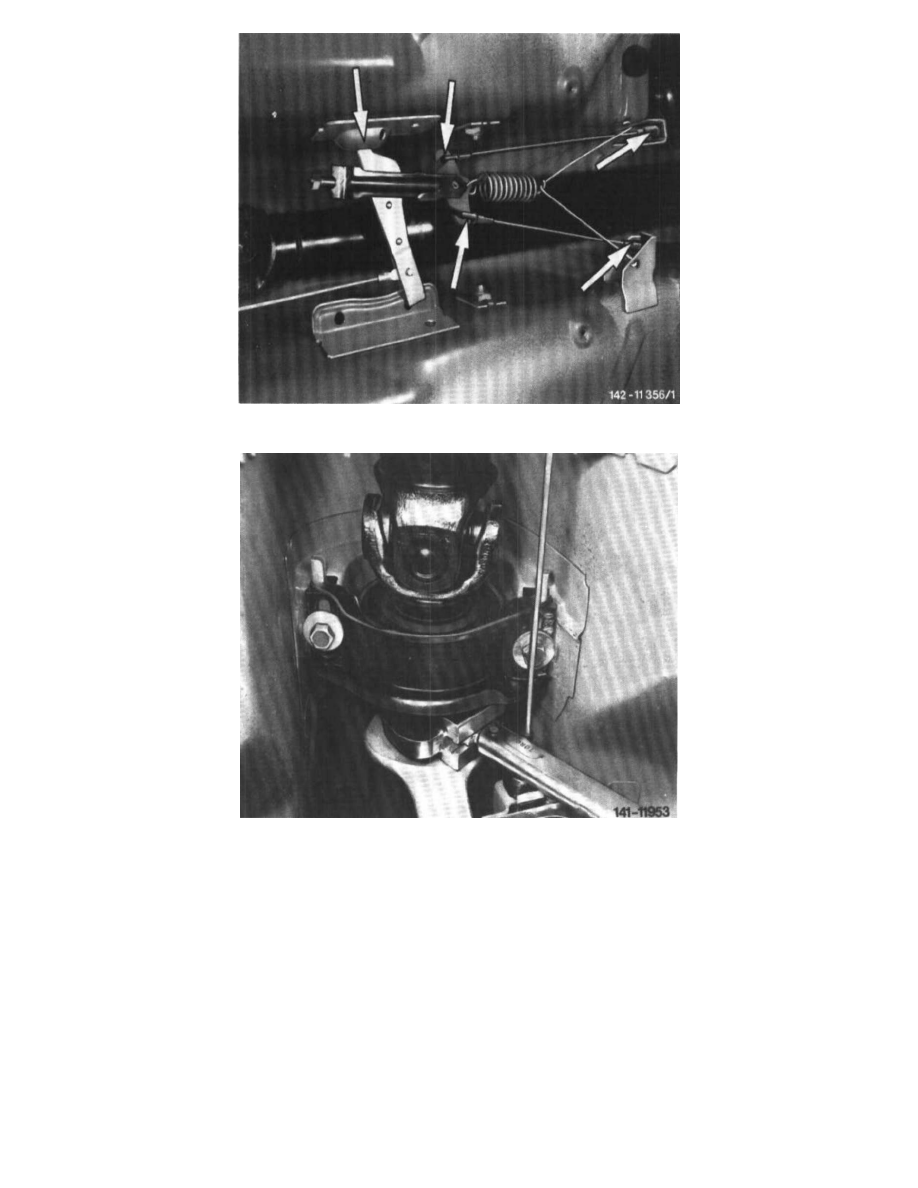

Attach cable controls and compensating lever of parking brake and adjust.
24
Tighten clamping nut on propeller shaft. Watch out for good seat of sleeve. Tightening torque of clamping nut on 2-piece propeller shaft 30-40
Nm and on 3-piece propeller shaft front 30-40 Nm, at rear 200 Nm.
Note: Prior to tightening clamping nuts on intermediate shaft of 3-piece propeller shaft, make sure that the intermediate shaft is not knocking
against front or rear propeller shaft intermediate bearing. This means that at its end the intermediate shaft should have approx. the same distance in
relation to pertinent intermediate bearing.
