Air Door Actuator / Motor: Locations
Vacuum Element For Center Nozzle Flap

Ceter Nozzle Flap Vacuum Element

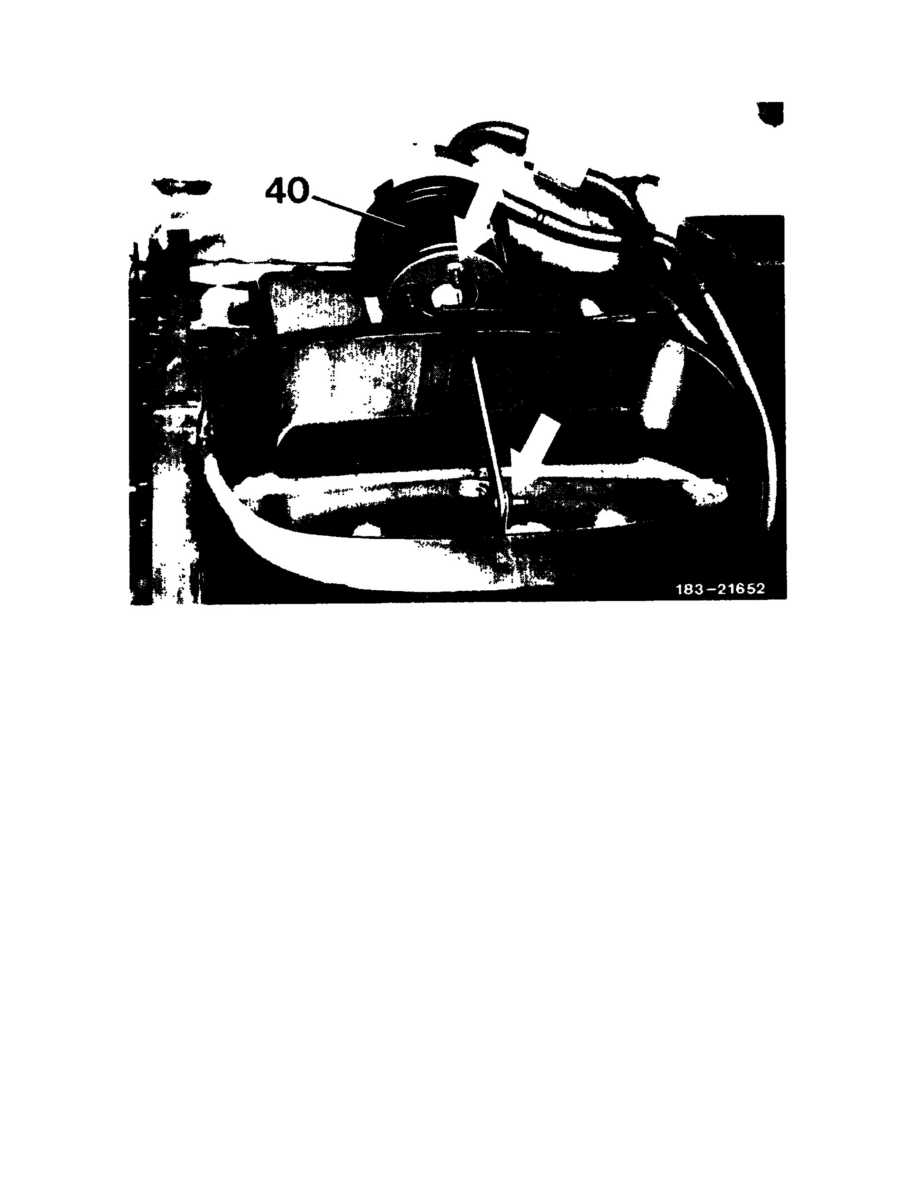

The center nozzle flap (40) is located on top center of heater box.
